Xerox 3600DN - Phaser B/W Laser Printer Update

How to upgrade by using the firmware upgrade utility
Hide thumbs


Advertisement

How to upgrade by using the firmware upgrade utility
1. Connect USB cable to both the printer and PC.
2. Download the firmware file (w/bundled extraction utility) from Xerox support web site to
your PC.

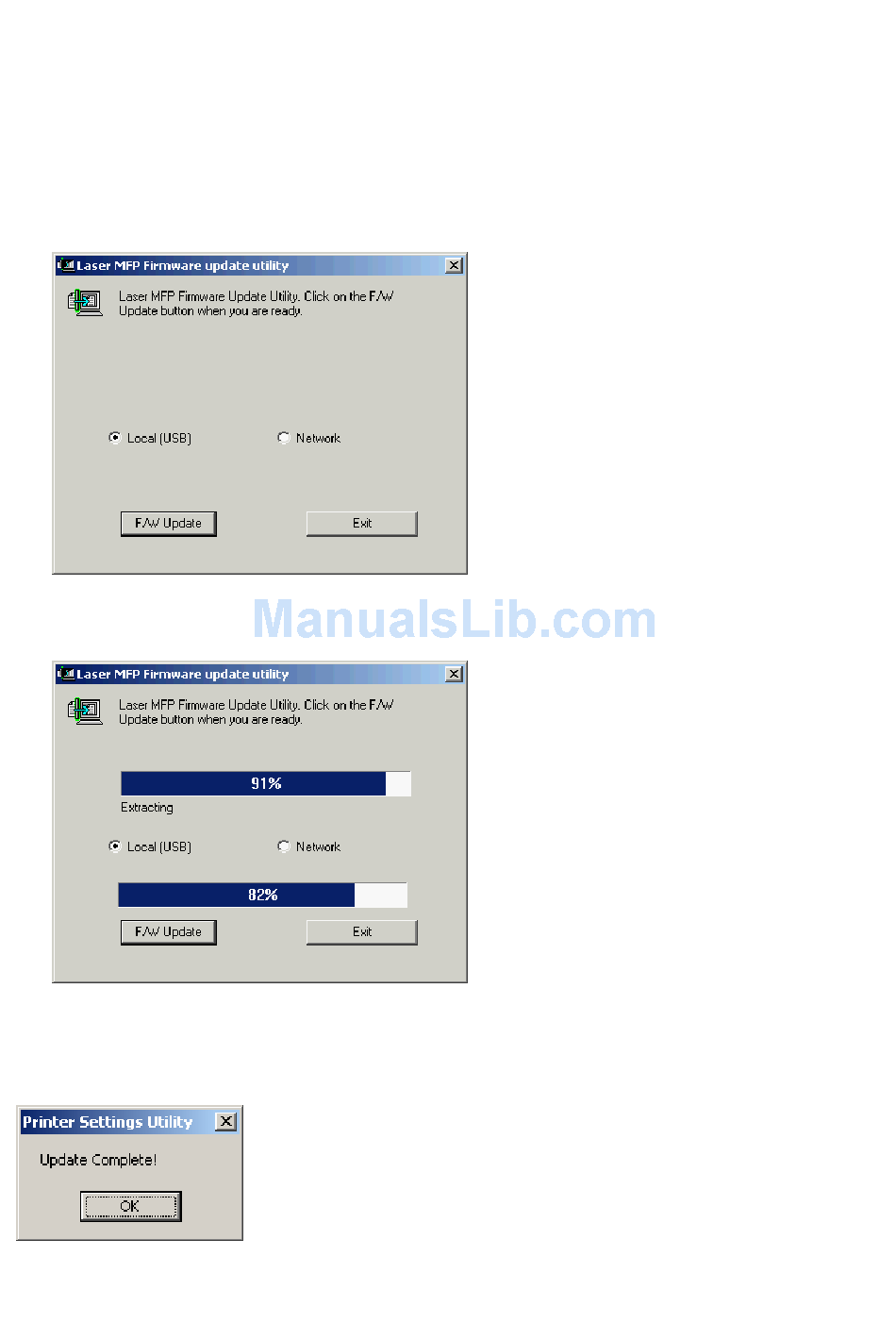

3. Double-click the upgrade utility (*.exe) and then the following message appears.
Note:
Only USB upgrades are supported with this tool, not Network. Use CentreWare IS
for network upgrades.
4. Select Local(USB) and Click F/W Update.
5. Machine LCD will Display "FLASH UPGRADE..." message for about 1 minute.
6. Machine LCD will then Display below message for about 5 minutes.
Update Image
Please Wait...
7. Select OK on screen to close this window. Wait till machine reboots automatically.
