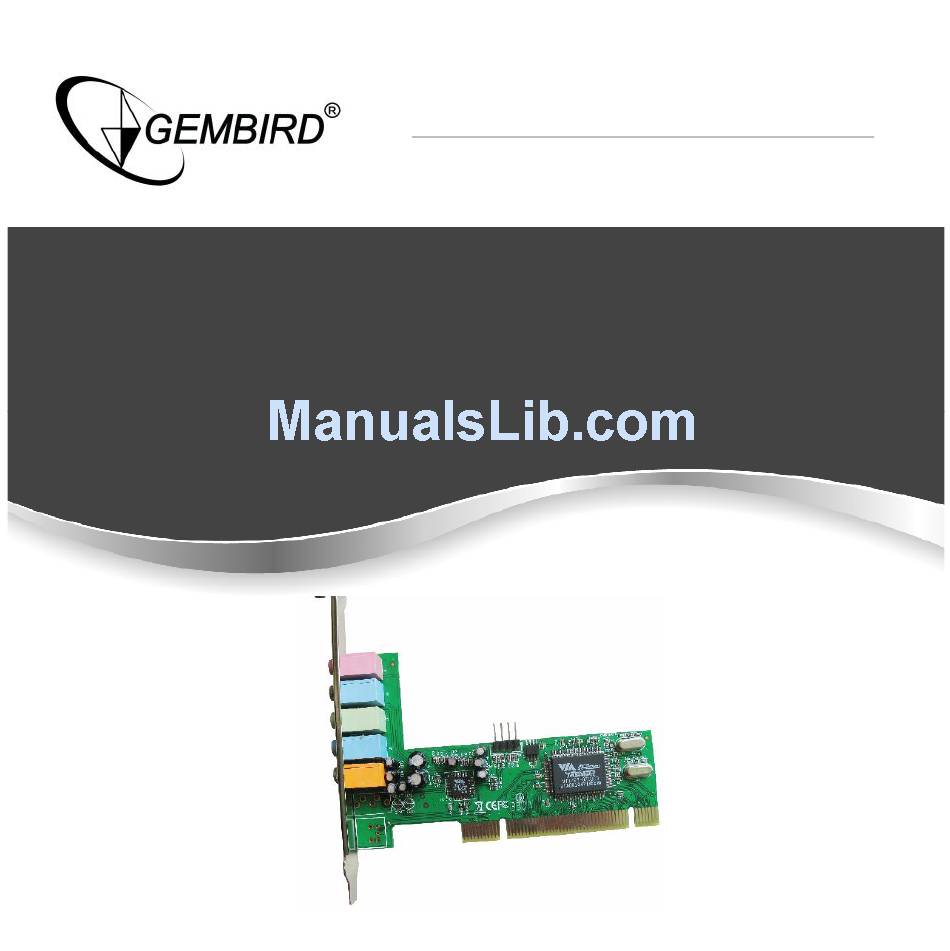

- Page 1 5.1 channels sound card SC-5.1-1 5.1 channels sound card...
- Page 2 No part of this manual may be reproduced, transmitted or translated in any language in any form, by any means, without the prior written permission of Gembird Electronics Ltd. Gembird Electronics makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the product, the software, personal computers or peripheral devices.
- Page 3 5.1 channels sound card SC-5.1-1 User manual Introduction Thank you for buying the Gembird® 5.1 channels sound card! This manual will help you install and use it properly. Features 2/4/6 channel speakers mode. Supports 2/2.1/4/4.1/5.1 speakers Full-duplex playback and recording...
-
Page 4: Specifications
5.1 channels sound card Specifications Supports 6 channel output Fully compliant with AC97 Revision 2.3 Superior audio fidelity Independent 20 bit ADC and 20 bit DAC Provide 96K/20 bit Multi-channel analog output High quality headphone amplifier Enhanced microphone input sensitivity 4-bit 3D depth control Channel swapping Supports EAPD control... -
Page 5: System Requirements
5.1 channels sound card System requirements Windows® 98SE/ME/2000/XP/Vista DirectX 8.1 or above Sound card layout... - Page 6 5.1 channels sound card The rear panel of card has the following jacks: Mic In Line In Line Out Surr Out CEN/LFE J10 Analog CD|IN Port (Signals: L-G-G-R)
- Page 7 5.1 channels sound card Installation Locate an available PCI slot on your computer, and insert the 6 Channel Sound Card into the slot. Fasten the card to the case using a screw Start your PC. Windows® will detect the Sound Card, find a “PCI Multimedia Audio Device”...
