Insignia NS-42E440A13 Quick Setup Manual

42"1080p LED TV

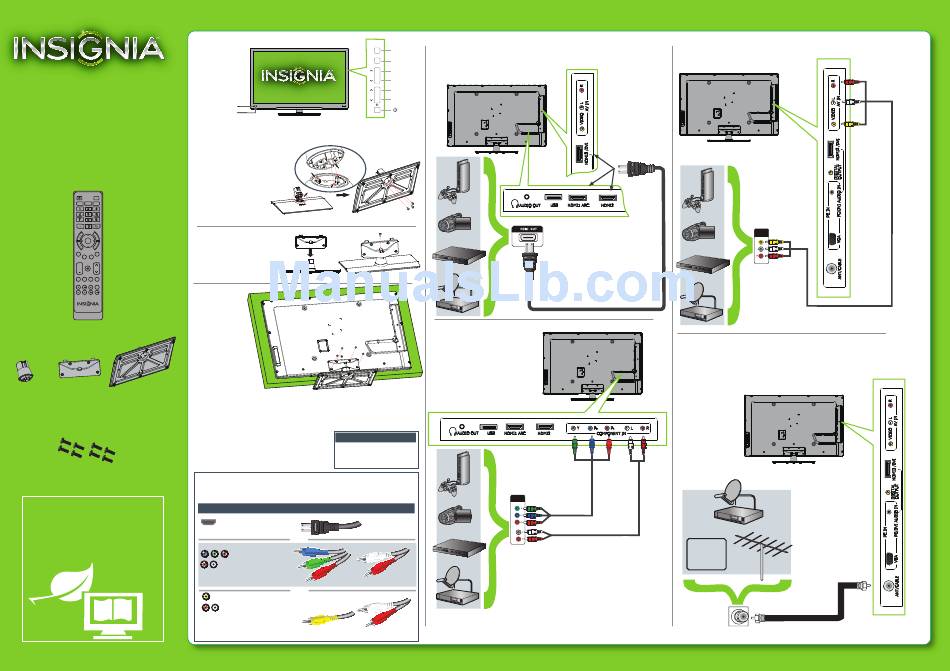

QUICK SETUP GUIDE
NS-42E440A13
Thank You
for purchasing this fine Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
TV
VIDE HDMI ACC
ENTER
INPUT CCD
CH-LIST FAVORITE
+
MUTE
VOL CH
SLEEP ZOOM MTS/SAP PICTURE
AUDIO
Remote control
and 2 AAA
NS-RC03A-13
batteries
Stand column Stand cover Base plate
M5 (12mm) screws (8)
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search field,
then click Search.
Front features
MENU
INPUT
VOL
CH
Power indicator
Remote sensor
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen
from damages and scratches.
2 Align the front of the stand column
with the front of the base, then insert
the stand column into the base
making sure that the groove in the
stand column aligns with the ridge in Groove
Ridge
the base. Secure the stand column to
the base with three M5 x 12 mm
screws (provided).
Stand cover
3 Align the stand cover with the
stand column, then secure the
stand cover to the stand column
with one M5 x 12 mm screw
(provided). Make sure that the
bottom of the stand cover is flush
Stand column
against the top of the stand
column.
Back View
4 Secure the stand
cover to the TV
screen using four
M5 x 12 mm screws
(provided).
Installing a wall-mount bracket
1
Carefully place your TV screen face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
Warning
2
Attach the wall-mount bracket to your TV using the mounting
This apparatus is intended to be
holes on the back of your TV. See the instructions that came
supported by a UL Listed
with the wall-mount bracket for information about how to
wall-mount bracket.
correctly hang your TV.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Cable connector
Video quality
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 3/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
MENU
satellite receiver, camcorder, or game station
INPUT
VOL V Using an HDMI cable (best)
VOL V
CH V
CH V
Note: Cable is not provided.
Using component cables (better)
AUDIO/VIDEO
OUT
Note: Cables are not provided.
Using a composite cable (good)
AUDIO/VIDEO
OUT
Note: Cable is not provided.
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE jack on the back
side of your TV and to the antenna/cable wall jack.
CABLE
Note: Cable is not provided.
