Insignia NS-42E470A13A Quick Setup Manual

42" 1080p LED HDTV

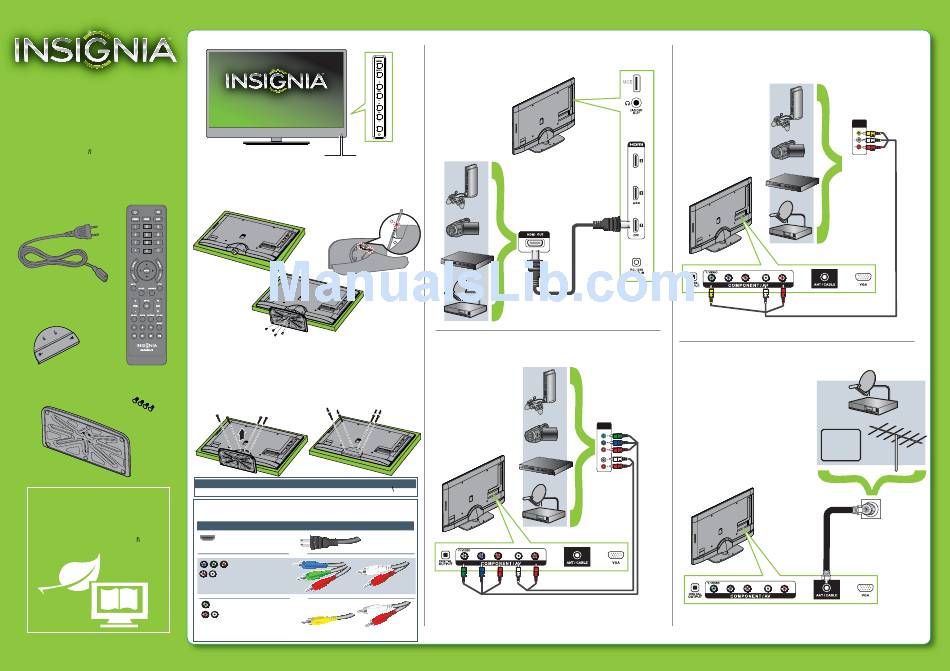

QUICK SETUP GUIDE
NS-42E470A13A
Thank You
for purchasing this ne Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
Power cord
Stand cover
Remote control
and 2 AAA
batteries
M4 (12 mm) screws (4)
TV stand
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search eld,
then click Search.
Front features
Power Remote
indicator control sensor
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Hook the slot in the base onto the tab on the stand column (A), then push the base into place (B).
3 Secure the base to the stand column with the four short screws (provided).
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the stand column to the TV screen, then
remove the stand.
3 Secure the stand cover to the back of the TV screen using the four screws you just
removed.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of your
TV. See the instructions that came with the wall-mount bracket for information about
how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type
Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 1/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
A
B
Note: Cable is not provided.
Using component cables (better)
Y / VIDEO
P P L R
B R
Note: Cables are not provided.
Using a composite cable (good)
Y / VIDEO
P P L
B R
Connect
the yellow
connector to the
green Y/VIDEO jack.
Connecting to an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the
back of your TV and to the Antenna/Cable wall jack.
COMPONENT
OUT
Y / VIDEO
P P L
B R
Note: Cable is not provided.
AUDIO/VIDEO
OUT
Video
R
Note: Cable is not provided.
CABLE
R
