Edelbrock Torker 2930 Installation Instructions

PLEASE study these instructions carefully before beginning this installation. Most installations can be accomplished with common tools and
procedures. However, you should be familiar with and comfortable working on your vehicle. If you do not feel comfortable performing this
installation, it is recommended to have the installation completed by a qualified mechanic. If you have any questions, please call our Technical
Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday.
Improper installation may result in poor performance and engine or vehicle damage.

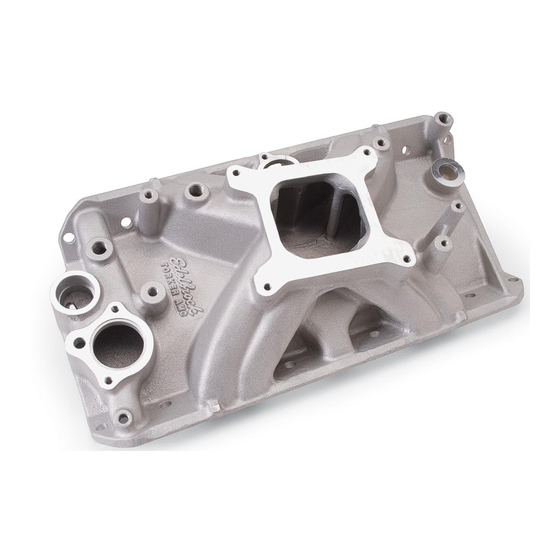

DESCRIPTION: The Torker AMC intake manifold is designed for 1970 and later 343-360-390-401 C.I.D. AMC V8 engines. It is recommended for
street high performance, and race vehicles only. The Torker manifold is of single-plane design, utilizing modern air-flow technology. It is designed
to operate in the 2500-6500 rpm range, providing good low rpm response plus increased performance above 5000 rpm. Additional increases in
performance can be had when using this intake manifold with additional performance parts designed to operate within the listed rpm range.
Manifold will not accept factory Motorcraft spread-bore carburetors.
• KIT CONTENTS:
❑ 6
#8 x 3/8" Drive Screws
❑ 4
3/8-16 x 1-1/4" Hex Bolts
❑ 1
Shoulder Stud (Kickdown Stud)
❑ 1
Cotter Pin
• EGR SYSTEMS: Intake manifold will not accept stock EGR (Exhaust Gas Recirculation) equipment. EGR systems are used on most 1972 and
later model vehicles. Check local laws for requirements.
• ACCESSORIES & INSTALLATION ITEMS: Major recommendations are listed below. See our catalog for details. To order a catalog, call
(800) FUN-TEAM, or visit www.edelbrock.com.
• CARBURETOR RECOMMENDATIONS:
CARBURETOR
Performer #1407 (750 cfm)
Performer #1412 (800 cfm)
Performer #1413 (800 cfm)
Thunder Series #1812 (800 cfm)
Thunder Series #1813 (800 cfm)
NOTE: See catalog for carburetor reference details.
• GASKETS: Do not use competition-style intake gaskets for this street manifold. Due to material deterioration over time, internal leakage of
vacuum, oil, and coolant may occur.
INTAKE MANIFOLD
2930
NOTE: To ensure maximum performance and a proper seal, Edelbrock gaskets which are
specifically designed and manufactured for use with Edelbrock parts must be used.
Part #2930
Rev. 6/11- AJ/mc
IMPORTANT NOTE: Proper installation is the responsibility of the installer.
REFERENCE
A, I, K, N, O
A, I, K, N, O
A, I, K, N
A, I, K, N
A, I, K, N
REFERENCE
(None)
For 1970 and Later AMC 343-401 C.I.D. Engines
❑ 1
Shoulder Stud Sleeve
❑ 1
10-32 x 1/2" Hex Cap Screw
❑ 1
1/4 Star Washer
PARTS REQUIRED FOR INSTALLATION
#8034 Throttle Bracket Extention (If originally 2bbl carb)
#8034 Throttle Bracket Extention (If originally 2bbl carb)
#8034 Throttle Bracket Extention (If originally 2bbl carb)
#8034 Throttle Bracket Extention (If originally 2bbl carb)
#8034 Throttle Bracket Extention (If originally 2bbl carb)
RECOMMENDED GASKET
Edelbrock #7213 Port: 1.130" x 2.210", .060" Thickness
Page 1 of 3
TORKER AMC INTAKE MANIFOLD

INSTALLATION INSTRUCTIONS

Part #2930
©2011 Edelbrock LLC
Brochure #63-0464
