Edelbrock Nitrous Systems 71831 Owner's Manual

Please read both your DIRECT PORT OWNER'S MANUAL and this JET MAP INSERT before installing your Edelbrock Nitrous
System. If you have any questions or comments, please contact our Technical Hotline at: 1-800-416-8628 from 7am - 5pm, Monday
through Friday, Pacific Standard Time or e-mail us at Edelbrock@Edelbrock.com. Please fill out and mail your warranty card.
Proper installation is the responsibility of the installer. Improper installation will void warranty and may result in poor
Qty. Description
❑ 2
Victor Pro Nitrous Solenoid
❑ 2
Victor Pro Fuel Solenoid
❑ 8
Edelbrock E1 Nozzles
❑ 16
3/16" Tubing
❑ 16
Tube Sleeves
❑ 8
Blue Tube Nuts
❑ 2
1/8" Male Pipe Nipples
The horsepower gains listed above in the jep map are approximate gains. Depending on engine configuration and tuning, your gains may
be slightly different. The jet map is based on a nitrous system with a flowing fuel pressure of 6½ - 7 PSI. Any variations different than
6½ - 7 PSI will change your jet map and potentially damage your engine. We highly recommend using the Edelbrock Flow Test Tool
(P/N 76506) to set your flowing fuel pressure.
NOTE: When using the high horsepower settings with a direct port system, many variables come into play when setting proper timing
retard, such as timing with your previous horsepower settings, cylinder head configuration, compression ratio, tune-up, etc. We recom-
mend consulting your engine builder to determine proper timing retard before using these settings.
Edelbrock Corporation
Catalog #71831
Brochure #63-0409
IMPORTANT NOTE:
performance and engine or vehicle damage.

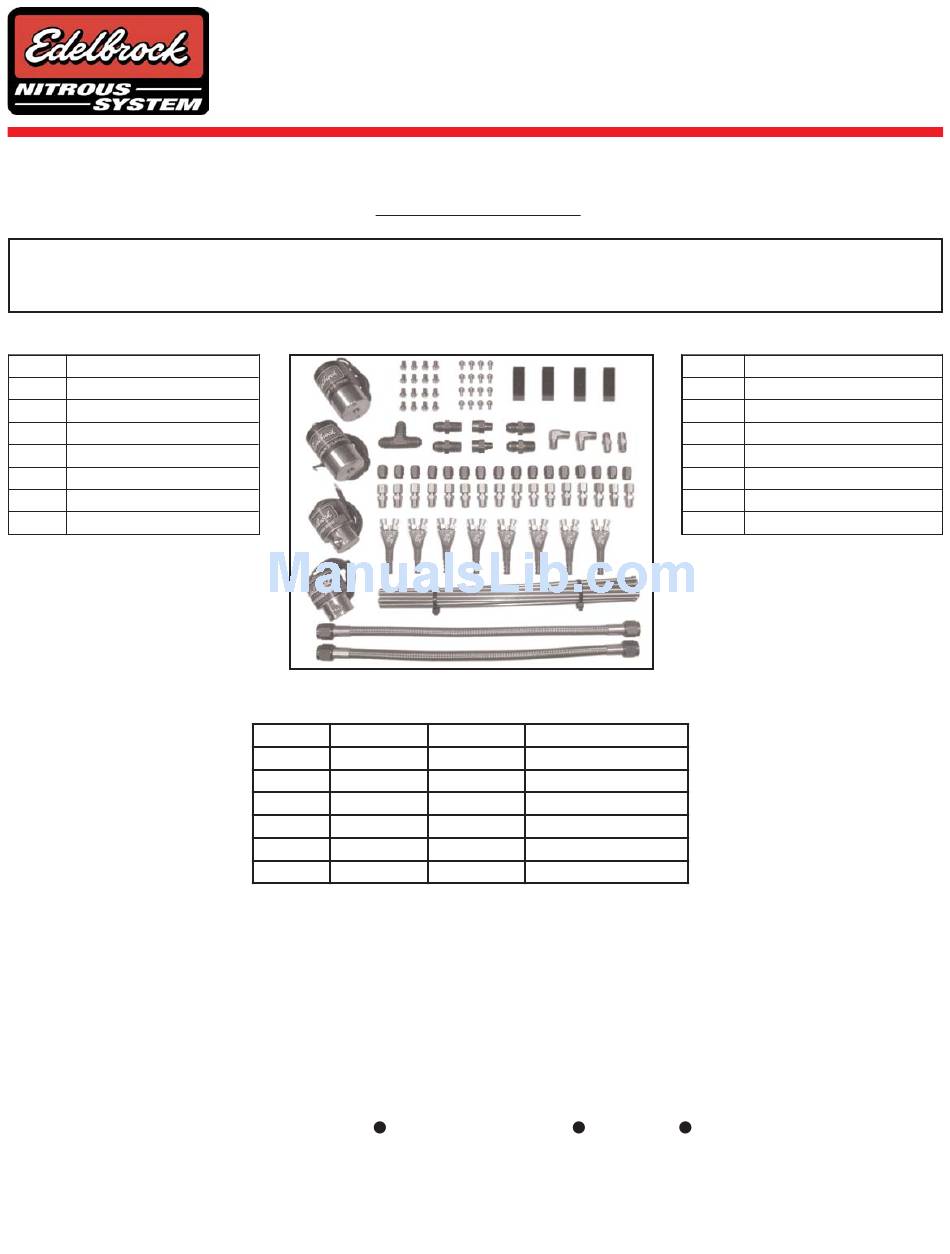

BILL OF MATERIALS (Excluding Electrical)
Jet Map
HP Gain Nitrous Jet
200 HP 24
250 HP 28
300 HP 32
350+ HP 36
400+ HP 40
500+ HP 44
2700 California St.
Tech Line: 800-416-8628
E-mail: Edelbrock@Edelbrock.com
Super Victor V8 Direct Port with E1 Jet Map
Fuel Jet Sugg. Timing Retard
20 5° - 9° Retard
24 6° - 10° Retard
28 7° - 11° Retard
32 *See Note
36 *See Note
40 *See Note
Torrance
Edelbrock Nitrous Systems
Catalog #71831
OWNER'S MANUAL
Qty. Description
❑ 8
Red Tube Nuts
❑ 16
Compression Fittings
❑ 4
Distribution Blocks
❑ 2
90° Union Fittings
❑ 2
6AN Nitrous Filter Fitting
❑ 2
6AN Red Filter Fitting
❑ 56
Various Jets
CA 90503
©2006 Edelbrock Corporation
Rev. 05/06 - DC/mc
