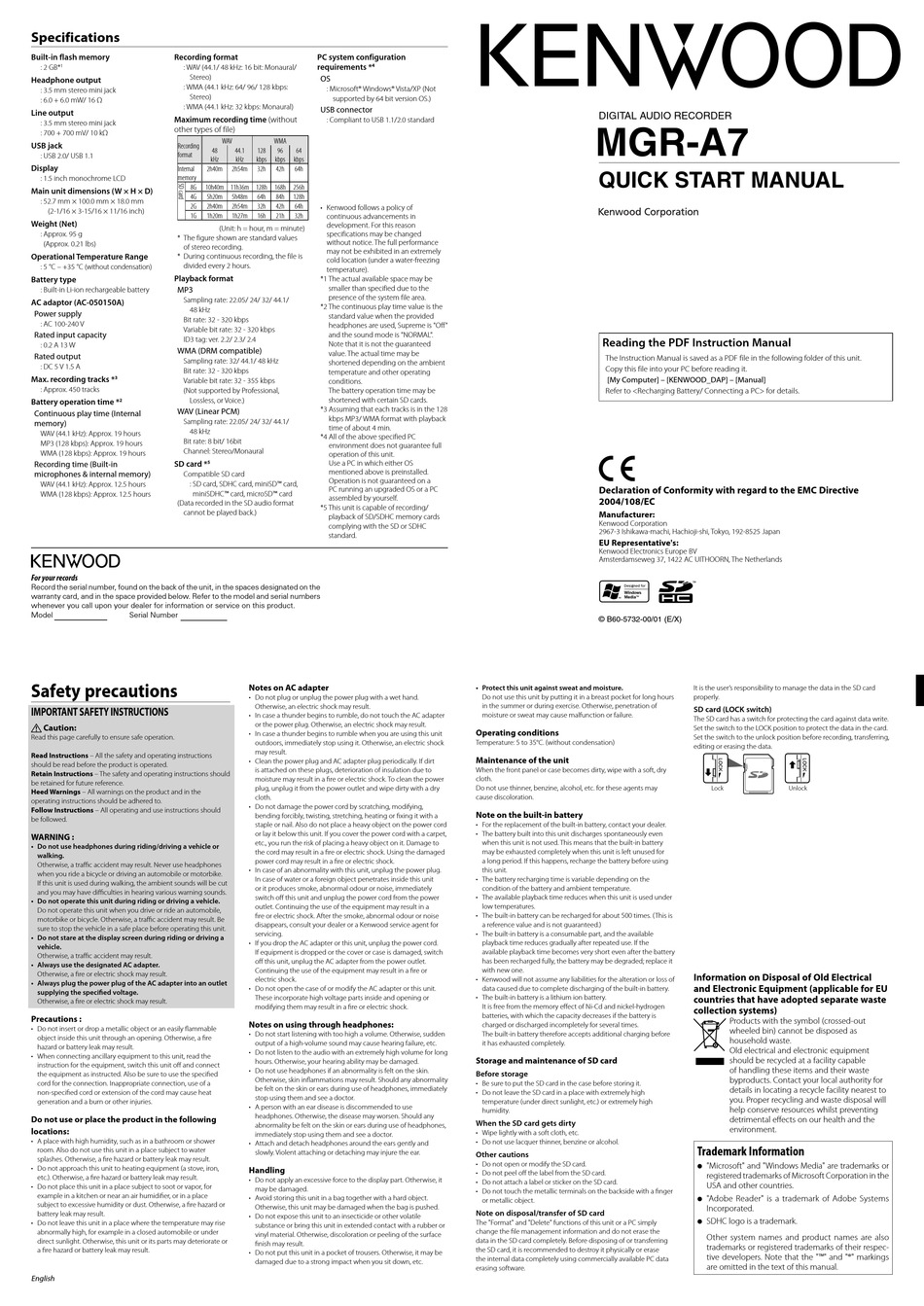

Kenwood MGR-A7 Quick Start Manual

Digital audio recorder
Hide thumbs

Advertisement

Specifications

Built-in flash memory
Recording format
: 2 GB*
1
: WAV (44.1/ 48 kHz: 16 bit: Monaural/
Stereo)
Headphone output
: WMA (44.1 kHz: 64/ 96/ 128 kbps:
: 3.5 mm stereo mini jack
Stereo)
: 6.0 + 6.0 mW/ 16 Ω
: WMA (44.1 kHz: 32 kbps: Monaural)
Line output
Maximum recording time (without
: 3.5 mm stereo mini jack
other types of file)
: 700 + 700 mV/ 10 kΩ
USB jack
Recording
format
: USB 2.0/ USB 1.1
Display
Internal
memory
: 1.5 inch monochrome LCD
8G
10h40m 11h36m 128h 168h 256h
Main unit dimensions (W × H × D)
4G
: 52.7 mm × 100.0 mm × 18.0 mm
2G
:(2-1/16 × 3-15/16 × 11/16 inch)
1G
Weight (Net)
: Approx. 95 g
* The figure shown are standard values
:
(Approx. 0.21 lbs)
of stereo recording.
Operational Temperature Range
* During continuous recording, the file is
divided every 2 hours.
: 5 °C – +35 °C (without condensation)
Playback format
Battery type
: Built-in Li-ion rechargeable battery
MP3
Sampling rate: 22.05/ 24/ 32/ 44.1/
AC adaptor (AC-050150A)
48 kHz
Power supply
Bit rate: 32 - 320 kbps
: AC 100-240 V
Variable bit rate: 32 - 320 kbps
Rated input capacity
ID3 tag: ver. 2.2/ 2.3/ 2.4
: 0.2 A 13 W
WMA (DRM compatible)
Rated output
Sampling rate: 32/ 44.1/ 48 kHz
: DC 5 V 1.5 A
Bit rate: 32 - 320 kbps
Max. recording tracks *
3
Variable bit rate: 32 - 355 kbps
: Approx. 450 tracks
(Not supported by Professional,
Lossless, or Voice.)
Battery operation time *
2
WAV (Linear PCM)
Continuous play time (Internal
Sampling rate: 22.05/ 24/ 32/ 44.1/
memory)
48 kHz
WAV (44.1 kHz): Approx. 19 hours
Bit rate: 8 bit/ 16bit
MP3 (128 kbps): Approx. 19 hours
Channel: Stereo/Monaural
WMA (128 kbps): Approx. 19 hours
Recording time (Built-in
SD card *
microphones & internal memory)
Compatible SD card
: SD card, SDHC card, miniSD™ card,
WAV (44.1 kHz): Approx. 12.5 hours
WMA (128 kbps): Approx. 12.5 hours
miniSDHC™ card, microSD™ card
(Data recorded in the SD audio format
cannot be played back.)
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service on this product.
Model
Serial Number

Safety precautions

IMPORTANT SAFETY INSTRUCTIONS
¤ Caution:
Read this page carefully to ensure safe operation.
Read Instructions – All the safety and operating instructions
should be read before the product is operated.
Retain Instructions – The safety and operating instructions should
be retained for future reference.
Heed Warnings – All warnings on the product and in the
operating instructions should be adhered to.
Follow Instructions – All operating and use instructions should
be followed.
WARNING :
• Do not use headphones during riding/driving a vehicle or
walking.
Otherwise, a traffi c accident may result. Never use headphones
when you ride a bicycle or driving an automobile or motorbike.
If this unit is used during walking, the ambient sounds will be cut
and you may have diffi culties in hearing various warning sounds.
• Do not operate this unit during riding or driving a vehicle.
Do not operate this unit when you drive or ride an automobile,
motorbike or bicycle. Otherwise, a traffi c accident may result. Be
sure to stop the vehicle in a safe place before operating this unit.
• Do not stare at the display screen during riding or driving a
vehicle.
Otherwise, a traffi c accident may result.
• Always use the designated AC adapter.
Otherwise, a fi re or electric shock may result.
• Always plug the power plug of the AC adapter into an outlet
supplying the specifi ed voltage.
Otherwise, a fi re or electric shock may result.
Precautions :
• Do not insert or drop a metallic object or an easily fl ammable
object inside this unit through an opening. Otherwise, a fi re
hazard or battery leak may result.
• When connecting ancillary equipment to this unit, read the
instruction for the equipment, switch this unit off and connect
the equipment as instructed. Also be sure to use the specifi ed
cord for the connection. Inappropriate connection, use of a
non-specifi ed cord or extension of the cord may cause heat
generation and a burn or other injuries.
Do not use or place the product in the following
locations:
• A place with high humidity, such as in a bathroom or shower
room. Also do not use this unit in a place subject to water
splashes. Otherwise, a fi re hazard or battery leak may result.
• Do not approach this unit to heating equipment (a stove, iron,
etc.). Otherwise, a fi re hazard or battery leak may result.
• Do not place this unit in a place subject to soot or vapor, for
example in a kitchen or near an air humidifi er, or in a place
subject to excessive humidity or dust. Otherwise, a fi re hazard or
battery leak may result.
• Do not leave this unit in a place where the temperature may rise
abnormally high, for example in a closed automobile or under
direct sunlight. Otherwise, this unit or its parts may deteriorate or
a fi re hazard or battery leak may result.
English
PC system configuration
requirements *
4
OS
: Microsoft® Windows® Vista/XP (Not
supported by 64 bit version OS.)
USB connector
: Compliant to USB 1.1/2.0 standard
WAV
WMA
48
44.1
128
96
64
kHz
kHz
kbps
kbps
kbps
2h40m
2h54m
32h
42h
64h
5h20m
5h48m
64h
84h
128h
2h40m
2h54m
32h
42h
64h
• Kenwood follows a policy of
1h20m
1h27m
16h
21h
32h
continuous advancements in
development. For this reason
(Unit: h = hour, m = minute)
specifications may be changed
without notice. The full performance
may not be exhibited in an extremely
cold location (under a water-freezing
temperature).
*1 The actual available space may be
smaller than specified due to the
presence of the system file area.
*2 The continuous play time value is the
standard value when the provided
headphones are used, Supreme is "Off"
and the sound mode is "NORMAL".
Note that it is not the guaranteed
value. The actual time may be
shortened depending on the ambient
temperature and other operating
conditions.
The battery operation time may be
shortened with certain SD cards.
*3 Assuming that each tracks is in the 128
kbps MP3/ WMA format with playback
time of about 4 min.
*4 All of the above specified PC
environment does not guarantee full
operation of this unit.
5
Use a PC in which either OS
mentioned above is preinstalled.
Operation is not guaranteed on a
PC running an upgraded OS or a PC
assembled by yourself.
*5 This unit is capable of recording/
playback of SD/SDHC memory cards
complying with the SD or SDHC
standard.
Notes on AC adapter
• Do not plug or unplug the power plug with a wet hand.
Otherwise, an electric shock may result.
• In case a thunder begins to rumble, do not touch the AC adapter
or the power plug. Otherwise, an electric shock may result.
• In case a thunder begins to rumble when you are using this unit
outdoors, immediately stop using it. Otherwise, an electric shock
may result.
• Clean the power plug and AC adapter plug periodically. If dirt
is attached on these plugs, deterioration of insulation due to
moisture may result in a fi re or electric shock. To clean the power
plug, unplug it from the power outlet and wipe dirty with a dry
cloth.
• Do not damage the power cord by scratching, modifying,
bending forcibly, twisting, stretching, heating or fi xing it with a
staple or nail. Also do not place a heavy object on the power cord
or lay it below this unit. If you cover the power cord with a carpet,
etc., you run the risk of placing a heavy object on it. Damage to
the cord may result in a fi re or electric shock. Using the damaged
power cord may result in a fi re or electric shock.
• In case of an abnormality with this unit, unplug the power plug.
In case of water or a foreign object penetrates inside this unit
or it produces smoke, abnormal odour or noise, immediately
switch off this unit and unplug the power cord from the power
outlet. Continuing the use of the equipment may result in a
fi re or electric shock. After the smoke, abnormal odour or noise
disappears, consult your dealer or a Kenwood service agent for
servicing.
• If you drop the AC adapter or this unit, unplug the power cord.
If equipment is dropped or the cover or case is damaged, switch
off this unit, unplug the AC adapter from the power outlet.
Continuing the use of the equipment may result in a fi re or
electric shock.
• Do not open the case of or modify the AC adapter or this unit.
These incorporate high voltage parts inside and opening or
modifying them may result in a fi re or electric shock.
Notes on using through headphones:
• Do not start listening with too high a volume. Otherwise, sudden
output of a high-volume sound may cause hearing failure, etc.
• Do not listen to the audio with an extremely high volume for long
hours. Otherwise, your hearing ability may be damaged.
• Do not use headphones if an abnormality is felt on the skin.
Otherwise, skin infl ammations may result. Should any abnormality
be felt on the skin or ears during use of headphones, immediately
stop using them and see a doctor.
• A person with an ear disease is discommended to use
headphones. Otherwise, the disease may worsen. Should any
abnormality be felt on the skin or ears during use of headphones,
immediately stop using them and see a doctor.
• Attach and detach headphones around the ears gently and
slowly. Violent attaching or detaching may injure the ear.
Handling
• Do not apply an excessive force to the display part. Otherwise, it
may be damaged.
• Avoid storing this unit in a bag together with a hard object.
Otherwise, this unit may be damaged when the bag is pushed.
• Do not expose this unit to an insecticide or other volatile
substance or bring this unit in extended contact with a rubber or
vinyl material. Otherwise, discoloration or peeling of the surface
fi nish may result.
• Do not put this unit in a pocket of trousers. Otherwise, it may be
damaged due to a strong impact when you sit down, etc.
DIGITAL AUDIO RECORDER
MGR-A7
QUICK START MANUAL
Reading the PDF Instruction Manual
The Instruction Manual is saved as a PDF file in the following folder of this unit.
Copy this file into your PC before reading it.
[My Computer] – [KENWOOD_DAP] – [Manual]
Refer to <Recharging Battery/ Connecting a PC> for details.
Declaration of Conformity with regard to the EMC Directive
2004/108/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands
© B60-5732-00/01 (E/X)
• Protect this unit against sweat and moisture.
Do not use this unit by putting it in a breast pocket for long hours
in the summer or during exercise. Otherwise, penetration of
moisture or sweat may cause malfunction or failure.
Operating conditions
Temperature: 5 to 35°C. (without condensation)
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth.
Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
Note on the built-in battery
• For the replacement of the built-in battery, contact your dealer.
• The battery built into this unit discharges spontaneously even
when this unit is not used. This means that the built-in battery
may be exhausted completely when this unit is left unused for
a long period. If this happens, recharge the battery before using
this unit.
• The battery recharging time is variable depending on the
condition of the battery and ambient temperature.
• The available playback time reduces when this unit is used under
low temperatures.
• The built-in battery can be recharged for about 500 times. (This is
a reference value and is not guaranteed.)
• The built-in battery is a consumable part, and the available
playback time reduces gradually after repeated use. If the
available playback time becomes very short even after the battery
has been recharged fully, the battery may be degraded; replace it
with new one.
• Kenwood will not assume any liabilities for the alteration or loss of
data caused due to complete discharging of the built-in battery.
• The built-in battery is a lithium ion battery.
It is free from the memory eff ect of Ni-Cd and nickel-hydrogen
batteries, with which the capacity decreases if the battery is
charged or discharged incompletely for several times.
The built-in battery therefore accepts additional charging before
it has exhausted completely.
Storage and maintenance of SD card
Before storage
• Be sure to put the SD card in the case before storing it.
• Do not leave the SD card in a place with extremely high
temperature (under direct sunlight, etc.) or extremely high
humidity.
When the SD card gets dirty
• Wipe lightly with a soft cloth, etc.
• Do not use lacquer thinner, benzine or alcohol.
Other cautions
• Do not open or modify the SD card.
• Do not peel off the label from the SD card.
• Do not attach a label or sticker on the SD card.
• Do not touch the metallic terminals on the backside with a fi nger
or metallic object.
Note on disposal/transfer of SD card
The "Format" and "Delete" functions of this unit or a PC simply
change the fi le management information and do not erase the
data in the SD card completely. Before disposing of or transferring
the SD card, it is recommended to destroy it physically or erase
the internal data completely using commercially available PC data
erasing software.
It is the user's responsibility to manage the data in the SD card
properly.
SD card (LOCK switch)
The SD card has a switch for protecting the card against data write.
Set the switch to the LOCK position to protect the data in the card.
Set the switch to the unlock position before recording, transferring,
editing or erasing the data.
Lock
Unlock
Information on Disposal of Old Electrical
and Electronic Equipment (applicable for EU
countries that have adopted separate waste
collection systems)
Products with the symbol (crossed-out
wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment
should be recycled at a facility capable
of handling these items and their waste
byproducts. Contact your local authority for
details in locating a recycle facility nearest to
you. Proper recycling and waste disposal will
help conserve resources whilst preventing
detrimental effects on our health and the
environment.
Trademark Information
÷ "Microsoft" and "Windows Media" are trademarks or
registered trademarks of Microsoft Corporation in the
USA and other countries.
÷ "Adobe Reader" is a trademark of Adobe Systems
Incorporated.
÷ SDHC logo is a trademark.
Other system names and product names are also
trademarks or registered trademarks of their respec-
tive developers. Note that the "™" and "®" markings
are omitted in the text of this manual.

Advertisement

loading

  Also See for Kenwood MGR-A7

  Related Manuals for Kenwood MGR-A7

  Summary of Contents for Kenwood MGR-A7

  • Page 1: Specifications

    Information on Disposal of Old Electrical electric shock. • Kenwood will not assume any liabilities for the alteration or loss of • Always plug the power plug of the AC adapter into an outlet and Electronic Equipment (applicable for EU •...
  • Page 2: Setting The Date And Time

    Press and hold the Power/Menu button until the Lighting time Recharging completes in about 3 hours. LCD Contrast KENWOOD logo is displayed. Auto power off This unit can be used in playback and recording even when Beep HOLD canceled Language the AC adapter is connected.
  • Page 3: Connecting A Pc

    After copying, you may delete the PDF file to increase the space for transferring more files. If you delete the PDF file by mistake, you can transfer it from the Kenwood website. Disconnecting this unit from the PC Click the [Safe To Remove Hardware] icon.
  • Page 4: Connecting A Microphone Or Audio Component

    Connecting a microphone or Selecting the recording mode/ Display during recording audio component Setting the microphone mode The display shows various information during recording. 1 2 3 4 In addition to the built-in microphones, an external Recording is possible from the built-in microphones, an microphone or audio component can be connected to this external microphone or an external device.
