KDV-MP6032U
DVD-RECEIVER
INSTRUCTION MANUAL
RECEPTOR DVD
MANUAL DE INSTRUCCIONES
RECEPTOR DVD
MANUAL DE INSTRUÇÕES
© B64-4247-08/00 GET0556-001A (R)

Advertisement

   Related Manuals for KENWOOD KDV-MP6032U

   Summary of Contents for KENWOOD KDV-MP6032U

  • Page 1

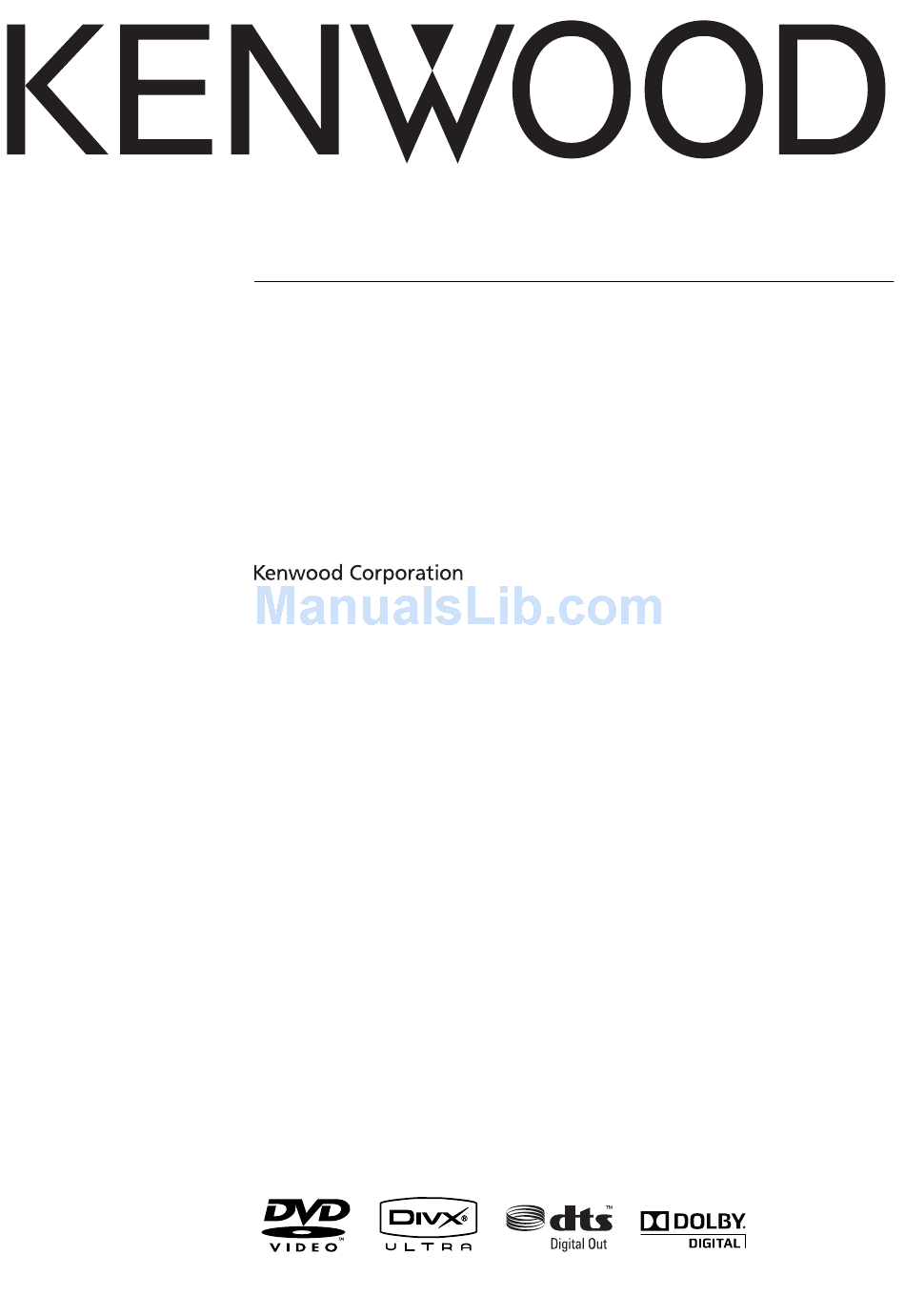

    KDV-MP6032U DVD-RECEIVER INSTRUCTION MANUAL RECEPTOR DVD MANUAL DE INSTRUCCIONES RECEPTOR DVD MANUAL DE INSTRUÇÕES © B64-4247-08/00 GET0556-001A (R)

  • Page 2: Table Of Contents

    Contents Before use Listening to the USB device Playable disc type Dual Zone operations Preparation Listening to the iPod Basic operations When connecting with the USB cable Basic operations Operations using the control screen Listening to the other external — Remote controller components Main elements and features Listening to the radio...

  • Page 3: Before Use

    In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer. How to forcibly eject a disc Caution for DualDisc playback The Non-DVD side of a “DualDisc”...

  • Page 4

    • When you purchase optional accessories, check If you use M MODE or SEL (select), the display and some with your Kenwood dealer to make sure that they work with your model and in your area. controls (such as the number buttons, •...

  • Page 5

    Detaching the control panel “DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

  • Page 6: Playable Disc Type

    Playable disc type Disc type Recording format, file type, etc Playable DVD Video (Region Code: 4) * DVD Audio DVD-ROM DVD Recordable/Rewritable DVD Video (DVD-R/-RW * , +R/+RW * DVD-VR • DVD Video: UDF bridge DivX/MPEG1/MPEG2 • DVD-VR • DivX/MPEG-1/MPEG-2/MP3/ MP3/WMA/WAV WMA/WAV: ISO 9660 level 1, level 2, Romeo, Joliet...

  • Page 7: Preparation

    Preparation Cancel the display demonstration and set the clock • See also pages 33 and 34. Turn on the power. Enter the PSM settings. Cancel the display demonstrations Select “Demo”, then “Off”. Set the clock Select “Clock Hr” (hour), then adjust the hour. Select “Clock Min”...

  • Page 8: Basic Operations

    Basic operations Using the control panel • TUNER: Select preset station. • Select/adjust the sound mode. • DISC/USB: Select title/program/playlist/folder. • Enter the PSM settings [Hold]. • USB-iPod: Enter the main menu [Hold]. • TUNER: Select preset station/channel. • Turn on the power. •...

  • Page 9: Remote Controller

    Basic operations — Remote controller Installing the lithium coin battery (CR2025) Main elements and features If the range of effectiveness of the remote controller decreases, replace the battery. For USA-California Only This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply.

  • Page 10

    (stop), (play), (pause) • (play) also functions as ZOOM button when pressed with SHIFT button (☞ page 17). For advanced disc operations: ∞ • DVD: Selects the titles. Other discs except VCD/CD: Selects the folders. ¢ • Press briefly: reverse skip/forward skip Press and hold: reverse search/forward search ¡...

  • Page 11: Listening To The Radio

    Listening to the radio Select “TUNER”. Select the bands. Search for a station to listen—Auto Search. Manual Search: Hold either one of the buttons until “M” lights up on the display, then press it repeatedly. • When receiving an FM stereo broadcast with sufficient signal strength, lights up on the display.

  • Page 12: Manual Presetting

    Manual presetting Select the preset number you want to store into. Ex.: Storing FM station of 92.5 MHz into preset number 4 of the FM1 band. Using the number buttons • You can move to the lists of the other FM bands by pressing number button 5 ( ) or ) repeatedly.

  • Page 13: Disc Operations

    Disc operations Before performing any operations... Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other discs by referring to the monitor screen. (See pages 19 – 22.) The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its internal program).

  • Page 14: Operations Using The Control Panel

    Operations using the control panel Pressing (or holding) the following buttons allows you to... Disc type (Number buttons) * [Press] Select chapter Select title During stop: Locate title [Hold] Reverse/fast-forward During play/pause: Locate chapter * chapter [Press] Select chapter Select program number/ During stop: Locate program [Hold] Reverse/fast-forward playlist number...

  • Page 15

    After pressing M MODE, press the following buttons to... Disc type Skip 10 chapters (during Repeat Chapter: play or pause) Repeat current chapter — Repeat Title: Repeat current title Skip 10 chapters (during Repeat Chapter: play or pause) Repeat current chapter Repeat Program: —...

  • Page 16: Selecting A Folder/track On The List

    Selecting a folder/track on the list Change to the selected item. If File List is selected (only for MP3/WMA/WAV file) The list disappears and playback • When is shown on the display, you can starts. move back to the previous screen by pressing number button 3.

  • Page 17: Operations Using The Remote Controller

    Operations using the remote controller Disc Button Stop play Stop play Start play/Pause (if pressed during play) Start play/Pause (if pressed during play) • Reverse/forward chapter search * Reverse/forward track search * (No sound can sound can be heard.) be heard.) •...

  • Page 18: 2 | Kdv-mp6032u

    Disc Button Stop play Stop play Stop play Start play/Pause (if pressed Start play/Pause (if pressed Start play/Pause (if pressed during play) during play) during play) Reverse/forward track Reverse/forward track Reverse/forward track search * search * search * • Forward slow motion * during pause.

  • Page 19: Operations Using The On-screen Bar

    Using menu driven features... (DVD-Video/ Operations using the on-screen DVD-VR) Press TOP M/MENU to enter the menu screen. (DVD/DVD-VR/DivX/MPEG Video/VCD) fi Press * to select an item you want These operations are possible on the monitor using the to start play. remote controller.

  • Page 20: 2 | Kdv-mp6032u

    On-screen bar Ex.: DVD-Video Information Operation Playback status Disc type • DVD-Video/DTS-CD: Audio signal format type Play Forward/reverse search and channel • VCD: PBC Forward/reverse slow-motion Pause Playback mode * DVD-Video: T. RPT: Title repeat Stop Operation icons C. RPT: Chapter repeat Change time indication (see DVD-VR: C.

  • Page 21: Operations Using The Control Screen

    Operations using the control Track information Track list with the current track selected screen (DivX/MPEG Video/MP3/WMA/WAV/CD) To select a playback mode These operations are possible on the monitor using the While control screen is displayed... remote controller. Show the control screen. DivX/MPEG Video: Press during play.

  • Page 22: Operations Using The List Screen

    Operations using the list screen Current page/total number of the pages included in the list (DVD-VR/DivX/MPEG Video/MP3/WMA/WAV) Current folder/track (highlighted bar) These operations are possible on the monitor using the remote controller. List screen (DVD-VR) You can use ORIGINAL PROGRAM or PLAY LIST screen List screen (DivX/MPEG Video/MP3/WMA/ anytime while playing DVD-VR with its data recorded.

  • Page 23: Listening To The Usb

    Listening to the USB device You can connect a USB mass storage class device such as a USB memory, portable HDD, etc. to the unit. • You can also connect an Apple iPod to the USB input jack. For details of the operations, see pages 25 – 28. This unit can play DivX/MPEG Video/MP3/WMA/WAV tracks stored in a USB device.

  • Page 24: Dual Zone Operations

    Dual Zone operations You can enjoy disc playback on the external monitor connected to the VIDEO output terminal and 2nd AUDIO OUT plugs while listening to any source (other than “AM” and “USB”) through the speakers. • You cannot select “AM” or “USB” as the source when Dual Zone is activated. •...

  • Page 25: Listening To The Ipod

    Listening to the iPod You can connect an Apple iPod using the following cable or adapter: Cable or adapter: Connect to: Listen to the USB 2.0 cable (supplied for the iPod) USB input jack on the control panel music Watch the video USB Audio and Video cable for iPod, USB input jack and AV-IN input jack on the control KCA-iP240V (not supplied)

  • Page 26: Operations Using The Control Screen

    Operations using the control [Press] Go to the next or previous track. screen [Hold] Fast-forward or reverse the • These operations are possible on the monitor using track during playback. the remote controller. [Hold] Enter main menu. • Connect your iPod to the USB input jack on the control panel using the USB cable supplied for your iPod, or KCA-iP240V for watching video file.

  • Page 27

    • To return to the previous search mode screen, Select the desired item. press MENU. • To return to the control screen, press RETURN. To select a playback mode/change the speed of the Audiobooks If the selected item has another layer, you will enter the layer.

  • Page 28

    Confirm the selection. • You can also change the settings from the PSM (Preferred Setting Mode) items. See “AudioBooks” on page 27. 28 | KDV-MP6032U...

  • Page 29: Listening To The Other External Components

    Listening to the other external components You can connect an external component to: • AV-IN (video) input jack on the control panel. Preparation: Make sure to connect and turn on the monitor to watch the playback picture. If the parking brake is not engaged, “Parking Brake”...

  • Page 30

    Connecting an external component to the AV-IN input jack AV mini plug cable (supplied) Portable Video/ Audio player * AV mini plug cable CA-C3AV Portable Video/Audio player * (not supplied) • When the supplied AV mini plug cable and commercially-supplied φ3.5 mini plug cable (male – male) are used, a noise may be generated during source switching.

  • Page 31: Mode

    Selecting a preset sound mode You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer). Select “EQ”. Select “On”. • If “Bypass” is selected, you can listen to the original sound mode recorded. lights up on the display.

  • Page 32

    • 55Hz: Frequencies higher than 55 Hz Storing your own sound modes are cut off. You can adjust the sound modes and store your own • 85Hz: Frequencies higher than 85 Hz adjustments in memory. are cut off. • When is shown on the display, you can •...

  • Page 33: General Settings - Psm

    General settings — PSM You can change PSM (Preferred Setting Mode) items Adjust the selected PSM item. listed in the table below and on pages 34 – 36. Enter the PSM settings. Repeat steps 2 – 4 to adjust other PSM items Select a PSM category.

  • Page 34

    Category Indication Item Setting, [reference page] : Initial) Clock Hr 1 – 12AM/ : Initial: 1 (1:00AM), [7]. Hour adjustment 1 – 12PM (0 – 23) Clock Min 00 – 59 : Initial: 00 (1:00AM), [7]. Minute adjustment 24H/12H • 12Hours : See also page 7 for setting.

  • Page 35

    Category Indication Item Setting, [reference page] : Initial) IF Band • Auto : Increases the tuner selectivity to reduce interference noises Intermediate between adjacent stations. (Stereo effect may be lost.) frequency band • Wide : Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.

  • Page 36

    Setting the time for dimmer • When is shown on the display, you can move back to the previous screen by pressing number button 3. Follow steps 1 to 3 on page 33. • In step 2, select “DISP”. • In step 3, select “Dimmer”. Select “Time Set”.

  • Page 37: Disc Setup Menu

    Disc setup menu These operations are possible on the monitor using the remote controller. Enter the disc setup menu while stop. Select a menu. Select an item you want to set up. • To cancel pop-up menu, press RETURN. To return to normal screen Select an option.

  • Page 38

    Menu Item Setting OSD POSITION Select the on-screen bar position on the monitor. • 1 : Higher position • 2 : Lower position (Guidance below the disc setup menu will disappear.) DIGITAL AUDIO Select the signal format to be emitted through the DIGITAL OUT (Optical) terminal. OUTPUT •...

  • Page 39: Title Assignment

    Title assignment You can assign titles to 30 station frequencies (FM and To erase the entire title AM) using 10 characters (maximum) for each title. In step 3 on the left column... • When is shown on the display, you can move back to the previous screen by pressing number button 3.

  • Page 40: More About This Unit

    More about this unit Basic operations Disc operations Turning on the power General • By pressing SOURCE on the unit, you can also turn on • In this manual, words “track” and “file” are the power. If the source is ready, playback also starts. interchangeably used.

  • Page 41

    Playing MP3/WMA/WAV files • The maximum bit rate for video signals (average) is 4 Mbps. • The maximum number of characters for folder and • If you want to know more about DivX, visit file names is 25 characters; 128 characters for MP3/ <http://www.divx.com>.

  • Page 42

    WAV and 64 characters for WMA Tag information. • You can control the iPod from this unit when • This unit can recognize a total of 5 000 files and 250 “KENWOOD” or “ ” appears on the iPod display after folders (999 files per folder). connection.

  • Page 43

    General settings—PSM About sounds reproduced through the • “Auto” setting for “Dimmer” may not work correctly rear terminals on some vehicles, particularly on those having a • Through the analog terminals (Speaker out/ control dial for dimming. LINE OUT): In this case, change the “Dimmer” setting to any 2-channel signal is emitted.

  • Page 44

    On-screen guide icons During playback, the following guide icons may appear for a while on the monitor. : Playback : Pause : DVD-Video/VCD: Forward slow motion : DVD-Video: Reverse slow motion : Forward search : Reverse search DVD: The following icons appear at the beginning of a scene containing: : Multi-subtitle languages : Multi-audio languages : Multi-angle views...

  • Page 45

    Output signals through the DIGITAL OUT terminal Output signals are different depending on the “DIGITAL AUDIO OUTPUT” setting on the setup menu (see page 38). Output Signal Playback Disc STREAM/PCM DOLBY DIGITAL/ PCM ONLY DVD-Video 48 kHz, 16/20/24 bits 48 kHz, 16 bits stereo Linear PCM * Linear PCM 96 kHz Linear PCM 48 kHz, 16 bits stereo Linear PCM...

  • Page 46

    Language codes Code Language Code Language Code Language Code Language Code Language Afar Persian Kazakh Norwegian Sesotho Abkhazian Finnish Greenlandic Occitan Sundanese Afrikaans Fiji KM Cambodian OM (Afan) Oromo SW Swahili AM Ameharic Faroese Kannada Oriya Tamil Arabic Frisian Korean (KOR) Panjabi Telugu Assamese...

  • Page 47: Troubleshooting

    Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptom Remedy/Cause • Sound cannot be heard from the speakers. • Adjust the volume to the optimum level. • Check the cords and connections. •...

  • Page 48

    Symptom Remedy/Cause • Disc cannot be played back. • Change the disc. • Record the tracks using a compliant application in the appropriate discs (see page 6). • Add the extension code <.divx>, <.div>, <.avi>, <.mpg>, <.mpeg>, <.mp3>, <.wma>, or <.wav>...

  • Page 49

    Symptom Remedy/Cause • Noise is generated. • The track played back is not a playable file format (MP3/WMA/WAV). Skip to another file. • Do not add the extension code <.mp3>, <.wma>, or <.wav> to non-MP3/WMA/WAV tracks. • Tracks cannot play back as you have Playback order may differs from the one played back intended them to play.

  • Page 50

    Symptom Remedy/Cause • The iPod does not turn on or does not work. • Check the connecting cable and its connection. • Update the firmware version. • Charge the battery. • The sound is distorted. Deactivate the equalizer either on this unit or the iPod. •...

  • Page 51: Specifications

    Specifications Power Output: 20 W RMS × 4 Channels at 4 Ω and ≤ 1% THD+N Signal to Noise Ratio: 80 dBA (reference: 1 W into 4 Ω) Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Frequency: Band 1: 68 Hz, 100 Hz, 150 Hz Range:...

  • Page 52

    Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: DVD, fs=48 kHz/96 kHz: 16 Hz to 22 000 Hz CD, fs=44.1 kHz: 16 Hz to 20 000 Hz Dynamic Range/Signal-to-Noise Ratio: 96 dB/98 dB Wow and Flutter: Less than measurable limit DivX/MPEG...
