29" LCD TV/DVD Combo

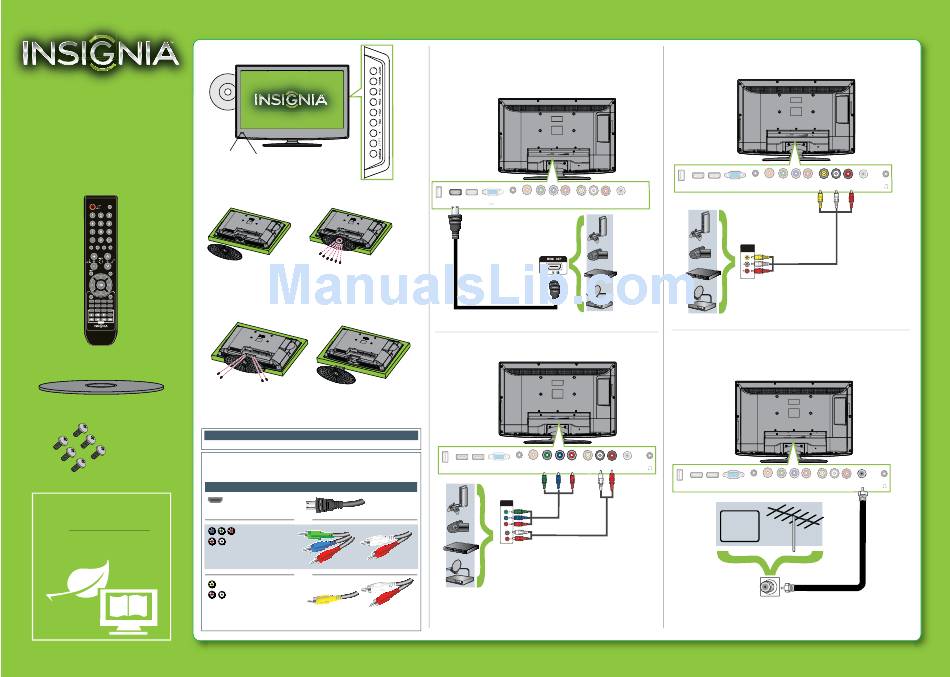

QUICK SETUP GUIDE

NS-29LD120A13
Thank You
for purchasing this fine Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
POWER
INPUT
RECALL
TV
DVD
HDMI
VIDEO
TV-MENU
HOME
INFO*
CCD
ZOOM
MTS/SAP
FAVORITE
AUDIO
SLEEP
CH-LIST
MENU
SETUP
TOP
SUBTITLE
MENU
AUDIO
DVD
NS-RC05A-13
Remote control and
2 AAA batteries
TV stand
B4 screws (16 mm length) (6)
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search field,
then click Search.

Front features

Power
Remote
indicator
control sensor

Installing the stand

1 Carefully place your TV/DVD combo screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the stand to the TV/DVD combo stand column using the six provided screws.

Installing a wall-mount bracket

1 Carefully place your TV/DVD combo screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the
four
screws that secure the stand column to your TV/DVD combo then
remove the stand column.
3 Attach the wall-mount bracket to your TV/DVD combo using the mounting holes on the
back of your TV/DVD combo. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV/DVD combo.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.

Identifying cables

TV/DVD combo
Your
has several connection types for connecting devices. For the best video
quality, connect a device to the best available connection.
Connection type
Video quality
Cable connector
HDMI video/audio
Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI2/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
AUDIO IN
PC / DVI
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
OUTPUT
DIGITAL
Y
COMPONENT IN
COMPONENT IN
P
P
VIDEO
VIDEO
AV IN
AV IN
L - AUDIO - R
L - AUDIO - R
ANT / CABLE
ANT / CABLE
B
R
COMPONENT IN
COMPONENT IN
AV IN
AV IN
PC / DVI
PC / DVI
DIGITAL
DIGITAL
USB
USB
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
AUDIO IN
AUDIO IN
OUTPUT
OUTPUT
Y
Y
P
P
P
P
VIDEO
VIDEO
L - AUDIO - R
L - AUDIO - R
B
B
R
R
Note: Cable is not provided.
Using component cables (better)
COMPONENT IN
COMPONENT IN
AV IN
AV IN
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
PC / DVI
PC / DVI
AUDIO IN
AUDIO IN
DIGITAL
DIGITAL
OUTPUT
OUTPUT
Y
B
P
P
R
VIDEO
VIDEO
L - AUDIO - R
L - AUDIO - R
ANT / CABLE
ANT / CABLE
COMPONENT IN
AV IN
PC / DVI
PC / DVI
DIGITAL
DIGITAL
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
AUDIO IN
AUDIO IN
OUTPUT
OUTPUT
Y
P
B
P
R
VIDEO
VIDEO
L - AUDIO - R
AUDIO/VIDEO
OUT
Note: Cables are not provided.
Using composite cable (good)
PC / DVI
PC / DVI
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
AUDIO IN
AUDIO IN
COMPONENT IN
COMPONENT IN
PC / DVI
PC / DVI
DIGITAL
DIGITAL
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
AUDIO IN
AUDIO IN
OUTPUT
OUTPUT
Y
Y
ANT / CABLE
ANT / CABLE
AUDIO/VIDEO
OUT

Connecting an antenna/cable wall jack

Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back of your TV and to
the Antenna/Cable wall jack.
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
PC / DVI
PC / DVI
AUDIO IN
AUDIO IN
DIGITAL
DIGITAL
OUTPUT
OUTPUT
ANT / CABLE
ANT / CABLE
COMPONENT IN
COMPONENT IN
PC / DVI
PC / DVI
DIGITAL
DIGITAL
USB
USB
HDMI 1
HDMI 1
HDMI 2 / DVI
HDMI 2 / DVI
VGA
VGA
AUDIO IN
AUDIO IN
OUTPUT
OUTPUT
Y
Y
P
P
CABLE
Note: Cable is not provided.
DIGITAL
DIGITAL
COMPONENT IN
COMPONENT IN
AV IN
AV IN
OUTPUT
OUTPUT
Y
P
B
P
R
VIDEO
VIDEO
L - AUDIO - R
L - AUDIO - R
ANT / CABLE
ANT / CABLE
AV IN
P
P
P
P
VIDEO
L - AUDIO - R
ANT / CABLE
ANT / CABLE
B
B
R
R
Note: Cable is not provided.
COMPONENT IN
COMPONENT IN
AV IN
AV IN
Y
P
B
P
R
VIDEO
VIDEO
L - AUDIO - R
L - AUDIO - R
ANT / CABLE
ANT / CABLE
AV IN
AV IN
B
B
P
P
R
R
VIDEO
VIDEO
L - AUDIO - R
L - AUDIO - R
ANT / CABLE
