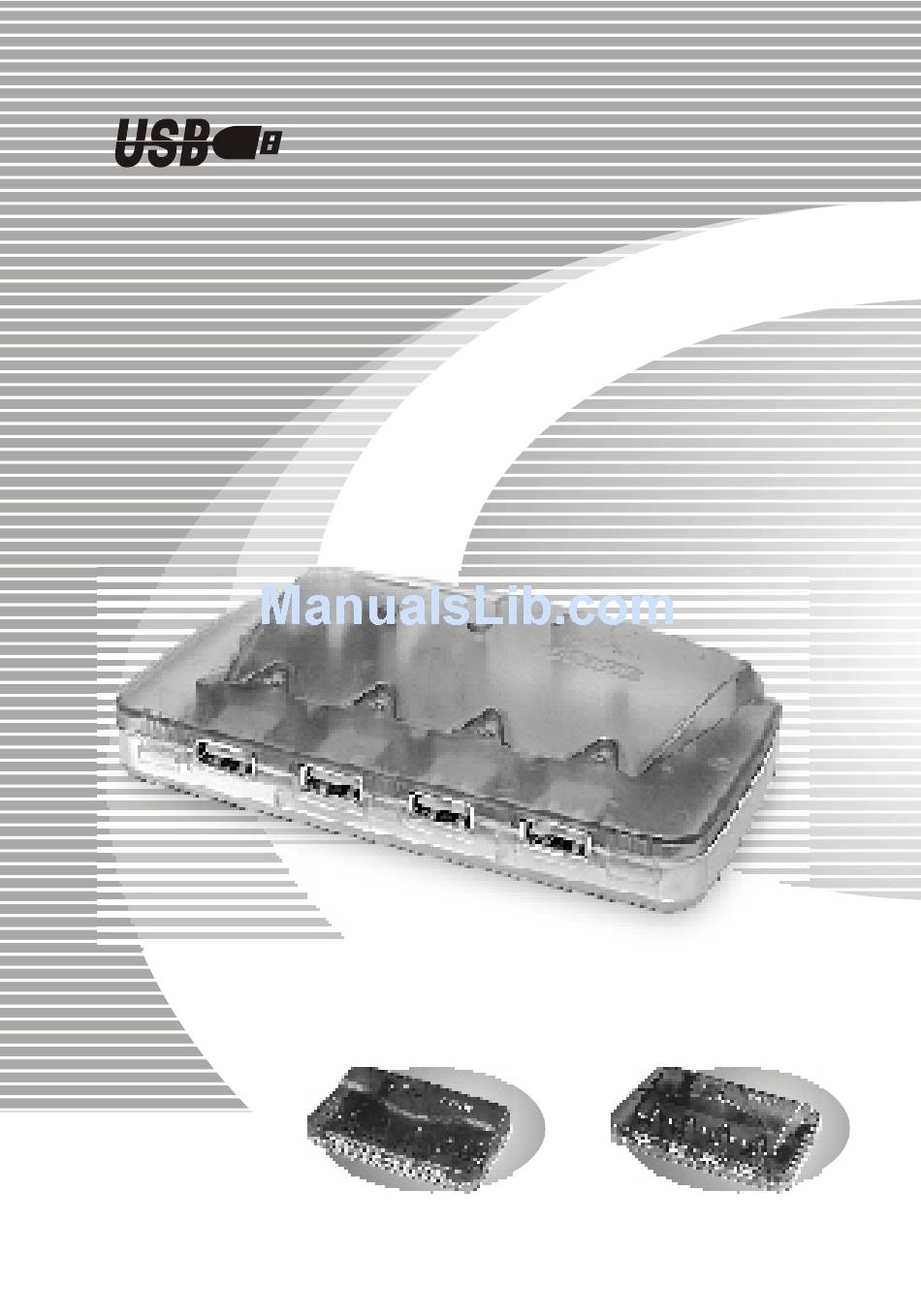

- Page 1 UNIVERSAL SERIAL BUS HUB User Manual...
-
Page 2: Package Content
UNIVERSAL SERIAL BUS HUB Please read this manual thoroughly and follow the instruction procedures to prevent any damage to the USB HUB and or the connecting devices. Package Content s One USB Hub s One USB Cable (6 feet) s One Power Adapter DC 5V (2.5A) Overview The USB Hub provides the electronic interface between USB devices and the host. - Page 3 UNIVERSAL SERIAL BUS HUB l Low voltage drop: 1. Self-powered mode: Max 500mA (indicated by Red power LED) 2. Bus-powered mode: 140mV/500mA, 14mV/50mA (indicated by Green power LED) l Individual power switches (each port): 1. Over-current protection with current limit threshold: 500mA(Min)750mA(Typ)/1250mA(Max) 2.
- Page 4 UNIVERSAL SERIAL BUS HUB Aspect Self Power Bus Power (Red LED) (Green LED) Per-Port Active LED Power Jack Root Port...
-
Page 5: Specifications
UNIVERSAL SERIAL BUS HUB Specifications Function Description Power Consumption 3mA per LED 40mA for HUB control circuit Connector Upstream 1 USB Series B Receptacle Downstream 4 USB Series A Receptacles Power 1 USB-power (Green LED) 1 Self-power (Red LED) Port Status 4 Port Active Status (Green LED) Weight 100g... -
Page 6: Power Adapter
UNIVERSAL SERIAL BUS HUB Power Adapter The Power Adapter attached with USB Hub is DC 5V , 2.5A (min.) which is a minimum requirement for the device. If user needs more power to supply the downstream port devices, user can purchase a new power with the Spec. - Page 7 UNIVERSAL SERIAL BUS HUB Diagram 2 Port Hub Telephone Camera Joystick Electric Keyboard...
- Page 8 UNIVERSAL SERIAL BUS HUB USB Hub or Host Port Full Speed (Upstream Port) Hub Repeater Hub Controller Port 1 Port 2 Port 3 Port 4 USB Device 1 USB Device 2 USB Device 3 USB Device 4...
-
Page 9: Installation
UNIVERSAL SERIAL BUS HUB INSTALLATION Install the Hardware A. First of all, please insert the plug of the DC 5V 2.5A power adapter into the power jack of USB Hub B. Connect the series-A connector (please refer to the Figure-1) of the USB cable into the downstream port of PC USB host controller (or ROOT hub) or one downstream port of the upper level (parent) hub. - Page 10 UNIVERSAL SERIAL BUS HUB Figure-1 1+VCC 4GND Series-A Connector Figure-2 1+VCC 4GND Series-B Connector Socket B...
