Page 3: Important Safety Instructions
Do not install near any heat sources such as radiators, heat WARNING registers, stoves, or other apparatus (including amplifiers) that produce heat. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT Do not defeat the safety purpose polarized or grounding type plug. -
Page 4: Table Of Contents
Page Index Product Carton Contents ..........2 Introduction ..............4 Getting Started ............5-6 Setting the Clock ............7 Tone Alarm Backup Battery Installation ......7 Standby and On .............. 8 AM/FM Operation ............8-10 Convenience Features..........11-12 Quick Reference Guide ......... 13-16 Connecting an External Audio Source ...... -
Page 5: Product Carton Contents
- - Product Carton Contents 1) SoundWorks Radio 735 2) External AM Loop Antenna 3) Infrared Remote Control 4) (Optional) Made for iPod Dock Not Pictured: 5) External FM Wire Antenna 6) SoundWorks Radio 735 User Manual... - Page 6 - -...
-
Page 7: Introduction
- - INTRODUCTION The people at Cambridge SoundWorks hope you enjoy A front input jack allows easy connection of audio program your new high-performance SoundWorks Radio 735. sources (like portable digital music and cassette players). Your new radio has great FM stereo sound and plays useful AM band stations. -
Page 8: Getting Started
- - GETTING STARTED Remove the SoundWorks Radio (See A) from its protec- tive polybag and place it in your preferred location. The Radio’s Tone alarm sound and bass output will be re- duced if the Radio is placed on a compliant, soft surface. Connect the AM antenna (See B): To prepare the an- tenna (1), fold the base (2) and snap it into place (3). -
Page 9: Getting Started
- - GETTING STARTED (Continued) Connect the cord by inserting the SoundWorks Radio’s AC plug into a convenient outlet. The AC cord is also the Radio’s primary FM antenna. It will function better if at least 50% or more of its length follows a straight line (See C). -
Page 10: Setting The Clock
- - GETTING STARTED (Continued) Setting the Clock You can adjust the current time whether the radio is in Standby or On. TIME SET Just press the (next to the symbol) TIME ADJUST BUTTONS 9:43 AM on the right hand side of the display (see E). Note: The current time can only be adjusted from the Radio’s faceplate. -
Page 11: Standby And On
- - GETTING STARTED (Continued) Standby and On 9:43 AM Pushing the POWER button chooses Standby or On operation (see G). The faceplate POWER button can also be used to engage Sleep Delay operation (see page 12). Selecting the Radio Bands Pressing the FM1/2 button cycles through two banks of FM station presets. - Page 12 - - GETTING STARTED (Continued) Tuning Stations FM2 P1 88.1 9:43AM • Autotune Method 1: Press the SEEK button (remote or radio face) to automatically find the next station or higher frequency (see I). • Autotune Method 2: Press and hold either TUNE button to seek the next station (the button seeks down, the...
- Page 13 - 10 - FM2 P1 88.1 9:43AM...
-
Page 14: Convenience Features
- 11 - CONVENIENCE FEATURES Mute To mute the SoundWorks Radio: Press the SNOOZE/MUTE bar (located on top of the radio) or the SNOOZE/MUTE button on the remote control (see T). Mute is cancelled if the POWER button is pressed, if a disc is inserted or the volume is adjusted. -
Page 15: Convenience Features
- 1 - CONVENIENCE FEATURES (Continued) Sleep Delay To make the SoundWorks Radio automatically turn off SLEEP DELAY after a specific period of time: 45 MIN • With the radio in standby, rapidly tap the POWER button until the desired amount of play time is reached (see U). -
Page 16: Quick Reference Guide
- 1 - QUICK REFERENCE GUIDE - SOUNDWORKS RADIO FACEPLATE INDICATES ALARM STATUS NORMAL OPERATION: PRESS TO MUTE SOUND. = MUSIC WAKEUP DURING WAKEUP: PRESS TO ACTIVATE SNOOZE FEATURE. = TONE WAKEUP TAP TO ACTIVATE ALARM PRESS AND HOLD TO ADJUST ALARM 2:11 RADIO STATION PRESET BUTTONS: PRESS AND HOLD TO STORE CURRENT STATION... - Page 17 - 1 - INDICATES AUDIO MODE SETS CURRENT TIME IN NORMAL OPERATION SETS WAKEUP TIME IN ALARMS MODE SELECTS PLAYER INPUT FOR USE WITH OPTIONAL PLAYER DOCK RADIO: TAP TO AUTOMATICALLY SEEK THE NEXT STATION UP THE BAND. DISC: TAP TO STOP PLAY. RADIO: TAP TO MANUAL TUNE, PRESS AND HOLD TO SEEK TO NEXT STATION.
- Page 18 - 1 - QUICK REFERENCE GUIDE - SOUNDWORKS RADIO CD REMOTE CONTROL SOUNDWORKS RADIO 735 REMOTE CONTROL FM: TAP TO MANUAL TUNE, PRESS SELECTS AM BAND (ONE PRESET BANK) AND HOLD TO SEEK NEXT STATION ALARM SET: ADJUST WAKEUP TIME TAP TO AUTOMATICALLY SEEK THE NEXT STATION ADJUSTS VOLUME DURING NORMAL OPERATION...
-
Page 19: Quick Reference Guide
- 1 - QUICK REFERENCE GUIDE - SOUNDWORKS RADIO REAR CONNECTIONS AM ANTENNA INPUT MINIJACK EXTERNAL FM ANTENNA “F” FM ANTENNA INPUT PLAYER TYPE INPUT PLAYER ANTENNA POWER POWER OUTPUT FOR OPTIONAL PLAYER DOCK OUTPUT INPUT INPUT .mm STEREO MINIJACK PLAYER INPUT INTERNAL / EXTERNAL FM 75 OHMS FOR OPTIONAL PLAYER DOCK... -
Page 20: Connecting An External Audio Source
- 1 - CONNECTING AN EXTERNAL AUDIO SOURCE Listening to External Sound Sources If you have an external audio program source you want FM2 P1 STEREO WIDE MONO to connect to the SoundWorks Radio, like a portable MP3 88.1 9:43AM player, connect it to the AUX input on the front panel (see Q). -
Page 21: Radio And Disc Text Displays
- 1 - RADIO AND DISC TEXT DISPLAYS Radio Data Service (RDS) Some FM radio stations broadcast Radio Data Service (RDS) text along with their programs. Station Identification RADIO DATA SERVICE display Text is displayed in the first 8 characters of the lower line. Rocket Man..Elt RDS descriptive text STEREO... -
Page 22: Jog Function
- 1 - JOG FUNCTIONS JOG button operation: Press the JOG button on the radio or on the remote FM2 P1 control to select the first JOG function (see W). Press the 88.1 9:43AM JOG button again to select additional JOG functions. Use the VOLUME knob or the VOLUME buttons ( VOLUME on the remote control to adjust settings of JOG functions. -
Page 23: Jog Function
- 0 - JOG FUNCTIONS (Continued) BASS Adjustment display TREBLE Adjustment display ADJUST BASS ADJUST TREBLE JOG functions: STEREO WIDE MONO STEREO WIDE MONO • Bass: Bass output can be adjusted in four steps up or down. • Treble: Treble output can be adjusted in four steps up or down. -
Page 24: Wakeup Function
- 1 - WAKEUP FUNCTIONS Entering WAKEUP Adjustment Adjusting the Wakeup Settings During Wakeup Settings adjustment, you select Wakeup Alarm 1 Adjustment Time and the Music Wakeup Source and Volume. The choice of Tone or Music Wakeup is selected later as the alarm is activated. - Page 25 - - WAKEUP FUNCTIONS (Continued) WAKEUP Volume adjustment At any time during the Wake-up Adjustment session, Alarm 1 Volume you can determine the Music Wake-up volume by adjusting the volume on the radio faceplate or the remote control. At any point in the Wake-up Adjustment session, you can determine the wake-up time by using the TIME ADJUST BUTTONS on the front panel or the TUNE adjustment on the remote control.
- Page 26 - - WAKEUP FUNCTIONS (Continued) Activating Wakeup: While in standby or normal operation, tap either ALARM Alarm 1 On 9:43AM button to cycle between: CD IN • Music Wakeup • Tone Wakeup • No Wakeup A Music Wakeup indicator ( ) or a Tone Wakeup indicator ( ) lights to show activation.
- Page 27 - - WAKEUP FUNCTIONS (Continued) Silencing a Wakeup To cancel an operating Wakeup alarm for the day, but Alarm1 Off keep it activated, tap the POWER button on the front panel or the remote control. The Wakeup settings will remain active and operate the next day.
-

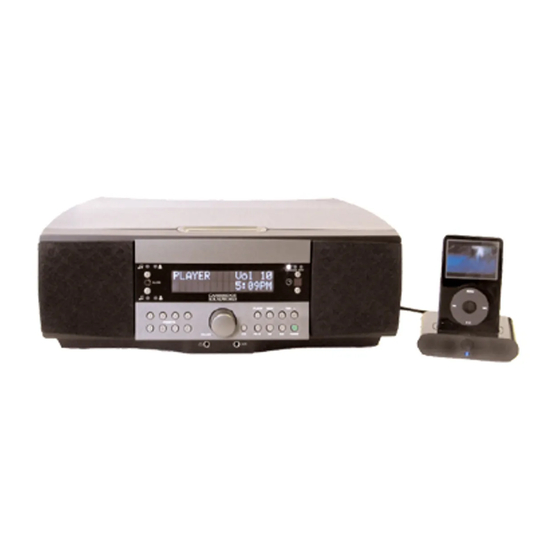

Page 28: Player Dock - Made For Ipod (Optional)
- - PLAYER DOCK - Universal Dock for iPod (Optional) Rear Connection Panel of SoundWorks Radio Using the iPock Dock FM ANTENNA INPUT PLAYER PLAYER ANTENNA POWER Connect the Dock’s two plugs to the SoundWorks Radio’s OUTPUT INPUT INPUT rear input panel: 75 OHMS 2.5 mm... - Page 29 - - PLAYER DOCK - Universal Dock for iPod (Continued) Use the on the remote control PLAYER CONTROL BUTTONS on SoundWorks Radio remote PLAYER CONTROL BUTTONS to perform iPod functions. You will need to push the PLAY/PAUSE button ) in the section on the PLAYER CONTROL BUTTONS ENTER...
- Page 30 - - PLAYER DOCK - Universal Dock for iPod (Continued) Use the COMPOSITE OUT or S-VIDEO OUT jack on the S-VIDEO COMPOSITE back of the iPod dock for connection to a television. iPod with video support required. Use the second recess behind the iPod connector to store the SoundWorks Radio remote control.
-
Page 31: Specifications
- - SPECIFICATIONS Internal audio sources: Outputs: FM stereo tuner with display of Radio Data Service text from One front panel Headphone 3.5 mm stereo minijack supporting FM stations. Rear Panel Controls: AM tuner FM antenna INT/EXT switch Inputs: Dimensions: One rear panel PLAYER INPUT 3.5 mm stereo minijack for use with English... - Page 32 Rev 1a English P81-2390...
