Summary of Contents for Cambridge SoundWorks Playdock Playdock MP3

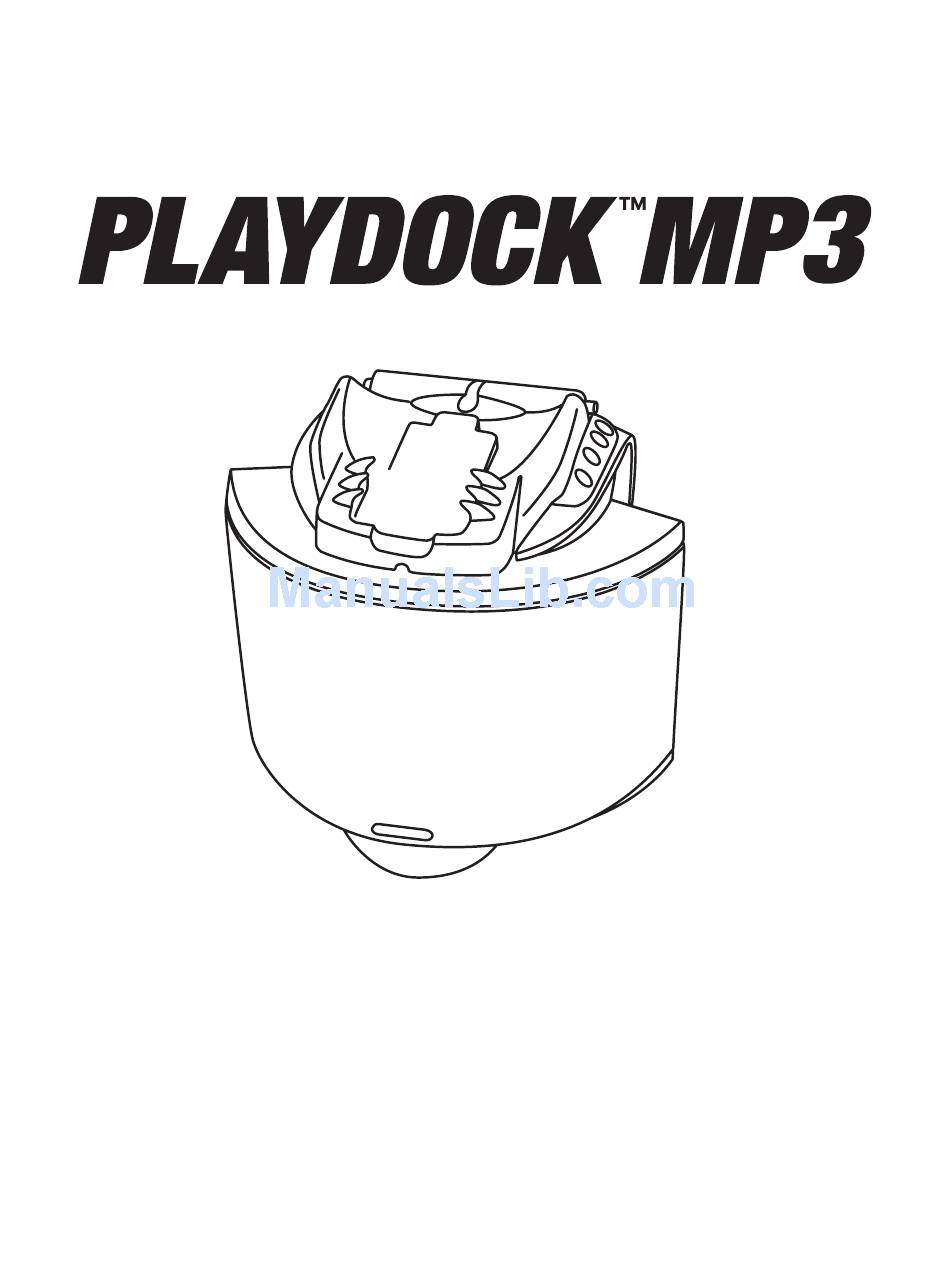

- Page 1 User Manual...
- Page 2 ������� TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Compatibility and Dimensions ......... 2 Carton Contents ............3 The Preparation Instructions show how to use each of PlayDock MP3’s four holders with specific MP3 players. Your MP3 player may differ from the play- ers used in the examples. For the best fit with your player, follow the instructions for the illustrated player that is closest to yours in size and configuration. -
Page 4: Product Dimensions
Supported MP3 Player Types Playback From Fitted Holder PlayDock MP3 provides holders and holder inserts to fit the following players: Creative © Zen players (Zen, Zen NX, Zen Xtra, Zen Touch, Zen Micro) Creative MuVo hard drive players Dell © DJ, Pocket DJ Apple ©... -
Page 5: Package Contents
Package Contents PlayDock MP3 Audio Player (Pre-installed with player) Large Holder Small Player Insert (inside Large Holder) USB-style DC Connector Battery (not included with all models) (Packed Separately) 120VAC to 13.5VDC Power Adapter Mid Player Insert Barrel-style DC Connector Zen/NX/Xtra Holder Also Included User Guide CSW Registration card... -
Page 6: Zen Micro, Dell Pocket Dj
SETUP INSTRUCTIONS FOR SPECIFIC MP3 PLAYERS FOLLOW THE SETUP INSTRUCTIONS FOR YOUR PLAYER THEN PROCEED TO PAGE 10 FOR OPERATION INSTRUCTIONS. Creative Zen Micro, Dell Pocket DJ PlayDock MP3 comes set-up to support Creative Zen Micro and Dell Pocket DJ. If you have one of these play- ers, slip the bottom of the player into the holder from the direction shown by the arrow. -
Page 7: Zen Touch
Remove the Large Holder. Unplug the USB-style DC connector. Plug in the Barrel-style DC connector. Re-install the Large Holder. Slip the lip on the underside of the Large Holder under the stage on top of the PlayDock. Press the claws of the Large Holder on to the PlayDock bar. -
Page 8: Ipod Mini
Apple iPod Mini-size players Unplug USB-style DC connector. Retain for future use. Slip the bottom of the player into the holder from the direc- tion shown by the arrow. Connect the Signal plug into the player’s 3.5 mm head- phone jack. SKIP TO NORMAL USE, PAGE 10 Page 6... - Page 9 Apple iPod-size, Dell DJ players Unplug USB-style DC connector. Retain for future use. Remove the Small Player Insert from the Large Holder as shown. Install the Mid-size Insert. Slip the bottom of the player into the holder from the direc- tion shown by the arrow.
-
Page 10: Zen, Zen Nx, Zen Xtra
Creative Zen Players (Zen, Zen NX, Zen Xtra) Remove the Zen Touch Holder and Small Player Insert as shown. Replace USB DC connector with barrel-style DC connec- tor. Install the Zen holder. Slip the lip on the underside of the Zen Holder under the stage on top of the PlayDock. - Page 11 Page 9...
-
Page 12: Operation
Normal Use Connect the AC to DC power adapter. 1) Connect power adapter’s DC output plug to PlayDock DC input. 2) Then connect power adapter’s AC plug to AC outlet. 3) Put the POWER button to the IN position. NOTE: If portable operation is not frequent, you can use the PLAY/ MUTE button to turn off PlayDock. -
Page 13: Operation
After Removing Player For neat appearance, slip the DC connector and miniplug into the Standby sockets. Portable Operation With the battery installed, PlayDock MP3 serves as a stand-alone music system. When the AC power adapter is disconnected, PlayDock MP3 automatically enters Standby mode (the Play/Mute light will go dark). - Page 14 When the battery fails to operate the PlayDock for more than two to three hours after a 18 hour charge cycle, replacement is indicated. Cambridge SoundWorks stocks the replacement battery. 1) To install or replace the battery, remove the three screws on the left hand endcap (the endcap without the POWER switch.)
- Page 15 �� ����� ��������� ������� ��� ��� ��������� ����� ��� ��� ���� �� ������������������������������������ © 2005 Cambridge SoundWorks, Inc. All rights reserved. Cambridge SoundWorks is a registered trademark of Cambridge SoundWorks, Inc., Andover, Massachusetts USA. All other brands and products are trademarks or registered trademarks of their...
- Page 16 Supported MP3 Player Information Playback From Fitted Holder PlayDock MP3 provides holders and holder inserts to fit the following players: Creative © Zen players (Zen, Zen NX, Zen Xtra, Zen Touch, Zen Micro) Creative MuVo hard drive players Dell © DJ, Pocket DJ Apple iPod ©...
