G
I
UIDE TO
NSTALLATION
B & K
OF THE
CK2.2 K
EYPAD
B K
&
14322 081307
S
B
IMPLY
ETTER!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK2.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for B&K CK2.2

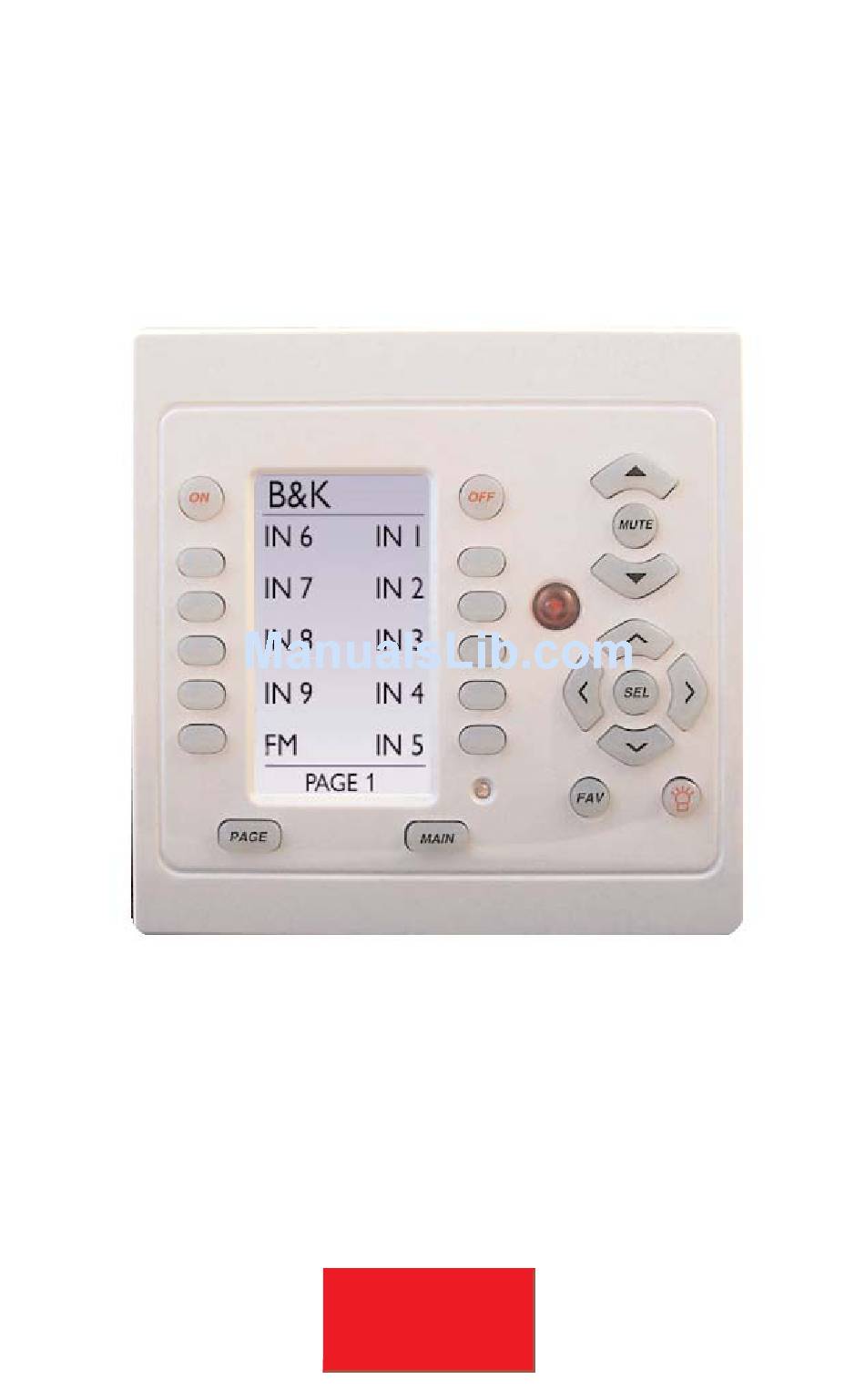

  • Page 1 UIDE TO NSTALLATION B & K OF THE CK2.2 K EYPAD & 14322 081307 IMPLY ETTER!
  • Page 2 Thank you for choosing to install the B&K CK2.2 Keypad for this system! Please use this manual as a guide to connecting and mounting the CK2.2 Keypad. The CK2.2 keypad is preprogrammed at the factory to initially operate B&K CT products. It can be re-programmed using a Windows PC and the accompanying CD.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents Features and Benefits Basic Controls and Displays Standard CT Receiver System Connecting to a CT Receiver Terminate RJ-45’s One to One Keypad Total Power Consumption Connecting Slave Keypads The CK2.2 and B&K Home Theater Connecting a Local Device Using IR “Eyes”...
  • Page 4: Features And Benefits

    Features and Benefits Programming Capacity The CK2.2 can be programmed with up to 1500 IR commands or macros, which can span over 50 separate devices. The On and Off, Volume Up or Down, and Navigation buttons can additionally be programmed with a com- mand or macro per device.
  • Page 5: Basic Controls And Displays

    Basic Controls and Displays Remote Control Target Conceals an IR Sensor which relays commands from a LCD Display handheld IR remote to control the main system and Labels on the screen components connected to flahers. change depending on what activity has been selected.
  • Page 6: Standard Ct Receiver System

    Standard CT Receiver System Keypads connect to the Zone Control Connectors on the CT Receiver using CAT-5 cables. CK 2.2 keypads can be coupled with CK 1.1 key- pads in any zone. IR Flashers for A/V components as connected to the IR output corresponding to their A/V Input.
  • Page 7: Terminate Rj-45'S One To One

    Terminate RJ-45’s One to One Terminate the RJ-45’s using any color code, just connect the cables straight through, i.e. exactly the same color to pin on each end of the cable. Standard pre-terminated LAN (Local Area Network) cables work fine. For convenience, the T568-B color scheme is listed and shown below.
  • Page 8: Connecting Slave Keypads

    Connecting Slave Keypads Each zone should have one CAT-5 cable home run to the CT Receiver. When rooms interconnect and open to each other (for example inter- connecting family room, kitchen, dining areas) you may opt to expand a zone to include several rooms. Each room can have it’s own keypad. Many keypads can be connected by a daisy chain configuration in any zone.
  • Page 9: Connecting A Local Device

    Connecting a Local Device Every keypad can control a local IR source(s) by directly connecting IR emitters from the keypad to the local source. A two conductor cable should be run from the keypad location to the local component location. Up to four infrared emitters can be wired to a keypad by connecting in SERIES as shown below.
  • Page 10: Programming

    Programming Use the included CD-ROM to install B&K’s Keypad editor on your Windows PC. The CK2.2 Editor runs on Windows 2000, XP, XP Pro and Windows Vista. It is best to do all programming in front of the compo- nents with a CK2.2 connected to a laptop’s USB port. Each keypad must have its own program downloaded to it.
  • Page 11: Mounting

    Mounting After connections are made, the CK2.2 installs into a standard double gang J-Box or an open backed double gang trim ring with the screws provided. If you opt to use a closed J-Box, it must be a minimum of 2 3/4” deep to accomodate standard RJ-45 plugs in the rear.
  • Page 12: Keypad Specifications

    Keypad Specifications B&K Receivers, Preamp Processors Compatible B & K products: and Infrared controllable equipment. Operating Voltage and Current: 12VDC @ 75mA 1 RJ-45 and one 5-position phoenix Master Input and Type: adapter (Alternate Master) Slave Output and Type: 1 RJ-45 Front Panel IR Pass Local Emitter Capability: Included Faceplates:...
