RS232 Commands and Protocol
Function List

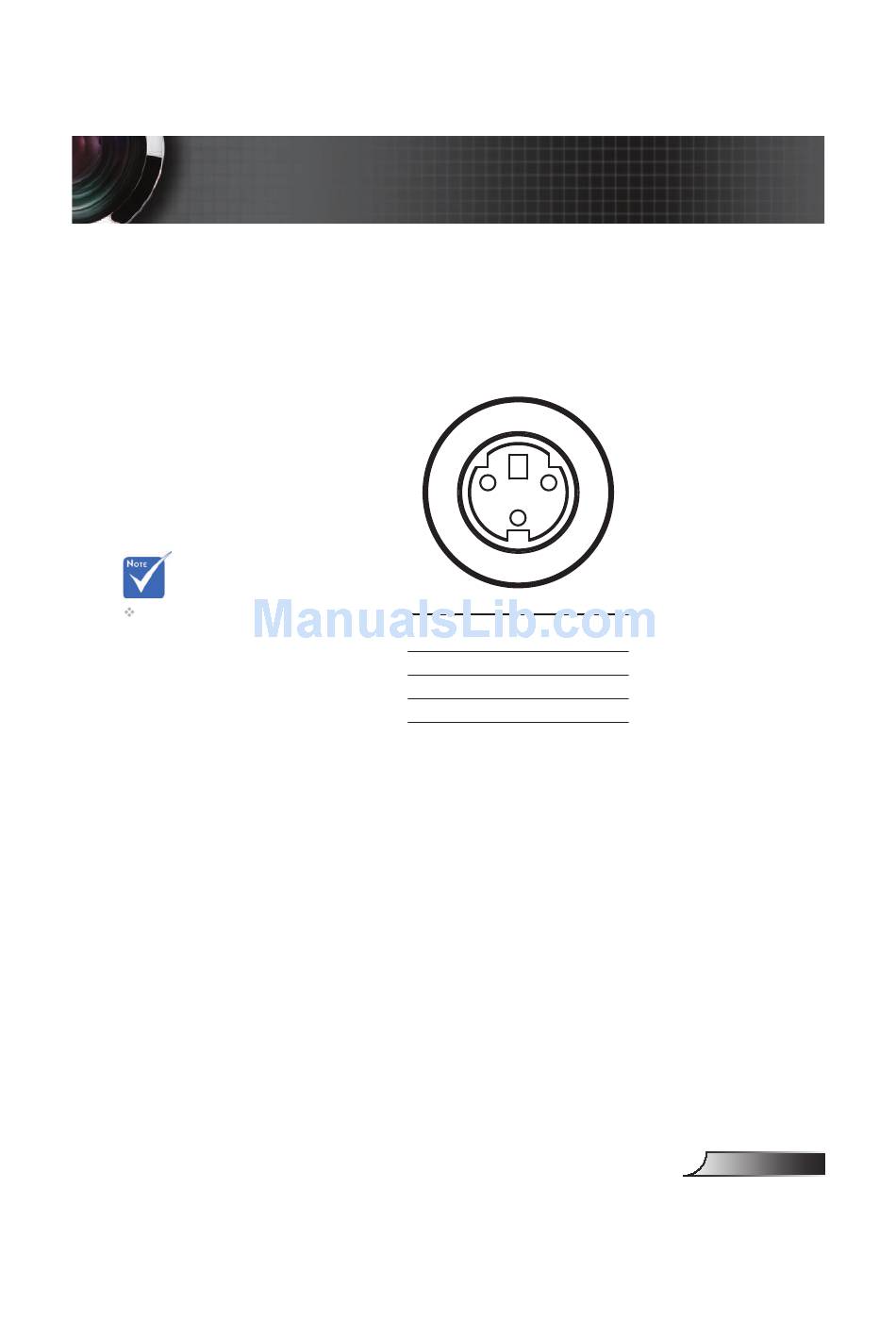

RS232 Pin Assignments
RS232 shell is
grounded.
Appendices
1
2
3
Spec.
Pin no.
(from projector side)
1
TXD
2
RXD
3
GND
51
English
Advertisement
Related Manuals for Optoma PRO160S
Summary of Contents for Optoma PRO160S
-
Page 1: Rs232 Commands And Protocol Function List
Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments RS232 shell is Spec. grounded. Pin no. (from projector side) English... -
Page 2: Rs232 Protocol Function List
Appendices RS232 Protocol Function List XX=00-99, projector's ID, Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None 1. There is a <CR> after Stop Bits: 1 all ASCII commands. Flow Control : None 2. 0D is the HEX code UART16550 FIFO: Disable for <CR>... - Page 3 = 0 (a=30) ~ 10 (a=31 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX82 3 7E 30 30 38 32 20 33 0D...
- Page 4 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock ~XX100 0 7E 30 30 31 30 30 20 30 0D ~XX100 3 7E 30 30 31 30 30 20 33 0D Next Source ~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude ~XX101 0...
- Page 5 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde a : 0/1 = Off/On bbbb: Lamp Hour cc: source 00/01/02/03/04= None/VGA1/S-Video/Video/HDMI dddd: FW version e : Display mode 0/1/2/3/4/5/6/7/8/9= None/Presentation/Bright/Movie/sRGB/User/ Blackboard/Classroom/3D ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name n:1/2/3 =SVGA/XGA/WXGA ~XX108 1...
