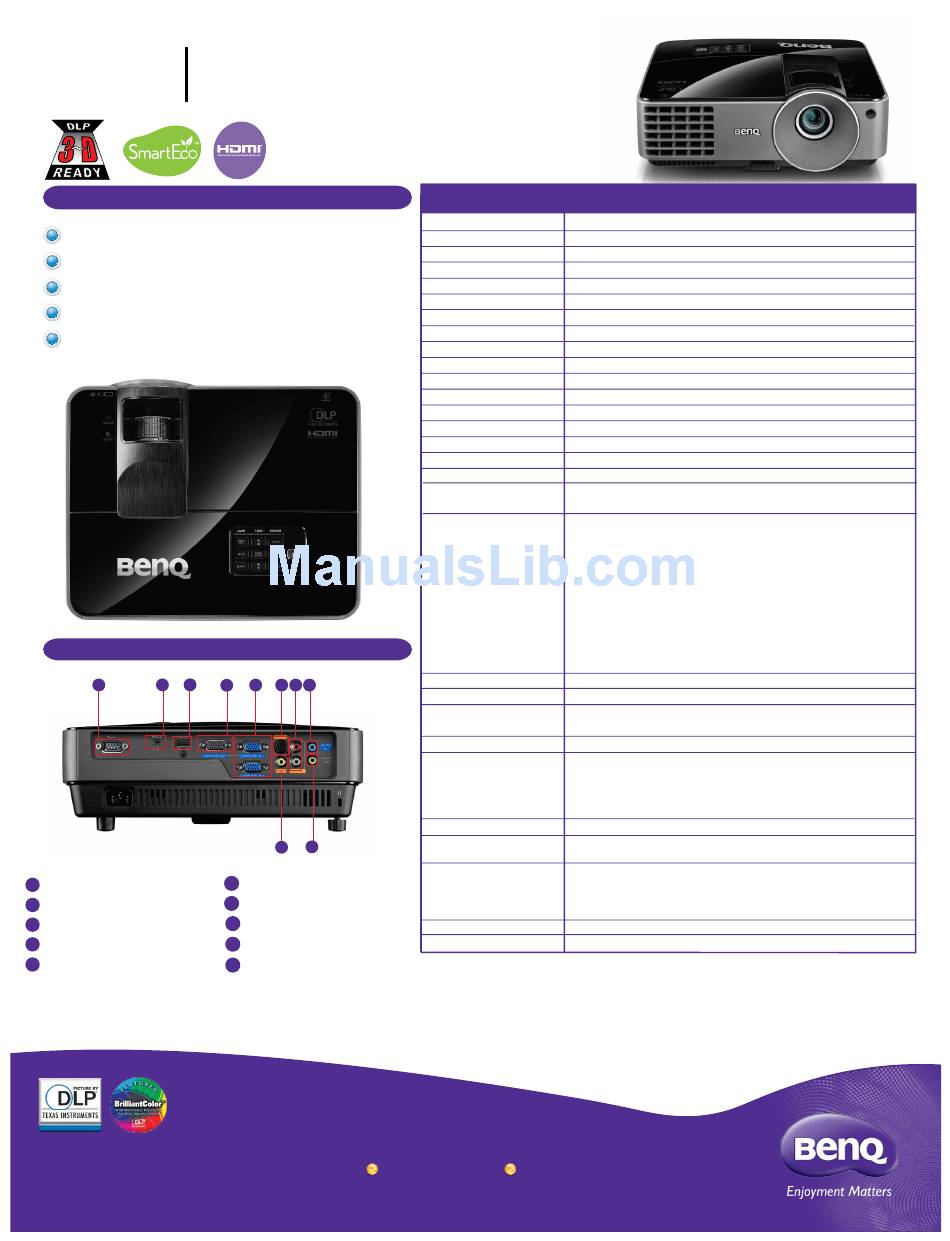

BenQ MX520 Quick Start Manual

MX520
DIGITAL
PROJECTOR

Features

XGA Native Resolution (1024x768)
3000 Ansi Lumens High Brightness
13,000 Contrast Ratio, Instant Restart
SmartEco™ Power Saving Technology
Various 3D Format Support Entertainment

Input and Output Terminals

3
1 2
1 RS232 (DB-9pin)
2 USB (Type mini B)
3 HDMI
4 Monitor Out (D-sub 15pin)
5 Computer In (D-sub 15pin)
BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618
BenQ is a registered trademark of BenQ Corp. DLP
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
4 5 6 7 8
9
10
6
S-Video In (Mini DIN 4pin)
7
Audio In L/R (RCA)
8
Audio In (Mini Jack)
9
Audio Out (Mini Jack)
Composite Video in (RCA)
10
Tel: (949) 255-9500
is a registered trademark of Texas Instruments. All rights reserved.
®
I

Specifications

®
Projection System DLP
Native Resolution XGA(1024 x 768)
Brightness 3000 ANSI Lumens
Contrast Ratio 13000:1
Display Color 1.07 Billion Colors
Lens F2.56-2.8, f=21-23.1mm
Aspect Ratio Native 4:3 (5 aspect ratio selectable)
Throw Ratio 1.86-2.04 ( 53"@ 2m )
Image Size (Diagonal) 40"~300"
Zoom Ratio 1.1:1
Lamp Type 210W
4000/5000/6500 hours
Lamp Life (Nor/Eco/Smart Eco Mode)
Keystone Adjustment 1D, Vertical +/- 40 degrees
Projection Offset 120% ±5%
Resolution Support VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency 15~102KHz
Vertical Scan Rate 23~120Hz
Compatibility HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Interface Computer in (D-sub 15pin)
Monitor out (D-sub 15pin)
HDMI v1.4a
Composite Video in (RCA)
S-Video in (Mini DIN 4pin)
Audio in (Mini Jack)
Audio L/R in (RCA)
Audio out (Mini Jack)
Speaker
USB (Type mini B)
RS232 (DB-9pin)
IR Receiver
11.31 x 4.5 x 9.15 inches (287.3 x 114.4 x 232.6 mm)
Dimensions (WxHxD)
5.28lbs (2.4kg)
Weight
AC 100 to 240 V, 50 to 60 Hz
Power Supply
Power Consumption 293W (typical), Standby<0.5W
Audible Noise
33/28 dBA (Normal/Economic mode)
On-Screen Display Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Languages
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2
Picture Mode
Lens Cover, Remote Control w/ Battery, Power Cord, User Manual CD,
Accessories (Standard)
Quick Start Guide, Warranty Card, VGA(D-sub 15pin) Cable
Spare Lamp Kit
Accessories (Optional)
Ceilling Mount
3D Glasses
Carry bag
UPC code
8400460-2489-5
1 Year Parts/Labor; 1 Year or 2000 hours of lamp life
Limited Warranty
*Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications
are subject to change without notice.
www.BenQ.us
x 2 (shared with Component video)
x 1
x 1
x 1
x 1
x 1
x 1
x 1
2W x 1
x 1 (Download & page/down)
x 1
x 1 (Front)
5J.J6V05.001
5J.J4N10.001
5J.J7K25.001
5J.J3T09.001
MX520 10-24-12-BQus
