- Page 1 Lite-Ex PL 30 Bedienungsanleitung · Operating Instructions Notice d‘utilisation · Gebruiksaanwijzing Istruzioni per l‘uso · Instrucciones de uso Manual de instruçoes · Bruksanvisning...
- Page 2 Deutsch English Français Nederlands Italiano Español Português Svenska Seite 1 Page 11 Page 21 Pagina 31 Page .41 Página 51 Página 61 Sida .71...
-
Page 3: Table Of Contents
4. Special requirements for use in ex-hazardous areas 5. Safety instructions 6. Ex-data 7. Technical data 8. Functional description / operating information 8. Lite-Ex PL 30 components 8.2 Getting started 8.3 Battery replacement 8.4 Cleaning the twist ring 8.5 Lamp replacement 8.6 Replacing the spare disc... -
Page 4: Safety Instructions

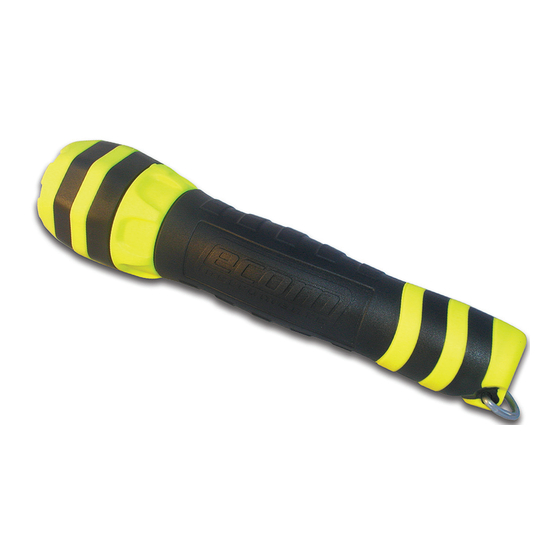

1. Application The Lite-Ex PL 30 is an LED pocket torch designed for industrial applications or use in potentially explosive areas of Zones 2, and 0 as well as 22, 2 and 20 in accordance with Directive 99/92/EC (ATEX 37). -
Page 5: Safety Instructions
- Additional or spare batteries must not be carried in the Ex-area. - Only approved battery types may be used. - Only spare sealing rings and discs of ecom instruments are allowed. - Only accessories approved by ecom instruments GmbH may be used. -
Page 6: Technical Data
Please take the time to carefully read through these operating instructions to ensure that you are familiar with all of the functions of your Lite-Ex PL 30 and know how to use all of the functions. For you own safety and information please read through the information on the following pages. -
Page 7: Lite-Ex Pl 30 Components
8.1 Lite-Ex PL 30 components Illustration 1 Sealing rings Housing head 8.2 Getting started In order to be able to use the torch in the Ex-area, you must first check that the outer housing head and body are screwed on completely. After this has been done, you can switch on the torch by turning the yellow twist ring slightly in a clockwise direction. -
Page 8: Cleaning The Twist Ring
Should, however, the disc break, it is possible to replace it. To replace the disc, hold on to the body of the Lite-Ex PL 30 and the twist ring, and carefully unscrew the housing head by turning it anticlockwise. -
Page 9: Cleaning, Maintenance And Storage 6
In the event of a warranty claim, the faulty device should be returned to ecom instruments GmbH. We reserve the right to readjust, repair or replace the unit. -
Page 10: Ec-Type Examination Certificate 8
12. EC-Type Examination Certificate... -
Page 12: Ec Declaration Of Conformity
13. EC Declaration of Conformity Further details relating to the declaration of conformity can be found at the following Internet address: http://www.ecom-ex.com in the Product Download area. - Page 13 GmbH Industriestr. 2 97959 Assamstadt Germany Tel.: +49 (0) 62 94 / 42 24-0 Fax: +49 (0) 62 94 / 42 24-90 E-Mail: sales@ecom-ex.com Internet: www.ecom-ex.com...
