Connecting Internal Headers - Intel BLKD945GCLF2 Product Manual

Intel Desktop Board D945GCLF2 Product Guide

Connecting Internal Headers

Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 21. Figure 11 shows the location of the board's internal headers.
30
Item Description
A Audio
B S/PDIF
C Front panel
D Hi-speed USB 2.0

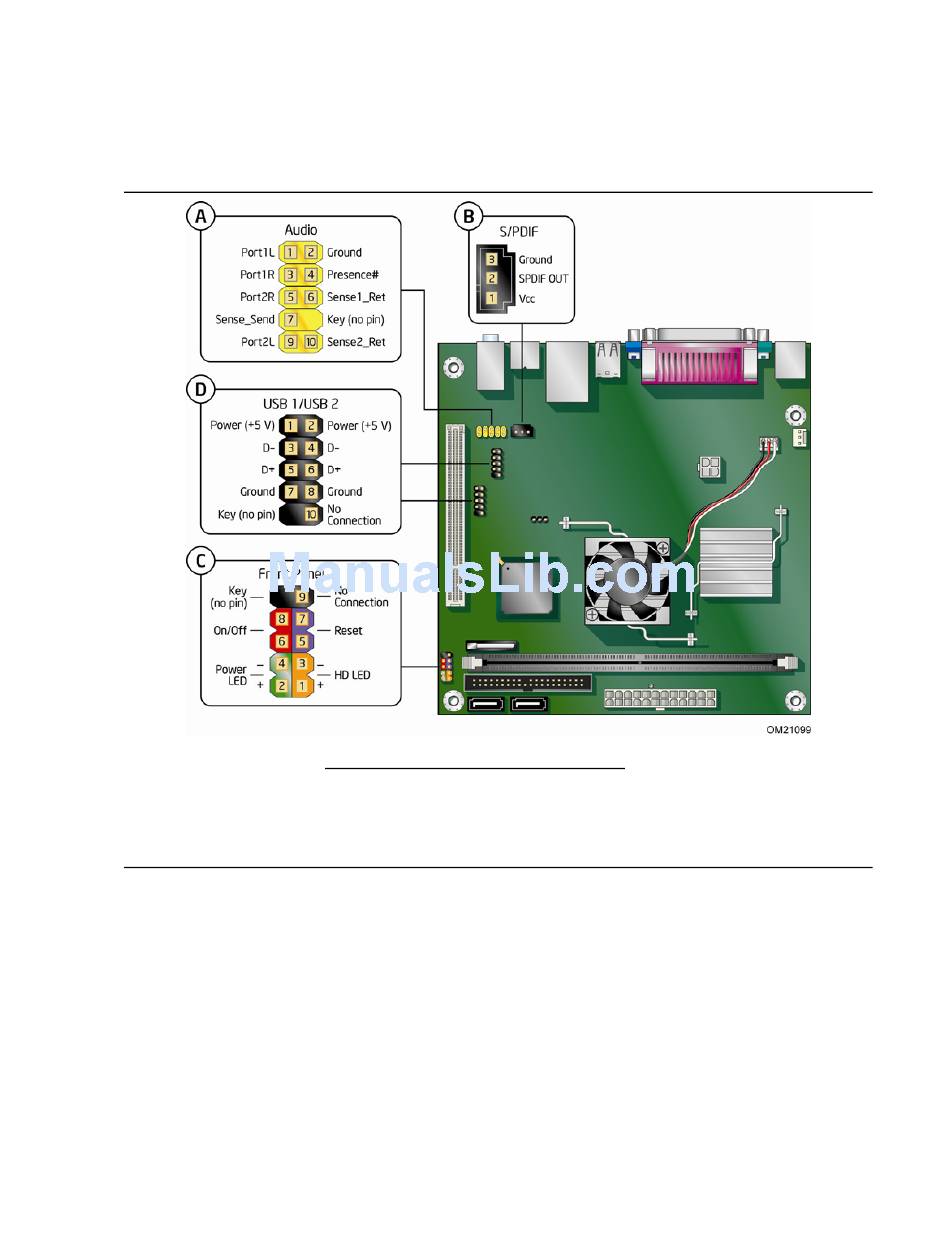

Figure 11. Internal Headers
