contact a qualified electrician and have it replaced with a properly
grounded three-pronged wall receptacle or have a grounding adapter
properly grounded and polarized. If the extension cord must be used, it
should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a
countertop or table where it can be pulled on by children or tripped over
accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR RE-
MOVE THE ROUND GROUNDING PRONG FROM THIS
PLUG.
1. Door open handle
Pull to open door.
2. Door latches
The oven will not operate unless the
door is securely close.
3. Removable turntable support
4. Removable turntable
The turntable will rotate clockwise or
counterclockwise.
5. Oven lamp
It will light when oven is operating or
door is opened.
6. Oven door with see-through window
7. Ventilation openings (Rear)
8. Auto-Touch control panel
9. Time display: Digital display, 99
minutes 99 seconds
10. Coupling
11. Wave guide cover
12. Power supply cord
NOTE:
Some one-touch cooking features such as "MINUTE
PLUS"are disabled after three minutes when the oven is
not in use. These features are automatically enabled
when the door is opened and closed or the STOP/
CLEAR pad is pressed.

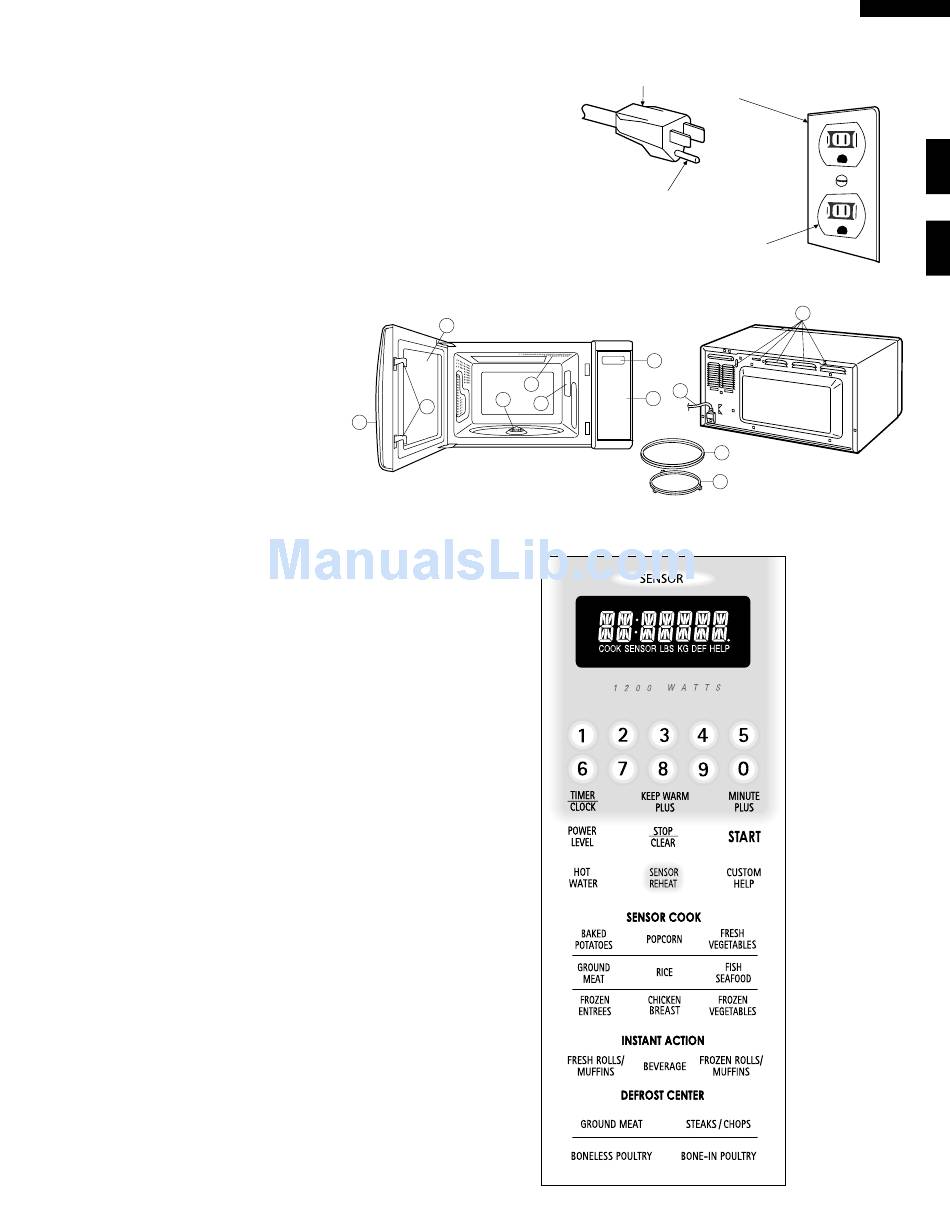

OVEN DIAGRAM

6
5
10
11
2
1
5
Grounded
3-Pronged Plug
Receptacle Box
Grounding Pin
3-Pronged Receptacle
9
12
8
4
3
TOUCH CONTROL PANEL
R-320FK
R-320FQ
R-320FW
7
