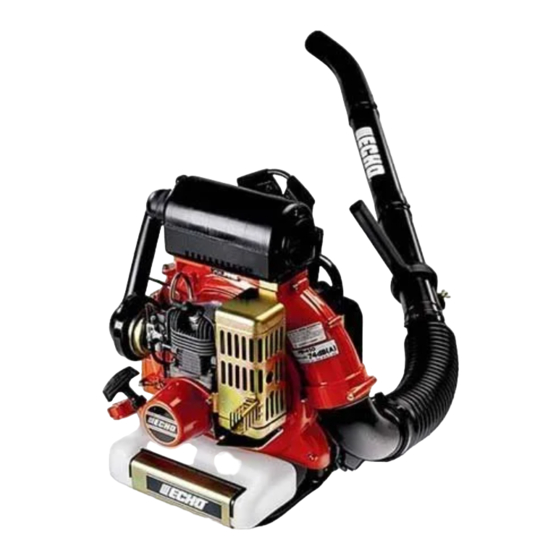

Echo PB-410 Operator's Manual

Echo power blower operator's manual
Hide thumbs Also See for PB-410:
Table of Contents

Advertisement

Quick Links

See also: Training Manual , Operator's Manual
Power Blower
Operator's Manual
MODEL
Read rules for safe operation and all instructions carefully. ECHO provides this
Operator's Manual which must be read and understood for proper and safe operation.
PB-410
WARNING
DANGER
Printed in Japan 0501Gjb 0044 ES
X750-006 20 1
X750109-290 1

Advertisement

Table of Contents
loading

Related Manuals for Echo PB-410

Summary of Contents for Echo PB-410

  • Page 1 Power Blower Operator’s Manual MODEL Read rules for safe operation and all instructions carefully. ECHO provides this Operator’s Manual which must be read and understood for proper and safe operation. PB-410 WARNING DANGER X750-006 20 1 X750109-290 1 Printed in Japan 0501Gjb 0044 ES...

  • Page 2: Table Of Contents

    Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual. You will find it easy to use and full of helpful operating tips and SAFETY messages.

  • Page 3: Manual Safety Symbols And Important Information

    “DESCRIPTION” section, will help you locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. P/N 89016003360 -WARNING-...

  • Page 4: International Symbols

    Parts • Do not use blower if any part is missing or damaged. • Have repairs done only by an authorized ECHO Service dealer. • Do not use any attachment, accessory or replacement part unless it is recommended in this Operator’s Manual.

  • Page 5: Personal Condition And Safety Equipment

    PERSONAL CONDITION AND SAFETY EQUIPMENT Power Blower users risk injury to themselves and others if the Power Blower is used improperly and/or safety precautions are not followed. Proper clothing and safety gear must be worn when operating a Power Blower.

  • Page 6: Safe Operation

    • Keep long hair away from engine and blower intake. Retain hair with cap or net. • Start unit on ground with throttle at idle. Check that blower pipe is not blocked by the ground or by any objects. Keep A Solid Stance •...

  • Page 7: Extended Operation/Extreme Conditions

    • Limit the hours of operation. Try to fill each day with jobs where operating the blower or other hand-held power equipment is not required. • If you experience discomfort, redness and swelling of the fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to cold and vibration.

  • Page 8: Description

    Maintenance Section of this manual. CONTENTS 1 - Power Head 1 - Blower Pipe Assembly 1 - Operator’s Manual 1 - Warranty Registration Card 1 - ECHO Emissions and Warranty Statement 1 - Echo Power Blend 2-stroke oil sample PRODUCT EMISSION DURABILITY...
  • Page 9 7. THROTTLE LEVER - Controls engine speed. 8. STOP SWITCH - “Toggle Switch” 9. SHOULDER HARNESS - Used to support unit on operator’s back. The straps are adjustable. 10. BLOWER PIPES - 11. FLEXIBLE PIPE - Allows for full range of movement. P/N 89016003360...

  • Page 10: Specifications

    NGK BPM-8Y Gap 0.65 mm (0.026 in.) Spark Arrestor Muffler w / Catalyst Mixed (Gasoline and Two-stroke Oil) 50:1 ECHO High Performance, two-stroke air cooled engine oil 89 Octane unleaded. DO NOT use fuel containing methyl alcohol. Gasoline may contain 15 % MTBE (methyl tertiary-butyl ether).

  • Page 11: Assembly

    1. Assemble throttle lever bracket to the fancase using four screws. - Set stop lead into the recess of bracket. 2. Assemble the flexible pipe thru elbow to the blower and tighten clamp. 3. Assemble the flexible pipe and the straight pipe w/swivel and tighten the clamp.

  • Page 12: Pre-Operation

    Emission Defect Warranty Explanation.) IMPORTANT Echo premium Power Blend Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals. Handling Fuel WARNING Fuel is VERY flammable.
  • Page 13 Mixing Instructions 1. Fill an approved fuel container with half of the required amount of gasoline. 2. Add the proper amount of 2-stroke oil to gasoline. 3. Close container and shake to mix oil with gasoline. 4. Add remaining gasoline, close fuel container, and remix. IMPORTANT Spilled fuel is a leading cause of hydrocarbon emissions.

  • Page 14: Operation

    PERATION - Provide all operators of this equipment with the Operator’s Manual and instructions for safe operation. - Check unit for loose nuts, bolts and screws daily. - Recoil starter: Use short pulls - only 1/2 - 2/3 of rope length for starting.

  • Page 15: Operating Blower

    Always wear safety glasses, hearing protection, a face filter mask and take all safety precautions or serious personal injury may result. Do not point the blower pipe in the direction of people or pets. Read the Safety Section carefully. IMPORTANT To avoid engine damage due to over revving, do not block blower pipe opening.

  • Page 16: Maintenance

    ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If task is not listed, see your ECHO Dealer for repairs.

  • Page 17: Air Filter

    AIR FILTER Level 1. NOTE Clean daily. 1. Close choke (Cold Start Position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from the air cleaner area. 2. To take out a air filter, loosen both clamps of air cleaner and remove filter cover as shown.

  • Page 18: Spark Plug

    WARNING Muffler and catalytic mufflers operate at extremely high tempera- tures. Muffler area must be kept clean. Do not perform maintenance on the engine or muffler until engine and muffler are completely cool, otherwise serious personal injury may occur. SPARK PLUG Level 2.

  • Page 19: Exhaust System

    3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. • In the event that the engine should lose power and overheat, the muffler should be removed and checked for excessive deposits.

  • Page 20: Carburetor Adjustment

    CCW until the tip just contacts the throttle plate. Then turn (2) two additional turns CW for initial setting. Blower should operate with an even idle at low r/min. 5. Accelerate to full throttle for 2 - 3 seconds to clear any excess fuel in the engine, then return to idle.

  • Page 21: Troubleshooting

    OWER LOWER ’ PERATOR ANUAL Remedy Clean or replace Clean or replace Ask your ECHO dealer Ask your ECHO dealer Open choke Clean/replace air filter Adjust carburetor Ask your ECHO dealer Turn switch to ON Ask your ECHO dealer Adjust to 0.65 mm (0.026 in.)

  • Page 22: Storage

    7. Remove the spark plug and pour 7 mL (1/4 oz.) of fresh, clean ECHO 2-stroke engine oil into the cylinder through the spark plug hole. A. Place a clean cloth over the spark plug hole.
  • Page 23 OWER LOWER ’ PERATOR ANUAL NOTES...

  • Page 24: Servicing Information

    • Purchasing from your Echo Dealer. • Manuals are available by sending a written request stating the model number and serial number of your Echo unit, part number of the manual, your name and address, and mail to the address below.
