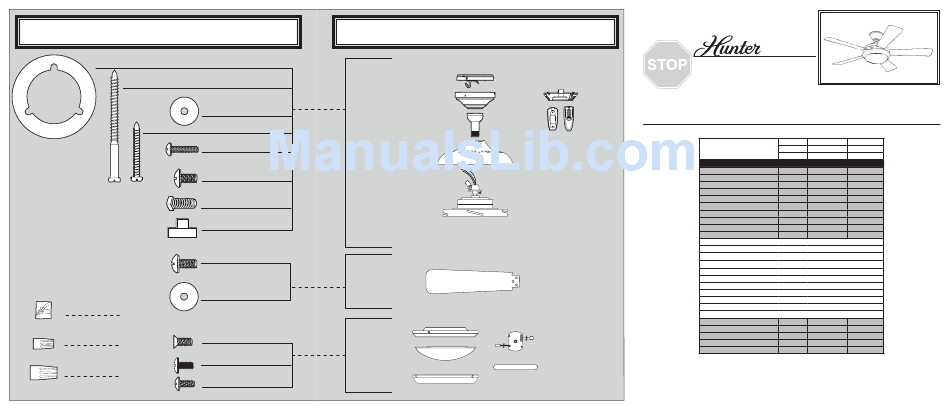

Hunter 21627 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 3
x 16
x 16
Balancing
x 1
Kit
Wire
x 3
x 4
Connector
x 6
Wire
x 4
Connector
x 2
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Screw, Low
Profile
Canopy Screw
Setscrew
Mounting Isolator
Blade Assembly
Screw
Blade
Assembly
Flat Washer
Globe Assembly
Screw
Switch
Housing
Screw,
Assembly
Machine, 8-32
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 21627

Part List

Asm. Dwg. # 98988-01
Finish Brushed Nickel
Item Name Qnty Part #
Ceiling Plate 1 84050-01
Canopy 1 84005-01
Hanger Pipe Assembly 1 63722-25
Housing, Top 1 92542-01
Light Kit Assembly 1 94245-01
Globe/Shade 1 94246-01
Bulb 1 85219-01
Globe Trim Ring 1 94242-01
Blade Set 1 76238-57
Hardware Kit 1 98988-00-860
Washer, Installers Choice
Screw , #6-32x.500
Screw, Machine, 8-32
Canopy Screw
Screw, Low Profile
Wood Screw
Blade Assembly Screw
Flat Washer
Screw, Machine, 6-32
Wire Nut
Mounting Isolator
Balancing Kit 1 07570-01
Ballast 1 87108-01
Remote Receiver 1 87075-01
Remote Transmitter 1 85095-03
Remote Control Cradle 1 85093-01
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com •
21628
98988-02
Brushed Bronze
Part #
84050-01
84005-01
63722-25
92542-01
94245-01
94246-01
85219-01
94242-01
76238-58
98988-00-861
07570-01
87108-01
87075-01
85095-03
85093-01
98000-01-938 11-12-2008 • 2008
©
