EAW Subwoofer SB150zP Specification Sheet

S B 1 5 0 z P S p e c i f i c a t i o n s
DESCRIPTION
The SB products are EAW's premium subwoofers designed for
the most demanding professional applications. A broad range of
capabilities and sizes provide the designer with selections that
can be specifically matched to their application. Top quality
drivers, engineered by EAW, provide the highest output and best
sonic performance possible for a given form factor. All SB
models are direct radiating, with optimally tuned, vented
enclosures. SB subwoofers are the choice where the best sonic
performance, highest reliability, and most robust physical
construction are required.

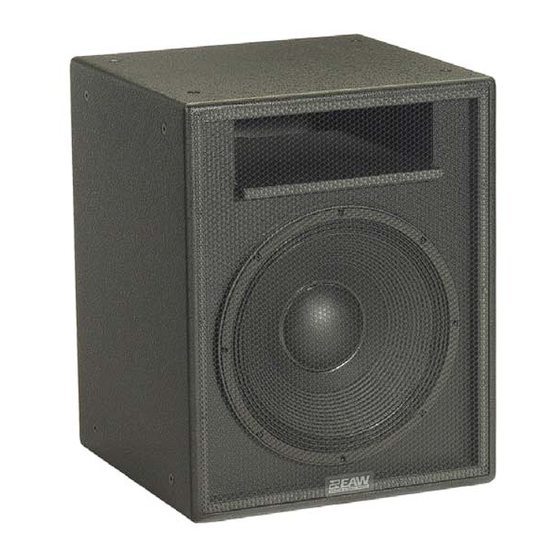

The SB150zP is a high output, compact subwoofer system. This
versatile, all-purpose subwoofer is designed for permanent
installation where the solid-sounding output of a 15 inch driver is
desired. The SB150zP works well with most full-range
loudspeakers in a variety of applications including: small houses
of worship, A/V systems, hotel ballrooms, meeting rooms,
classrooms, exhibit areas, f/x reinforcement, cruise ships,
cinemas, TV studios, restaurants, and small retail spaces.
The SB150zP is designed to be used with today's sophisticated
digital signal processing to optimize the LF response. EAW's MX
Series processors are recommended for the required crossover
and equalization.
Six Year Warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
15 INCH SUBWOOFER
See TABULAR DATA notes for details, half space = floor-mounted
CONFIGURATION
Subsystem
Transducer
SUB 1x 15 in cone
Operating Mode
Amplifier Channels
Single-amp LF
1
PERFORMANCE
Operating Range 34 Hz to 145 Hz
Nominal Beamwidth
Horz 360°
Vert 360°
Axial Sensitivity (SPL)
LF (whole space) 94 dB
(half space) 100 dB
Input Impedance (ohms)
Nominal
LF 8
High Pass Filter
High Pass =>30 Hz, 12 dB/octave Butterworth
2
Accelerated Life Test
LF 65 V
Transducer (AES) 700 W
Calculated Axial Output Limit (SPL)
Average
LF (whole space) 121 dB
(half space) 127 dB
ORDERING DATA
Description
SB150zP 15 inch Subwoofer Black
SB150zP 15 inch Subwoofer White
SB150zP 15 inch Subwoofer Black WP
Optional Accessories
3/8-16 Forged Shoulder Eyebolt
group · I
Loading
Vented
External Signal Processing
DSP w/1-way filter
34 Hz to 145 Hz
34 Hz to 145 Hz
Minimum
6.9 @ 40 Hz
525 W @ 8 ohm
Peak
127 dB
133 dB
Part Number
0008960
0012192
0009038
104001
Part Number: RD0308 (A) SB150zP April 2005
