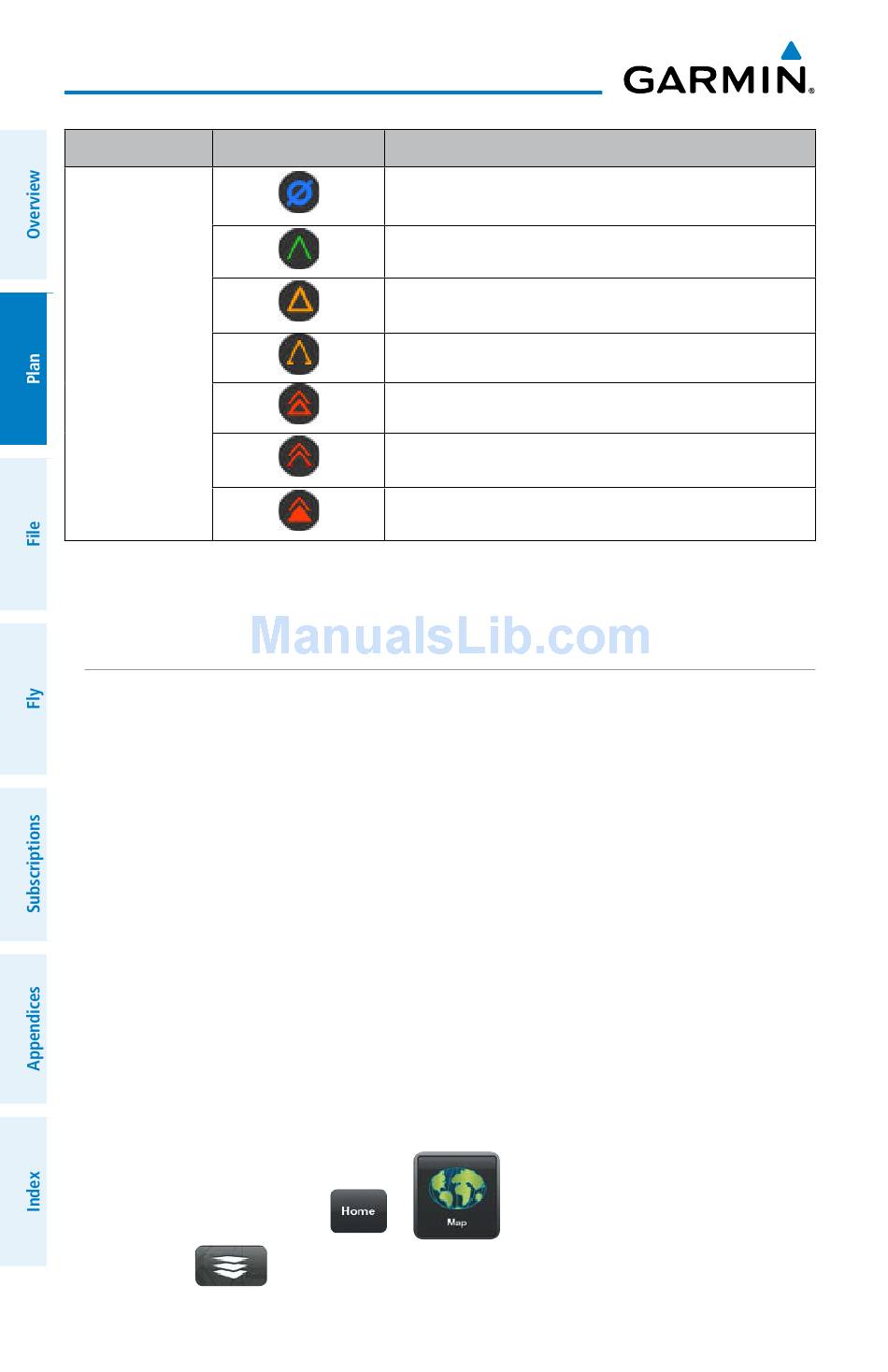

PIREP TYPE
Turbulence

WEATHER OVERLAY

The Weather Overlay provides weather icons that graphically display one of 14
parameters typically reported in a METAR. Each icon can be touched to display the
current METAR data in both raw and translated formats. Color coded icons provide a
quick visual representation of the current weather conditions. Blue icons indicate VFR
conditions, Green icons indicate MVFR conditions, Yellow icons indicate IFR conditions
and Red icons indicate LIFR conditions. The color coding applies to Station ID, Flight
Conditions, Cloud Ceiling, Visibility, and Cloud Cover.
Wind barbs and wind speed icons are slightly different where green is used to
indicate winds of less than 10 kts, yellow is for winds greater than 10 kts and red is
used for winds greater than 20 kts. Colored icons are also used to show dew point
spread where the spreads for five degrees or greater are green, spreads of three or four
degrees are yellow and spreads of two degrees or less are red.

Viewing and Configuring the Weather Overlay:

1) From any page touch
2) Touch
74
Icons
Turbulence Negligible or Smooth
Light Turbulence
Light to Moderate Turbulence
Moderate Turbulence
Moderate to Severe Turbulence
Severe Turbulence
Extreme Turbulence

PIREP Icons

>
select 'Weather' from the Map Overlay menu.
