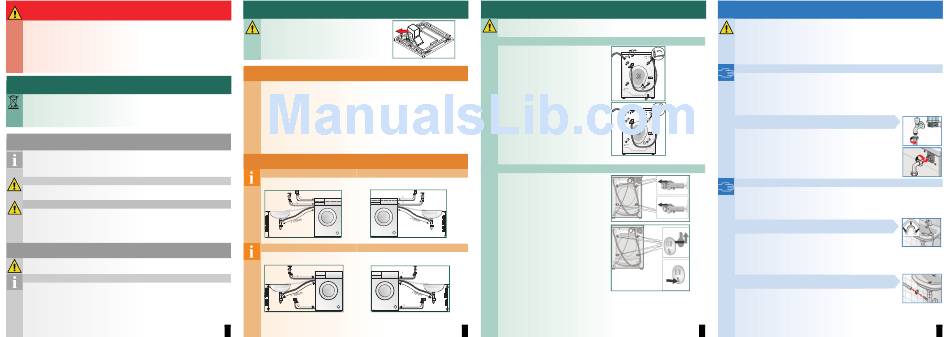

Safety instructions
– The washing machine is heavy – take care when lifting it.
– Warning: Frozen hoses may tear/burst. Do not install the washing machine outdoors and/
or in areas where there is a risk of frost.
– The washing machine may be damaged. Do not lift the machine by any of its projecting
parts (e.g. the washing machine door).
– In addition to the instructions mentioned here, special regulations regarding the relevant
water and power supply companies may apply.
– If in doubt, have the appliance connected by a technician.
– Lay hoses and cables in such a way that there is no risk of tripping.
Environmentally-friendly disposal
– Dispose of packaging in an environmentally friendly manner.
– This appliance has been identified in accordance with the European Directive 2002/96/
EEC on Waste Electrical and Electronic Equipment (WEEE). This directive specifies a
framework for the return and recycling of waste appliances, and is valid throughout Europe.
Installation area
– It is important to ensure that the machine is stable to prevent it from "wandering"!
– The installation area must be firm and level.
– Soft floors/floor coverings, e.g. carpets, are not suitable.
– Keep the surrounding area dry and well-vented.
If installing the appliance on a stand
– It is essential to secure the washing machine feet using holding brackets*.
If installing the appliance on a wooden joist floor
– If possible, install the washing machine in a corner.
– Screw a water-resistant wooden panel (min. 30 mm thick) to the floor.
It is essential to secure the washing machine feet using holding brackets*.
*The holding brackets can be obtained from a specialist store or from after-sales service.
Built-under/built-in appliances
Build these appliances under/in before connection to the power supply.
Installed in between kitchen units (built-under or built-in)
– 60 cm cavity width required.
– Install the washing machine only under a continuous worktop that is connected firmly to the
adjacent cupboards.
For safety reasons in built-under installation, a metal cover* must be assembled by a
specialist in place of the appliance cover plate.
*The metal cover can be obtained from a specialist store or from after-sales service.
Removing the packaging
Please remove the bottom foam and also foam support
from the bottom of appliance when you are removing the
packaging!
Standard accessories
– Water inlet hose.
– Water drainage hose.
– Elbow for attaching the water drainage hose e.g. to a wash basin.
– Power cord.
– Covers for holes left by removing the transport bolts.
Depending on the connection
– A 24-40 mm dia. hose clip may also be required for connecting the siphon (available from
specialist retailers). -> Page 4: Water connection
Useful tools
– Spirit level for aligning the appliance.
Spanner for adjusting the appliance feet.
Hose and cable lengths
For WM, WAX, WAE series
Connection on left side Connection on right side
100cm
150cm
140cm 110cm
For WS, WLX, WLG series
Connection on left side Connection on right side
90cm
145cm
100-130cm
150-180cm
Available from dealer/after-sales service:
– Extended water inlet hose, approx. 2.20 m
1
Removing the transport bolts
– Before using the appliance for the first time, always remove and retain all 4 transport bolts
from the back of appliance.
– Be careful when handling these to avoid injury.
For WM, WAX, WAE series
1. Use a spanner to loosen all fixing bolts (A) until
they turn freely.
2. Remove the four parts (B). They will fall to the floor
when you tip the machine.
3. Insert the covers (C), which you will find in the bag
containing the documentation.
D
For WS, WLX, WLG series
1. Use a spanner to loosen the four bolts until they
turn freely, and then remove them.
2. Insert the covers, which you will find in the bag
containing the documentation.
2
Water connection
– To prevent leaks or water damage, follow the instructions in this chapter.
– Note: Operate the washing machine with cold water only.
Do not connect to a mixer tap of a unpressurised boiler.
– Do not remove the water inlet hose frequently as the loose connection will lead to leaks.
We recommend that you use a water inlet hose that is specially made for the machine.
– Do not use a used inlet hose. Only use the inlet hose supplied or one that was purchased
from an authorised specialist dealer.
– If in doubt, have the appliance connected by a technician.
Water supply
Water inlet hose:
Note: Do not bend, crush, modify or cut through the hose (the strength is no longer
guaranteed).
Optimum water pressure in the mains: 100-1000 kPa (1-10 bar)
– When the tap is turned on, the water flow should be at least 8 l/min.
– If the water pressure is higher, install a pressure reducing valve.
1. Connect the water inlet hose to the tap.
Tighten the plastic screw-fittings by hand only.
2. Carefully turn on the tap and check that the connection
C
points are not leaking.
Note: The screw connection is under water mains
pressure.
Water drainage
Water drainage hose:
Note: Do not bend or stretch the hose.
Height difference between the installation area and outlet: max. 100 cm
Drainage into a sink/bath tub:
Note: Secure the drainage hose to prevent it from slipping out of
the sink.
Note: The plug must not be in the plug hole. When the water is being
pumped out of the washing machine, check that the water drains away
quickly enough. Do not insert the end of the drainage hose in the water that
has been pumped out. There is a risk that water will be drawn back into the
washing machine.
Drainage into a siphon:
Note: Secure the connection with a 24-40 mm dia. hose clip
(available from a specialist retailer).
3
min10mm
