Package contents Check your ASUS Xonar U3 external USB audio card package for the following items: • ASUS Xonar U3 external USB audio card • S/PDIF TOSLINK optical adapter x • Driver / User Manual CD x •...
The version and content of the support CD are subject to change without notice. To install the device driver: Insert the ASUS Xonar U3 support CD into your optical drive. If Autorun is enabled, the ASUS Xonar Card Driver screen appears automatically. Go to step 4. If Autorun is not enabled in your computer, perform step 2.

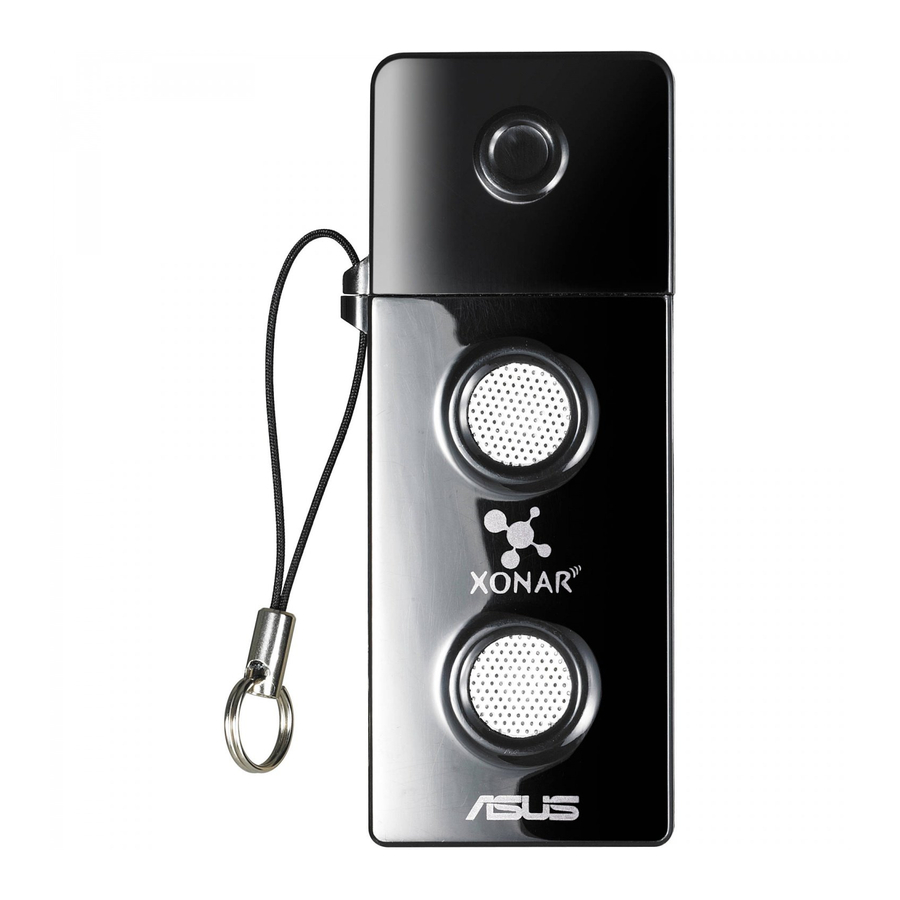

5.1 Xonar U3 external USB audio card layout Light indicator Status Description Play music (not Mute) LED on Play music (Mute) LED off Idle (not Mute) LED on Idle (Mute) LED off Headphone & S/PDIF-Out port Mic & Line-in port Xonar U3 Quick Start Guide...
Connecting speakers For Analog Spakers 2 Speakers 2.1 Speakers Xonar U3 Quick Start Guide...
Page 6
For Digital Speakers SPDIF Out Plug the optical TOSLINK adapter into the S/PDIF-Out port. Then, connect your decoder’s S/PDIF In port to the optical adapter with a TOSLINK optical cable. The TOSLINK optical cable is purchased separately. Connecting headphone / microphone Xonar U3 Quick Start Guide...
Contenu de la boîte Vérifiez que la boîte de votre carte son USB ASUS Xonar U3 contient les éléments suivants : • Carte son USB ASUS Xonar U3 • Adaptateur S/PDIF optique TOSLINK x • CD de support (incluant le guide d’utilisation et le pilote) x 1 • Guide de démarrage rapide x Pré-requis système Avant d’installer la carte son USB Xonar U3, assurez-vous que votre ordinateur puisse satisfaire aux critères suivants : • Ordinateur intégrant un port USB 2.0/. (ou supérieur) disponible pour la carte son USB •...
Page 11
La version et le contenu du CD de support peuvent changer sans avertissement préalable. Pour installer le pilote audio de la carte son : Insérez le CD de support de la carte son ASUS Xonar U3 dans votre lecteur optique. Si l’Exécution automatique est activée, l’écran d’installation du pilote de la carte son ASUS apparaît automatiquement. Passez à l’étape 4. Si l’Exécution automatique n’est pas activée...
Page 12
Présentation de la carte son 5.1 Diagramme de la carte son USB Xonar U3 Voyant lumineux État Description Lecture audio (sourdine désactivée) Voyant allumé Lecture audio (sourdine activée) Voyant éteint Carte son inactive (sourdine désactivée) Voyant allumé Carte son inactive (sourdine activée) Voyant éteint Prise casque et sortie S/PDIF Prise micro et entrée audio...
Page 13
Connexion de haut-parleurs Haut-parleurs analogiques Configuration 2.0 Configuration 2.1 Xonar U3 - Guide de démarrage rapide...
Page 14
Haut-parleurs numériques Sortie SPDIF Connectez l’adaptateur TOSLINK optique sur la prise S/PDIF. Puis, raccordez le port d’entrée S/PDIF de votre source audio avec l’autre extrémité de l’adaptateur optique du câble TOSLINK.. Le câble optique TOSLINK est vendu séparément. Connexion d’un casque / microphone Xonar U3 - Guide de démarrage rapide...
Page 15
Connexion d’autres sources audio Lecteur CD Lecteur MP3 Xonar U3 - Guide de démarrage rapide...
Page 18
Verpackungsinhalt Vor der Installation überprüfen Sie die Verpackung Ihres ASUS Xonar U3 auf folgenden Inhalt: • ASUS Xonar U3 external USB audio card • S/PDIF TOSLINK optical adapter x • Driver / User Manual CD x • Quick Start Guide x ...
Page 19
So installieren Sie die Gerätetreiber: Legen Sie die ASUS Xonar U3-Hilfs-CD in das optische Laufwerk ein. Wenn Autorun aktiviert ist, erscheint das Fenster für die ASUS Xonar-Treiber automatisch und Sie können mit Schritt 4 fortfahren. Wenn Autorun nicht aktiviert ist fahren Sie mit Schritt 2 fort.
Page 20
Hardware-Beschreibung 5.1 Xonar U3 externer USB-Audioadapter Anzeige-LED Status Beschreibung Musikwiedergabe (Ton ein) LED ein Musikwiedergabe (Ton aus) LED aus Leerlauf (Ton ein) LED ein Leerlauf (Ton aus) LED aus Kopfhörer- & S/PDIF-Ausgang Mikrofon & Line-In-Anschluss Xonar U3 Schnellstartanleitung...
Anschluß der Lautsprecher Für Analoglautsprecher 2 Lautsprecher 2.1 Lautsprecher Xonar U3 Schnellstartanleitung...
Page 22
Für Digitallautsprecher SPDIF-Ausgang Stecken Sie den optischen TOSLINK-Adapter in den S/PDIF-Combo-Ausgang. Verbinden Sie dann den S/PDIF-Eingang Ihres Decoders mit dem TOSLINK-Kabel mit dem optischen Adapter. Das optische TOSLINK-Kabel muss separat erworben werden. Anschluß von Kopfhörern/Mikrofon Xonar U3 Schnellstartanleitung...
Page 23
Anschluß einer Line-In-Audioquelle Xonar U3 Schnellstartanleitung...
Contenuto della confezione Controllare che nella confezione della scheda audio esterna USB ASUS Xonar U3 siano presenti i seguenti articoli: • Scheda audio esterna USB ASUS Xonar U3 • Adattatore ottico S/PDIF TOSLINK x • CD con Driver / Manuale Utente x •...
Installazione driver Dopo aver installato la scheda audio esterna USB ASUS Xonar U3 nel computer, è necessario installare il driver del dispositivo che abilita la scheda a funzionare con il sistema operativo Windows. La versione e il contenuto del CD di supporto sono soggetti a modifiche senza preavviso. Per installare il driver del dispositivo: Inserire il CD di supporto di ASUS Xonar U3 nell’unità ottica.
Descrizione hardware 5.1 Scheda audio esterna USB ASUS Xonar U3 Indicatore Luminoso Stato Descrizione Ripr. music. (audio on) LED acceso Ripr. music. (audio off) LED spento Inattivo (audio on) LED acceso Inattivo (audio off) LED spento Porta cuffie e S/PDIF-Out Porta Mic & Line-in...
Page 30
Per altoparlanti digitali Uscita SPDIF Inserire l’adattatore ottico TOSLINK nella porta S/PDIF-Out. Quindi, collegare la porta S/PDIF In del decodificatore all’adattatore ottico mediante un cavo ottico TOSLINK. Il cavo ottico TOSLINK deve essere acquistato a parte. Connessione cuffie / microfono Guida Rapida - Xonar U3...
Contenido del paquete Revise el paquete de la tarjeta de audio USB externa ASUS Xonar U3 para comprobar que contiene los siguientes artículos: • Tarjeta de audio USB externa ASUS Xonar U3 • Adaptador óptico TOSLINK S/PDIF x •...
Si la función de ejecución automática está habilitada, aparecerá automáticamente la pantalla del controlador de la tarjeta ASUS Xonar. Siga con el paso 4. Si la función de ejecución automática no está habilitada en el equipo, continúe con el paso 2.
Presentación del hardware 5.1 Diseño de la tarjeta de audio USB externa Xonar U3 Indicador luminoso Estado Descripción Reproducir música (no silencio) LED encendido Reproducir música (silencio) LED apagado Inactividad (no silencio) LED encendido Inactividad (silencio) LED apagado Auriculares / puerto SPDIF Entrada de micrófono / Puerto de entrada de línea Xonar U3 - Guía de instalación rápida...
Conexión de los altavoces Para altavoces analógicos 2 altavoces 2.1 altavoces Xonar U3 - Guía de instalación rápida...
Page 38
Para altavoces digitales Salida S/PDIF Conecte el adaptador TOSLINK óptico en la salida combinada S/PDIF. A continuación, conecte el puerto de entrada S/PDIF del descodificador al adaptador óptico con el cable TOSLINK. El cable óptico TOSLINK debe adquirirse por separado. Conexión de los auriculares y el micrófono Xonar U3 - Guía de instalación rápida...
Page 39
Conexión de las fuentes de audio a la Entrada de línea Xonar U3 - Guía de instalación rápida...
Conteúdo da embalagem Verifique se a embalagem da sua placa de áudio externa USB ASUS Xonar U3 contém os seguintes itens: • Placa de áudio externa USB ASUS Xonar U3 • x Adaptador óptico S/PDIF TOSLINK • x CD de controladores / manual do utilizador • x Guia de consulta rápida Requisitos do sistema Para garantir uma correcta instalação da placa de áudio externa USB Xonar U3, o seu computador...
A versão e o conteúdo do CD da unidade estão sujeitas a alterações sem aviso prévio. Para instalar os controladores do dispositivo: Introduza o CD de suporte da ASUS Xonar U3 na unidade óptica. Se a execução automática estiver activa, o ecrã dos controladores da ASUS Xonar aparece automaticamente. Siga para o passo 4.
Page 44
Introdução ao Hardware 5.1 Esquema da placa de áudio externa USB Xonar U3 Luz indicadora Estado Descrição Reproduzir música (com som) LED ligado Reproduzir música (sem som) LED desligado Suspensão (com som) LED ligado Suspensão (sem som) LED desligado Auscultadores & Porta de saída S/PDIF Entrada de microfone &...
Page 45
Ligar os altifalantes Para altifalantes analógicos 2 altifalantes 2.1 altifalantes Guia de instalação rápida da Xonar U3...
Page 46
Para altifalantes digitais Saída SPDIF Ligue o adaptador óptico TOSLINK na porta de saída S/PDIF. De seguida, ligue a porta de entrada S/PDIF do seu descodificador ao adaptador óptico com um cabo óptico TOSLINK. O cabo óptico TOSLINK é comprado separadamente. Ligação de auscultadores/microfone Guia de instalação rápida da Xonar U3...
Page 47
Ligação a fontes de entrada de linha (Line-in) Guia de instalação rápida da Xonar U3...
Комплект поставки В комплект поставкиASUS Xonar U3 входит следующее: • Внешняя USB аудиокарта ASUS Xonar U3 • Оптический адаптер S/PDIF TOSLINK x 1 • Компакт-диск с драйверами и руководством пользователя х 1 • Краткое руководство х 1 Системные требования Для успешной установки Xonar U3, Ваш компьютер должен соответствовать следующим требованиям: •...
Следуйте инструкциям на экране для завершения установки. В процессе установки прочитайте ЛИЦЕНЗИОННОЕ СОГЛАШЕНИЕ, убедитесь, что Вы его понимаете и принимаете его перед продолжением установки. По окончании установки, Вам предложат перезагрузить компьютер. Если желаете, можете перезагрузить компьютер позже. Краткое руководство для ASUS Xonar U3...
Page 52
Индикатор Состояние Описание Воспроизведение звука (звук включен) Индикатор включен Воспроизведение звука (звук отключен) Индикатор выключен Ожидание (звук включен) Индикатор включен Ожидание (звук отключен) Индикатор выключен Выход на наушники и S/PDIF-Out Микрофон и линейный вход Краткое руководство для ASUS Xonar U3...
Подключение колонок Для аналоговых колонок 2 Колонки 2.1 Колонки Краткое руководство для ASUS Xonar U3...
Page 54
Для цифровых колонок SPDIF Out Подключите оптический TOSLINK адаптер к S/PDIF-выходу. Затем, с помощью оптического кабеля TOSLINK подключите Ваш S/PDIF декодер к оптическому адаптеру. Оптический кабельTOSLINK приобретается отдельно. Подключение наушников / микрофона Краткое руководство для ASUS Xonar U3...
Page 55
Подключение источников звука Краткое руководство для ASUS Xonar U3...
