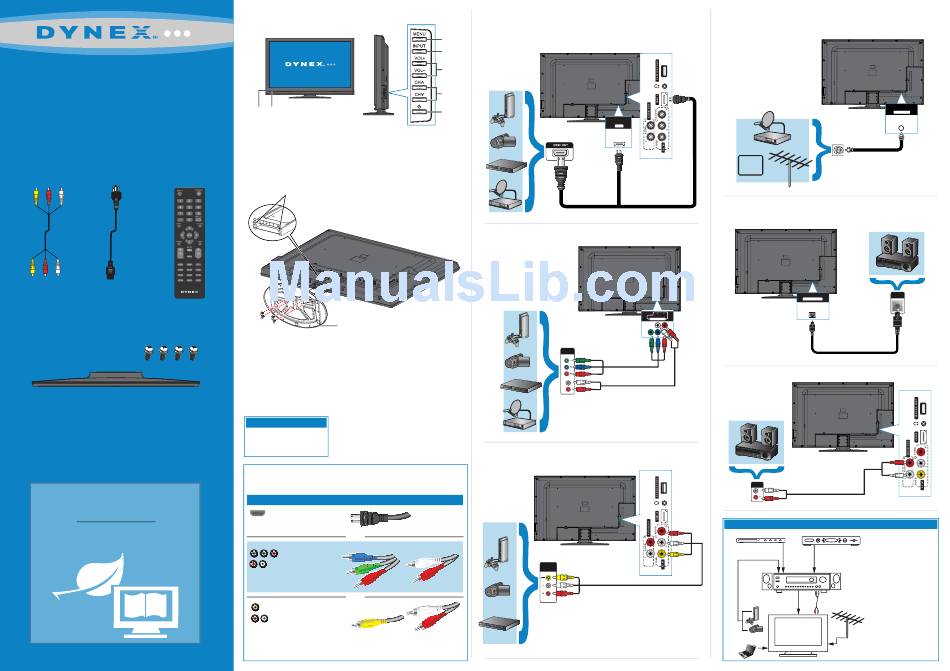

Dynex DX-46L261A12 Quick Setup Manual

46" LCD TV 1080p

QUICK SETUP GUIDE

DX-46L261A12
Composite AC power cord
cable
Remote control
and
2 AAA batteries
TV stand and 4 screws (M5, 8 mm)
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Front features
Remote Power
control indicator
sensor
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Align the stand to the TV and secure it to the stand column with the screws
provided.
Locators
Locating
grooves
M5 screws
Stand
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the screws that secure the base to the stand, then remove the base.
3 Remove the screws that secure the stand column, then remove the column.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to
be supported by a UL Listed
wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray DVD player,
cable box, satellite receiver, or game station
Menu Using HDMI (best)
Input
Volume
+/-
Channel
▼/▲
Power
button
HDMI 1
Using component cables (better)
AUDIO/VIDEO
OUT
Using composite cables (good)
AUDIO/VIDEO
OUT
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back of
your TV and to the Antenna/Cable wall jack.
CABLE
OR
Connecting a Home Theater System
Using Digital Optical audio
DIGITAL OUTPUT
L AUDIO R
Y P B P R
COMPONENT IN
Using Analog audio
AUDIO IN
Connecting a home theater system with multiple devices
Cable or satellite TV box
Blu-ray player/DVD player/VCR
AV receiver
Game console Audio cable
or camera (optional)
Computer
ANT/CABLE IN
OPTICAL
AUDIO IN
We recommend that you connect
the AV receiver's HDMI OUT jack
to your TV's HDMI IN jack.
Antenna or
cable TV
(no box)
