Dynasty Spas SC-MP-DY5 Quick Reference Card

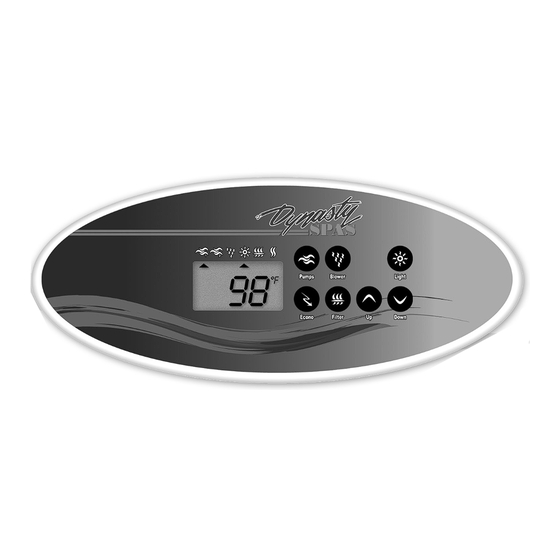

The Quick Reference Card provides a quick overview of your spa's main
functions and the operations accessible with your digital control pad.
Starting Pump 1 & Pump 2:
Press Pumps once to turn pump 1 on at low
speed. Pressing a second time turns Pump 1 and
Pump 2 to high speed. A third time turns both
pumps off. A built-in timer automatically turns
pumps off after 20 minutes (Pump 1 low speed
after 2 hours), unless manually deactivated first.
The "Pump 1" indicator flashes
when Pump 1 is on at low speed.
"Pump 1" and "Pump 2" indicators
light up when both pumps are on
at high speed.
Starting the blower:
Press Blower once to turn blower on. Pressing a
second time turns blower off. A built-in timer auto-
matically turns blower off after 20 minutes, unless
manually deactivated first.
The "Blower" indicator lights up
when blower is on.

Setting water temperature:

Use Up or Down arrow keys to regulate water
temperature. The temperature setting will be
displayed for 5 seconds to confirm your new
selection.
The "Set Point" indicator displays the
desired temperature, NOT the current
water temperature!
Water temperature can be adjusted by 1˚ in-
crements from 59 to 104˚F (15 to 40˚C).
Temperature display unit:
Press and hold Light key for 5 seconds to display
water temperature in either Fahrenheit (˚F) or
Celsius (˚C). If a power-up occurs, system re-
turns to default setting (˚F).
SC-MP-DY5/Dual-PumpSystem
QuickReferenceCard
Turning the light on:
Press Light to turn light on. Pressing a second time
turns light off. A built-in timer automatically turns
light off after 2 hours, unless manually deactivated
first.
The "Light" indicator is displayed
when light is on.
Fiber Box Option: If spa has an optional fiber box,
press Light key to turn fiber box (motor and light)
on. Pressing a second time turns fiber box off but
leaves light on. A third time turns both motor and
light off. A built-in timer turns fiber box off after
2 hours, unless it has been manually deactivated.
The "Light" indicator is displayed when fiber box
light is on. It flashes when fiber box motor and light
are on at the same time.
LED Light Option:
If spa has an optional LED
light, press Light key to turn LED lights on. To
advance to the next color/display setting, press
Light key twice. The LEDs will go off with the first
press, then back on in the next setting with the
second press. If the LEDs remain off for more
than 5 sec., the color/ display sequence will reset
and start back at the beginning the next time the
Light key is pressed. Color/ display sequences are:
1• LEDs light up and slowly cycle through all six
colors. The slow cycle restarts at the begin-
ning and repeats.
2• LEDs light up and remain on in Aqua.
3• LEDs light up and remain on in Purple.
4• LEDs light up and remain on in Blue.
5• LEDs light up and remain on in Gold.
6• LEDs light up and remain on in Green.
7• LEDs light up and remain on in Red.
8• LEDs light up for 2 sec., flash off, then flash
on in the next color until all six colors have
been displayed. The flashing cycle then
repeats itself.
9• LEDs flash on/off quickly for a strobe light
effect. A built-in timer turns lights off after
2 hours unless manually deactivated first.
The "Light" icon is displayed
when LED light is on.
