- Page 1 Paging/Background Music Systems How to Design and Sell Paging and Background Music Systems from EV & Dynacord...
- Page 2 DISCLAIMER & COPYRIGHT The material and instructions covered in the document are subject to change without notice. Telex Communications, Inc. does not guarantee the suitability of the material contained herein for your particular application. Copyright © 2003 Telex Communications, Inc. All rights reserved.
-
Page 3: Table Of Contents
Converting Coverage Specs to A Layout... 19 An Example of Coverage Pattern vs. Speaker Size ... 19 When Controlled Coverage is Needed ... 20 The Use of Subwoofers ... 20 Positioning Subwoofer Components... 21 Choosing the Best Mixer/Amplifier ... 21 ElectroVoice/Dynacord BGM Guide Page 3... - Page 4 Appendix A: Distributed Audio Systems – A Primer ... 37 Why Is It Called “Constant Voltage”?... 37 What Are the Advantages to Constant Voltage Systems? ... 37 Amplifier Bridging ... 38 Single-Channel Direct Drive... 38 Use of Autotransformers ... 39 ElectroVoice/Dynacord BGM Guide Page 4...
-
Page 5: The Business Audio "Business
We can't design systems the way we used to, using obsolete rules of thumb or just substituting a louder, low-quality sound for a quieter one and calling it a job well done. ElectroVoice/Dynacord BGM Guide The EV Advantage Over 50 years of proven performance. - Page 6 This guide is a comprehensive set of design tools and extensive product information to help you understand the world of Business Audio and the broad range of offerings EV/Dynacord makes available to you to service this dynamic and fast growing market.
-
Page 7: Ev Business Audio Product Guide
EVID 6.2 and 4.2 contributes to the controlled coverage without adding distortion. It’s size, shape and depth are optimized for crossover transition, linear response on and off axis, and even coverage over a 100° x 120°. ElectroVoice/Dynacord BGM Guide Page 7... -
Page 8: Outdoor Ready" Construction
The result was a speaker that had the same poor intelligibility problems when used in reverberant room as conventional ceiling speakers. ElectroVoice/Dynacord BGM Guide Page 8... -
Page 9: The Evid 4.2, 8.2 And 8.2L - Full Range Models With Punch
EV has provided a wide range of component ceiling speakers for many years. Contractors have come to expect value and performance for every EV model. Component ceiling speakers are often a good solution when specific requirements of the job dictate using an unconventional ElectroVoice/Dynacord BGM Guide Page 9... -
Page 10: Ev Amplification Products
The speaker output is available at a barrier strip which includes terminals for driving low impedance loudspeaker loads, as well as 25, 70.7 or 100 volt distributed systems. ElectroVoice/Dynacord BGM Guide Size Acoustic Design 4”... -
Page 11: Primary Features
70v-capable models feature Transformer Saturation Protection (TSP) that monitors the current demands of the transformer and can protect against overload and distortion. All models are equipped with extremely quiet fans providing front-to-rear air circulation, guaranteeing trouble-free operation even in smaller power amplifier rack systems. ElectroVoice/Dynacord BGM Guide Page 11... -
Page 12: Key Cps Amplifier Product Features
Anyway, in most cases the permanent connection of a computer bears benefits, like displaying detailed status reports or the printing of protocols. It also offers the possibility for remote diagnosis and remote maintenance via modem. ElectroVoice/Dynacord BGM Guide Benefit Ensures that the amplifier will never reach a critical operating temperature thus preventing any thermal damage. -
Page 13: Basic System Components
• Pilot tone and ground fault surveillance (optionally available) • Fault indication and fault messaging via floating READY-contact ElectroVoice/Dynacord BGM Guide Description Central Unit Matrix System Processor Input Module: 2 Channel Aux (RCA Phono Connectors) Input Module: Combination Mic/Line + Paging Console... -
Page 14: Basic Business Audio System Design Guide
Amplification EV and Dynacord Amplifiers provide exception performance and reliability. The range of offerings is impressive as well. From the MA series of rack mount mixer amplifiers to the CPS and ProAnnounce series of power amplifiers any application can be covered. -
Page 15: Step 2 - Determine The Acoustic Requirements
ProAnnounce designer software if a pro announce based system is being employed. If a simpler system is used then often a basic charting package such as Visio is adequate to lay out the system. ElectroVoice/Dynacord BGM Guide Page 15... -
Page 16: Step 4 - Assemble The Equipment List
If the building manager tells your installers to put the amp racks in the basement you don’t want the owners calling you and insisting that they should have been in the second floor office ElectroVoice/Dynacord BGM Guide Page 16... -
Page 17: Standardizing For Profitability
In addition to the spacing pattern, the designer must choose between three density types, designated respectively as edge-to-edge, minimum overlap and center-to-center (see Figure 1). The greater the overlap, the more uniform the coverage — and the higher the cost. Budgetary ElectroVoice/Dynacord BGM Guide Page 17... -
Page 18: Ceiling Speaker Coverage
The actual listening-plane coverage depends on the polar plot of each speaker. On average, the coverage of the listening plane from a speaker with a 140° polar coverage is usually between 90° and 110° . ElectroVoice/Dynacord BGM Guide Page 18... -
Page 19: Converting Coverage Specs To A Layout
— at a significant savings — by using specially designed 4-inch elements. Characterized by somewhat smoother frequency response and less susceptibility to feedback than 8-inch elements, 4-inch units are also generally less expensive and offer a real advantage in reduced directivity. ElectroVoice/Dynacord BGM Guide Page 19... -
Page 20: When Controlled Coverage Is Needed
The number of subwoofers to use, where to position them, how to set the taps (on 70V/100V subs) and how loud to run them vary depending on the characteristics of each installation. Criteria ElectroVoice/Dynacord BGM Guide Page 20... -
Page 21: Positioning Subwoofer Components
The first step in selecting a mixer/amplifier is to examine the demands of the application. What are the intended uses for the system? Will background or foreground music be required in addition to paging? If so, from what type of source: FM/AM radio, tape, or both? Where will pages ElectroVoice/Dynacord BGM Guide Page 21... -
Page 22: When To Specify Mixer/Amplifiers
The majority of practical installations fall within this category. In professional buildings, office structures, warehouse paging ElectroVoice/Dynacord BGM Guide Page 22... -
Page 23: When The Job Calls For Proannounce
The DRM4000 can be used either in a stand- alone mode or in conjunction with the DPM 4000. The DRM 4000 can be used to enhance the DPM 4000’s input and output capabilities. The DRM 4000 features eight stereo RCA inputs, four ElectroVoice/Dynacord BGM Guide Page 23... -
Page 24: Volume And Tone Controls / Delays
It is also possible to connect external switches, breakers, rotary controls or rotary encoders, respectively to query control outputs of external units (power supplies, power amplifiers). ElectroVoice/Dynacord BGM Guide Page 24... -
Page 25: Clock / Calendar
Besides its control inputs and control outputs, the ProAnnounce system provides additional interface ports. The connection of paging consoles to the ProAnnounce manager DPM 4000 is performed via serial RS-485 ports. This allows connecting up to four terminals at a single port. ElectroVoice/Dynacord BGM Guide Page 25... -
Page 26: Station Control Consoles
4xxR cards are identical in function to the standard cards, but use a card cage with a backplane for interconnection. The ProAnnounce™ Designer software only refers to the standard DCS 4xx cards, however they are interchangeable. ElectroVoice/Dynacord BGM Guide Page 26... -
Page 27: The Dcs 400 Expansion Chassis
The following pages show a variety of system examples using all of the components we have talked about in the preceding pages. These systems are practical, real world, examples you can adapt and use for your own installations. ElectroVoice/Dynacord BGM Guide Page 27... -
Page 28: Bgm Installations - System Examples

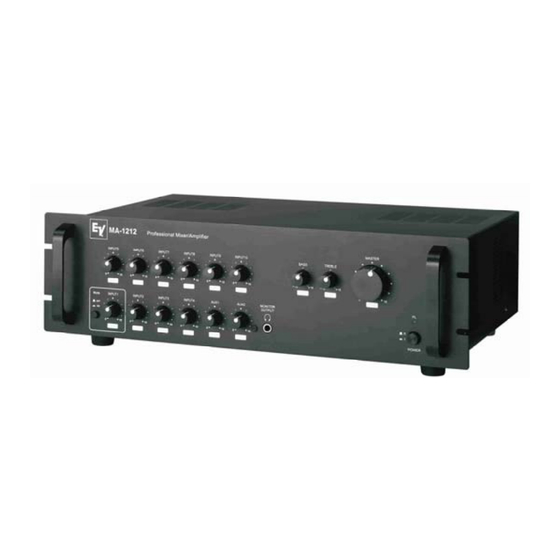

EVID C4.2 Main EVID C4.2 Restrooms EVID C10.1 Main Amplification MA1212 Office OTHER RELATED EQUIPMENT Various Various Various ElectroVoice/Dynacord BGM Guide Telephone Paging Paging Mic 2 - Stockroom Description Ceiling Speaker Ceiling Speaker Subwoofer Mixer/Amplifier Rack/Misc CD Player/Tuner Wire Subwoofer Quantity... -
Page 29: Office Building - 5 Zone - Simplified System
Office MP756 Office DCS408 Office DPP4002 Office OTHER RELATED EQUIPMENT Various Various Various ElectroVoice/Dynacord BGM Guide Zone 1 Zone Control lines DCS 408 Card 24v Power supply Description Paging Horn Ceiling Speaker 60 watt mixer/amplifer 4x100 power amplifier Paging Microphone... -
Page 30: Bar-Restaurant - 2 Zone
Office DPA4410 Office Office NRS90258 Office Various NRS90257 Office OTHER RELATED EQUIPMENT Various Various Various ElectroVoice/Dynacord BGM Guide Remote Main Restaurant Control Radio Tuner DRM4000 Hostess DPA4410 Sports Bar Sub Description Surface Mount Speaker Ceiling Speaker Subwoofer 8x2 Matrix Router... -
Page 31: Health Club - 4 Zone
DCS416R Office DCS400 Office DCS420 Office NRS90218 Office NRS90216 Office NRS90234 Office NRS90240 Zones OTHER RELATED EQUIPMENT ElectroVoice/Dynacord BGM Guide Snack Shop Pool Spin Room Remote Remote Remote Control Control Control Description Surface Mount Speaker Ceiling Speaker Underwater Speaker Subwoofer... -
Page 32: Retail Clothing Store -2 Zone
Office NRS90216 Office NRS90234 Office NRS90240 Various OTHER RELATED EQUIPMENT ElectroVoice/Dynacord BGM Guide n tailored more for high school and college have different tastes in clothing, music, and personal interests. Paging Mic - Cashier Mens Clothing Womens Remote Control Description... -
Page 33: Retail Book/Record Store -3 Zone
Office DCS416R Office DCS400 Office DCS420 Office NRS90216 Office NRS90234 Office NRS90240 Office OTHER RELATED EQUIPMENT ElectroVoice/Dynacord BGM Guide Coffee Shop Cashier CD Sales Remote Rem ote Control Control Rem ote Control Description Surface Mount Speaker Ceiling Speaker Ceiling Speaker... -
Page 34: Large Department Store - 6 Zone
DPA4260 DPA4410 DPP1004 DCS401R DCS408R DCS416R DCS400 NRS90218 NRS90216 NRS90234 NRS90240 OTHER RELATED EQUIPMENT ElectroVoice/Dynacord BGM Guide Description Speaker Ceiling Speaker Subwoofer Matrix Manager Message Manager 2x600 watt Power Amplifier 4x100 watt Power Amplifier Power supply Controller Board Relay Board... -
Page 35: Basic Warehouse - 5 Zone
PROANNOUNCE EQUIPMENT DPM4000 DPA4260 DPP1004 DCS401R DCS408R DCS400 NRS90216 NRS90234 OTHER RELATED EQUIPMENT ElectroVoice/Dynacord BGM Guide r paging through any phone system. Office Description Ceiling Speaker Paging Horn Matrix Manager 2x600 watt Power Amplifier Power supply Controller Board Relay Board... -
Page 36: Multi-Use Warehouse, Factory & Office Facility - 15 Zone
SPEAKER SYSTEMS PA430t Paging Horn Cobra IIIB Paging Horn w/ID60DT EVID C4.2 Ceiling Speaker EVID C10.1 Subwoofer OTHER RELATED EQUIPMENT Rack/Misc CD Player Wire/Misc ElectroVoice/Dynacord BGM Guide C4.2 C4.2 Office Eingineering Zones 1-5 Warehouse PA430t Quantity Model Description PROANNOUNCE EQUIPMENT DPM4000... -
Page 37: Appendix A: Distributed Audio Systems - A Primer
CV systems once employed integral output transformers. Virtually all modem professional transistor amplifiers deliver an output voltage that is essentially independent of load, however, making contemporary CV systems much easier to implement. ElectroVoice/Dynacord BGM Guide tive to the impedance of the Page 37... -
Page 38: Amplifier Bridging
Certainly, a 75 watt-per-channel professional power amplifier is well within the range of many system budgets. Given the state of contemporary amplifier technology, there is no reason why an amp of this power class could not drive two 25-volt branches directly. ElectroVoice/Dynacord BGM Guide tage distribution systems. lop 70 volts directly. -
Page 39: Use Of Autotransformers
Operating the power amplifier at the equivalent of a 4-ohm load utilizes all of its available power, for further cost efficiency. The extremely low insertion loss of the AT100 allows virtually all of that power to be transferred to the line, ma ximizing the capabilities of the system. ElectroVoice/Dynacord BGM Guide Page 39...
