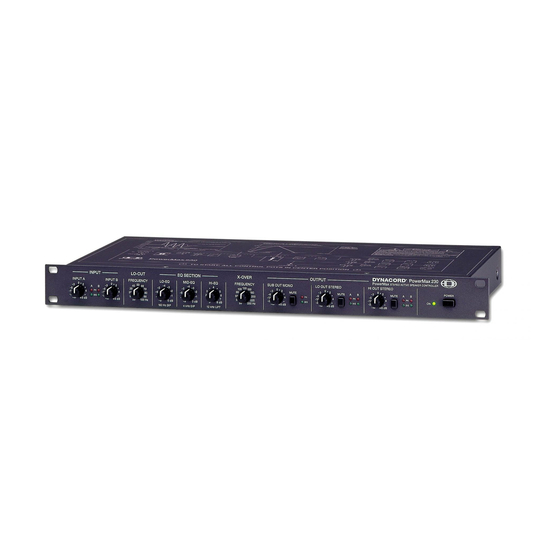

PowerMax 230 Controller
"PowerMax" - a crossover-function that provides improved SPL in the frequency
range around the crossover frequency, making it the ideal solution for systems
with relatively compact dimensioned full-range speakers plus sub woofer.
Meeting the highest requirements of modern audio appli-
cations is only possible when using active multi-compo-
nent loudspeaker systems which provide the possibility to
separately amplify and reproduce the audio signal's indi-
vidual frequency ranges. Active 2-way installations with
additional sub woofer systems probably offer the best
price/performance ratio. The low frequency range of the
audio signal is reproduced by the sub woofers while high-
quality full-range cabinets take care of the Mid/Hi fre-
quencies and vocals.
One essential advantage of active 2-way systems with
additional sub woofers is the fact that the vocals are not
divided between different speaker systems. This, in return,
offers more convenience when adjusting the sound
system. Opposite to active 3- or 4-way configurations,
difficult analysing and measuring of sound fields is
unnecessary.
Using individual sub woofer systems for each side is
essential on wider stages. Otherwise, the level differences
between bass and treble would result in audible degrada-
tion of the overall sound. Of course, adding a centrally
located sub woofer might additionally improve the sound
quality.
The PowerMax230 Controller has been designed for use in
high-performance installations that employ active 2-way
systems plus sub woofers. Applications like these also
mostly incorporate professional linear power amplifiers like
DYNACORD LINEAR- or STANDARD PRECISION power
14
S
I
G
N
A
L
amps. Installing and operating the PowerMax230 Control-
ler is easy as can be, since the user does not need to know
any complex detail about crossover functions and equali-
zation. All controls for matching the sound to different
acoustic conditions and loudspeaker systems are located
on the front panel. Difficult tasks - like electronic signal
routing and settings for instance - are automatically carried
out inside the appliance. The PowerMax12 crossover func-
tion optimally utilizes amplifier output power and loud-
speaker transmission capacities. Compared to conventional
crossovers or controllers, this results in an improved overall
sound quality, which is achieved with less effort.
The PowerMax230 Controller is also most suitable for inte-
gration in active 2-way instrument reinforcement applica-
tions for keyboards, E-bass and drums. The PowerMax12
x-over function eliminates the often complained about
"lack-of-punch-and-definition", like it is common for con-
ventional active musical instrument reinforcement systems.
The EQ-section provides additional tools:
The Lo-EQ is an adjustable LPN-filter for controlling the
"punch" while the Mid-EQ's 4 kHz dip-filter can be used
to reduce the sometimes aggressive sound of a horn
system. The Hi-EQ allows increasing the "clarity" depen-
ding on the desired degree of brilliance.
Its excellent dynamic range of more than 117dB, the
extremely low noise level and the outstanding price/
performance ratio makes the PowerMax230 Controller an
advantageous alternative to conventional crossover and
controller solutions – even in the critical field of permanent
installation.
P
R
O
C
E
S
S
I
N
G
