Summary of Contents for Dynacord Compact Mixing System

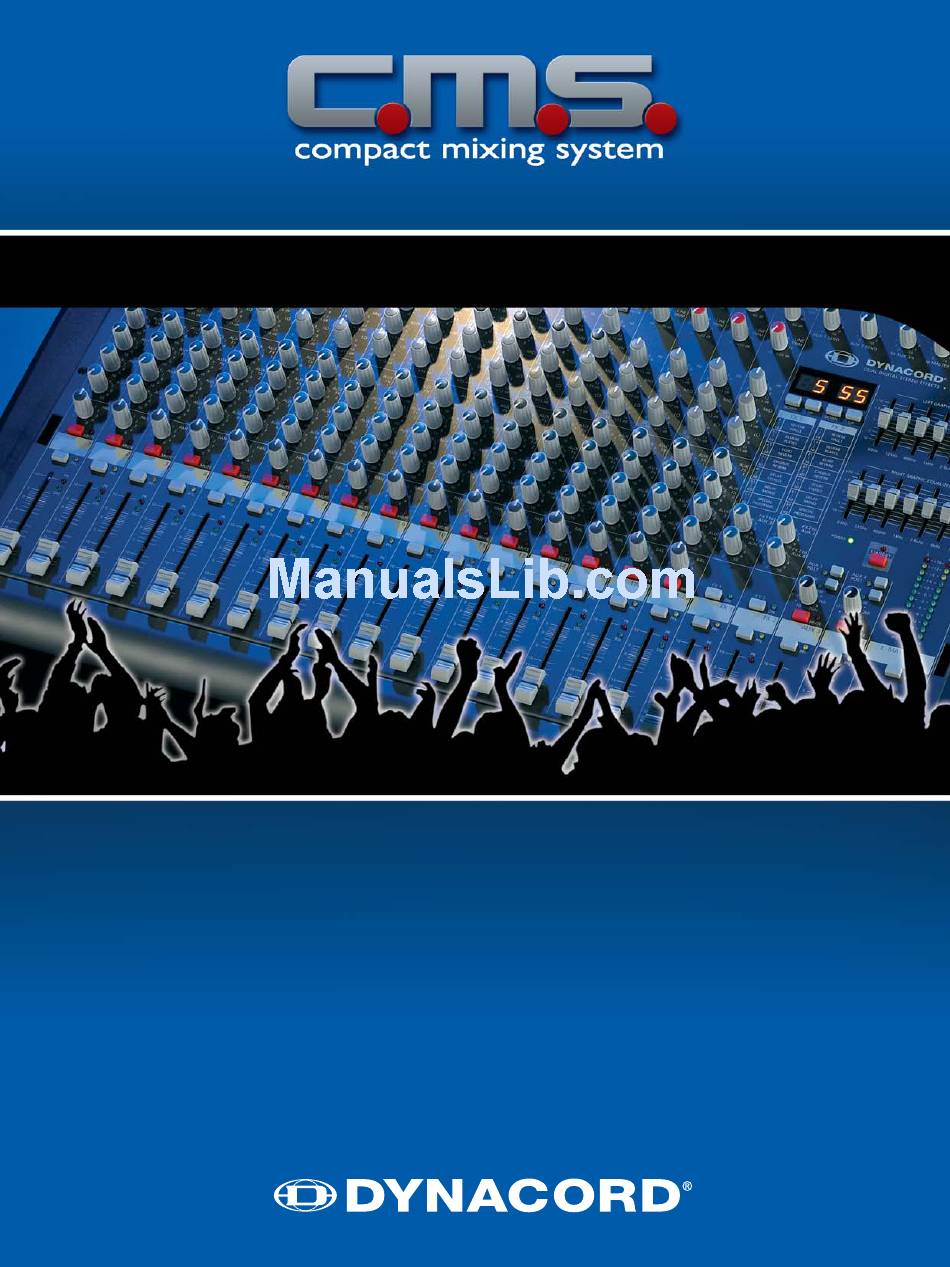

- Page 1 English...
- Page 2 The new CMS 1000 / CMS 1600 / CMS 2200 Compact Mixing Systems from DYNACORD are conceived as all-in-one solutions, easily transported and swiftly made ready for use. For the first time, customers are being offered a unit combining a substantial-in-...
- Page 3 The discrete microphone preamps in the input channels offering audio quality of the very finest, a 60 dB gain range, and extremely low levels of noise and THD, set new standards in professional mixing equipment, whilst phantom power (switchable in groups of six channels), 3-band semi-parametric EQs with sweepable mids, 4 Aux Sends, PFL and Mute, dust-protected ALPS faders, 2 x 7-band graphic EQs, two feedback filters and four stereo line channels are only a few...
- Page 4 All 6 / 12 / 18 (respectively) mic inputs of the CMS 1000 / CMS 1600 / CMS 2200 are equipped with XLR- (Mic) and jack (Line) sockets as well as a common Gain control with a range of 60 dB. This makes it possible to introduce even line level signals through the XLR Mic inputs.
- Page 5 If there is no need for EQ in the master section for the main system or room equalization, the integrated 2 x 7-band graphic equalizer can be looped into the monitor busses at the push of a button, making it available to AUX 3 and AUX 4 for the provision of an opti- mized foldback mix.
- Page 6 Compact Mixing System CMS 1000 / CMS 1600 and Powered Speaker AM12 System D-LITE 2000. (Aux 3) Typical configuration for Entertainer and smaller Live Bands but alt- hough, in the best way suitable for fixed installation in schools, restau- rants or pubs.
- Page 7 For secure operation on particularly dark stages or in dark control rooms, a socket is provided for the connection of a 12V (up to 5W) gooseneck lamp. Compact Mixing System CMS 1600 / Fx12 CMS 2200 and Sound Reinforce- 2 x Fx20 ment System Xa-2.
- Page 8 Channels (Mono + Stereo) Power Consumption Dimensions, (WxHxD), mm Weight MIC Gain (Mono) MIC Gain (Stereo) Stereo Line Trim THD+N at 1kHz, MBW=80kHz MIC input to Main L/R output, +16 dBu, typical Frequency Response, -3dB ref. 1kHz Any input to any Mixer output Crosstalk, 1kHz Fader and AUX-Send attenuation Channel to channel...
