Summary of Contents for ViewSonic E220 - 21" CRT Display
-

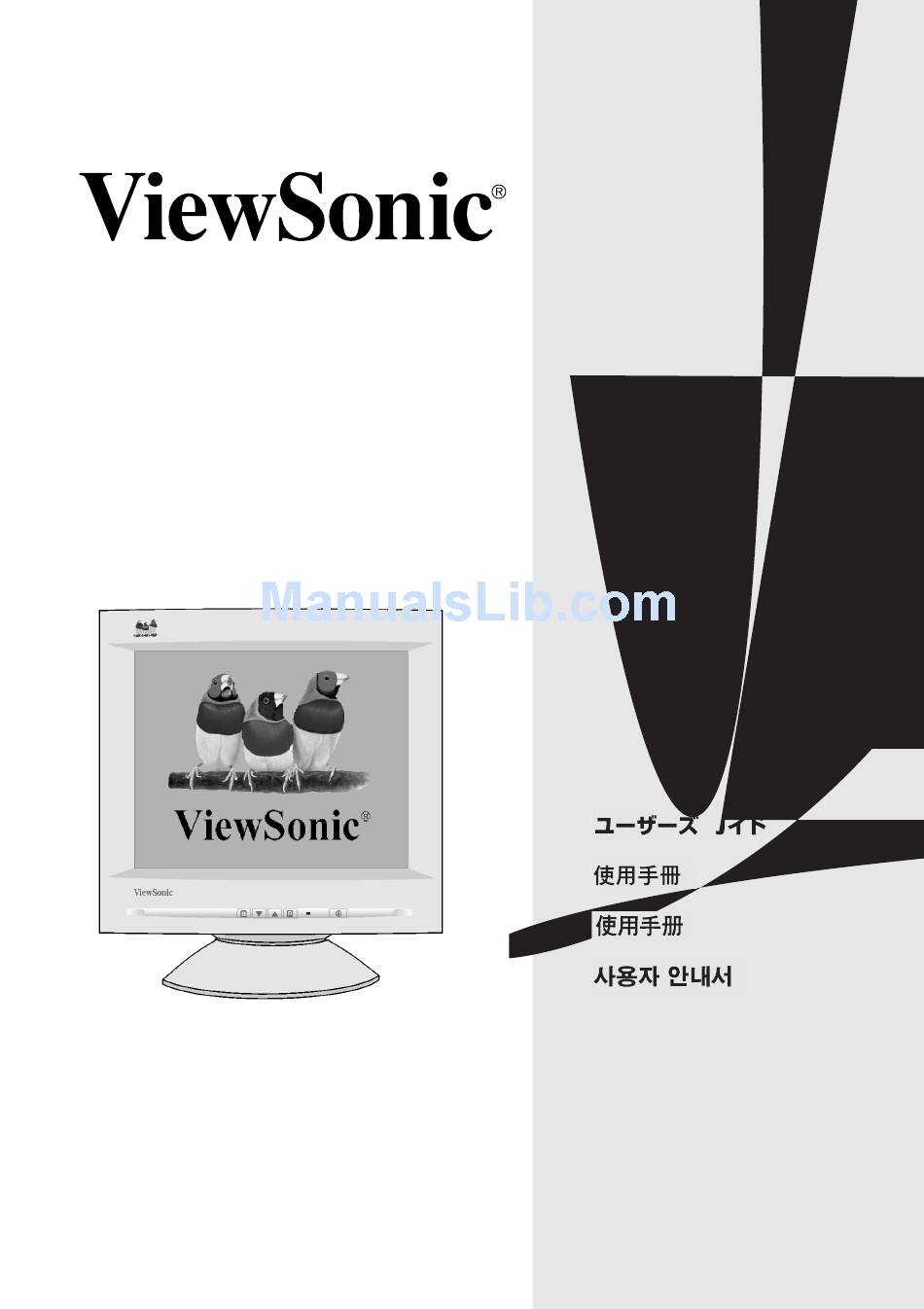

Page 1: Color Monitor
E220 Color Monitor User Guide Bedienungsanleitung Guía del usuario Guia do usuário With Plug & Play 21" (20" Viewable Diagonal) -
Page 2: Table Of Contents
Setting the Timing Mode ............5 OSD Lock Mode ..............5 Adjusting the Screen Image ..........6 Main Menu Controls ..............8 Other Information Specifications ..............11 Troubleshooting..............12 Customer Support ...............13 Cleaning the Monitor ............14 Limited Warranty ..............15 Appendix Safety Guidelines ..............16 Compliance Information ............17 ViewSonic E220... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product. -
Page 4: Getting Started
• E220 monitor • Video cable • Power cord • Quick Start Guide • ViewSonic Wizard CD-ROM (including User Guide PDF file and INF/ICM display optimization files) The supplied INF file ensures compatibility with Windows operating NOTE: systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. -
Page 5: Quick Installation
4 Install Display Optimization files www.viewsonic.com. (INF and ICM files) The ViewSonic Wizard CD-ROM also (1) Insert the ViewSonic Wizard CD-ROM provides an opportunity for you to print the into your computer’s CD-ROM drive. registration form which you may mail or fax to ViewSonic. -
Page 6: Using The Monitor
10 seconds. While in this mode, when any button is pushed, OSD Lock will display for five seconds. • To unlock the OSD menus, press and hold both the [1] button and the (up- arrow) button for 10 seconds. The message OSD Unlock appears on-screen. ViewSonic E220... -
Page 7: Adjusting The Screen Image
Displays Main Menu; also saves Power Light Power On/Off changes/exits Main Menu Displays control screen for Scroll through menu highlighted control (or pair options and adjust the of controls). Also, toggles displayed control between pairs of controls on some control screens ViewSonic E220... - Page 8 Press button [2] to toggle to the next control in the pair. To adjust the selected control, such as in the sample below, CONTRAST press the arrow buttons ( To save the control setting and Exit the menu press button [1] twice. ViewSonic E220...
-
Page 9: Main Menu Controls
Parallel they are parallel. straightens the top corners of the screen image. Top Hook straightens the bottom corners of the screen Bottom Hook image. rotates the entire screen image. Tilt ViewSonic E220... - Page 10 (used in most office settings with fluorescent lighting). 6500K — Adds red to the screen image for warmer white and richer red. 5000K — Adds blue and green to the screen image for darker color. User Color — Individual adjustments for red, green, and blue. ViewSonic E220...
- Page 11 Memory Recall settings if the display is operating in a factory preset timing mode listed in this user guide. Exception: This control does not affect changes made with the User Color control. ViewSonic E220...
-
Page 12: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the ViewPanel. Macintosh models prior to G3 require a Macintosh adapter. To order a ViewSonic Macintosh adapter, contact Customer Support. You will need to provide the product serial number. -
Page 13: Troubleshooting
• Connect the monitor to another computer. • Select Degauss from the Main Menu. Do this only once. ® • If you have an older graphics card, contact ViewSonic Customer Support. Entire screen image (rolls) vertically • Make sure video input signals are within the monitor's specified frequency range. -
Page 14: Customer Support
Customer Support Most of your questions can be answered as follows: For the nearest ViewSonic authorized service provider, look up the ViewSonic Web site for your region or country. For other assistance contact your reseller, or ask your reseller to refer you to a service center. -
Page 15: Cleaning The Monitor
Some chemical cleaners have been reported to damage the screen and/or case of the monitor. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 16: Limited Warranty
How long the warranty is effective: ViewSonic color monitors, including the display tubes, are warranted for three (3) years for all parts and three (3) years for all labor from the date of the first consumer purchase. -
Page 17: Appendix
BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic E220... -
Page 18: Compliance Information
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. ViewSonic E220... - Page 19 NOTES ViewSonic E220...
- Page 20 ViewSonic Corporation...
