Summary of Contents for Asus VW161D
-

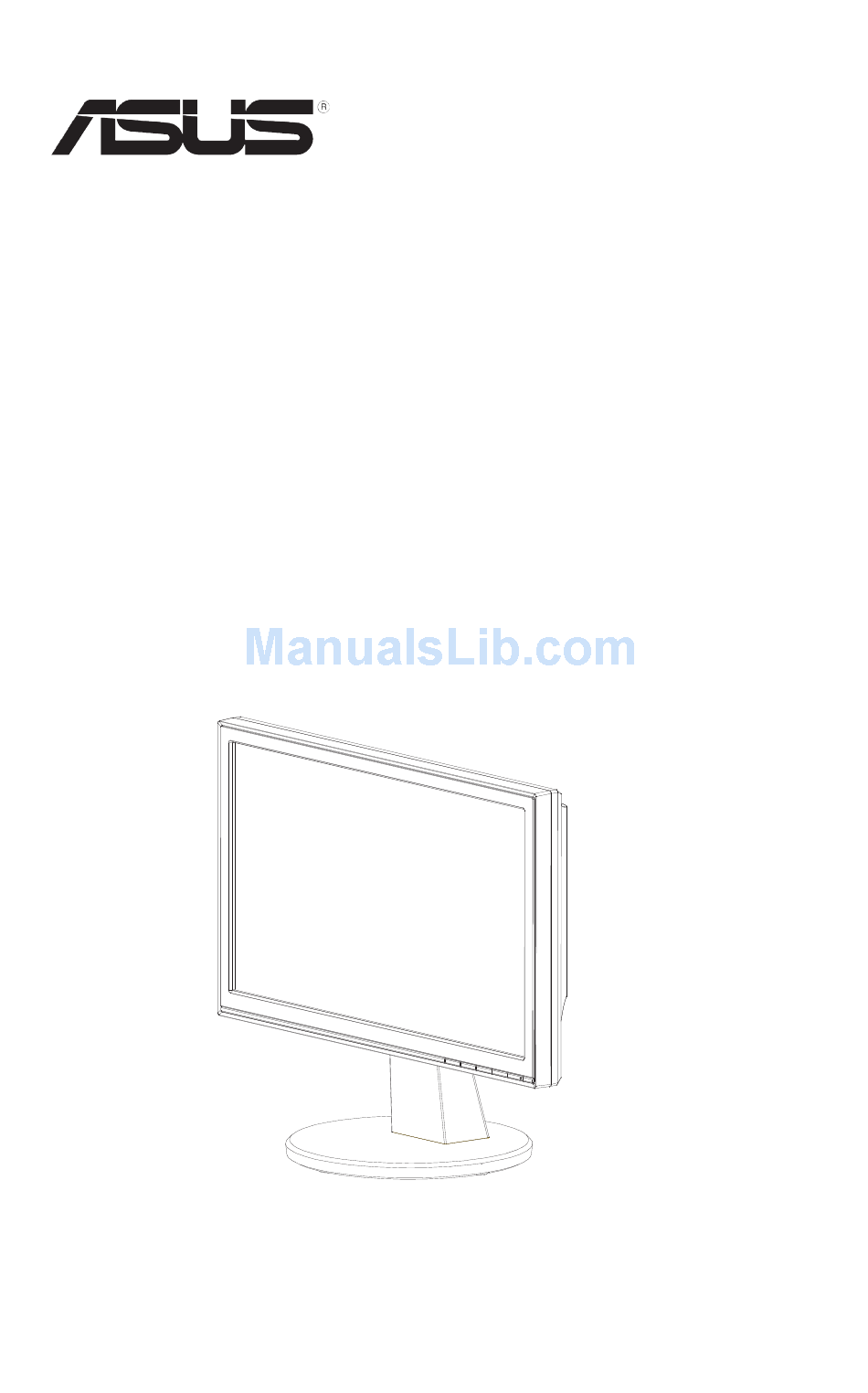

Page 1: User Guide
Q3696 V1 Mar 2008 VW161 Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 5: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. - Page 6 Refer to the following sources for additional information and for product and software updates. ASUS.websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional.documentation Your product package may include optional documentation, such as warranty card, that may have been added by your dealer.
-
Page 7: Welcome
Thank you for purchasing the ASUS VW161 Series LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 8: Assembling The Monitor
Assembling the monitor To assemble the monitor : Open carton, take out Remove cushion, take out base and stand. monitor set Assembly monitor with stand Assembly monitor with base Chapter 1: Product introduction... -
Page 9: Monitor.introduction
Press this button to enter/select the icon (function) highlighted while the OSD menu is activated. Button: • Press this button to increase the value of the function selected or move to the next fuction. • This is also a hotkey for Brightness adjustment. ASUS LCD Monitor VW161 Series... -
Page 10: Rear Of The Lcd Monitor
Power button: Press this button to turn the monitor on/off. • Power indicator The color definition of the power indicator is as the below table. • Status Description Blue Amber Standby mode 1.4.2 Rear of the LCD monitor Screw holes for VESA Wall Mount Rear connectors Rear connectors (from left to right) -
Page 11: Adjusting.the.monitor
• Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from -5º to 20º. -5 ~20º º ASUS LCD Monitor VW161 Series... -
Page 12: Detaching.the.arm/Stand.(For.vesa.wall.mount)
Detaching the arm/stand (for VESA wall mount) The detachable stand of the VW161 Series LCD monitor is specially designed for VESA wall mount. To detach the arm/stand: Remove the arm cover. Have the front of the monitor face down on a table. Use a screwdriver to remove the three screws on the stand of the monitor as the below drawing shows. -
Page 13: Osd.(On-Screen.display).Menu
Night View Mode: best choice for dark-scene game or movie with • SPLENDID™ Video Enhancement. In the Standard Mode, the Satuation and Sharpness functions are not • user-configurable. • In the other modes, the sRGB function is not user-configurable. ASUS LCD Monitor VW161 Series... - Page 14 Image You can adjust brightness, contrast, Image sharpness, saturation,position (VGA Brightness only), and focus (VGA only) from Contrast Sharpness this main function. Saturation ASCR Position Focus • Brightness: the adjusting range is from 0 to 100. is a hotkey to activate this function.
- Page 15 Traditional Chinese, Simplified Chinese, Japanese, and Korean. Aspect Controls: adjusts the aspect ratio to "Full" or "4:3" or "1360X768" • • Information: shows the monitor information. Reset: "Yes" allows you to revert to the preset mode. • ASUS LCD Monitor VW161 Series...
-
Page 16: Specifications Summary
Specifications summary Model Name VW161S VW161D Panel Size 15.6"Wide Screen 15.6"Wide Screen Max. Resolution WXGA+ 1366x768 WXGA+ 1366x768 Brightness (Typ.) Contrast Ratio (Typ.) 500:1 500:1 Viewing Angle (H/V), CR 90/65 90/65 Display Colors 16.7M 16.7M Response Time 8ms (Tr+Tf) 8ms (Tr+Tf) -
Page 17: Troubleshooting.(Faq)
• Ensure that the audio cable is properly connected to the monitor and the computer • Adjust the volume settings of both your monitor and computer. • Ensure that the computer sound card driver is properly installed and activated. ASUS LCD Monitor VW61 Series... -
Page 18: Supported.operating.modes
Supported operating modes VESA Modes, Factory Preset Timings Input Aspect Pixel Mode Format Resolution Total H(KHz) V(Hz) Ratio (MHz) 640x480,60Hz 800 x 525 31.469, N 59.94, N 25.175 640x480,72Hz 832 x 520 37.861, N 72.809, N 31.5 640x480,75Hz 840 x 500 37.5, N 75, N 31.5...
