VW199(x)L Series
LCD Monitor

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VW199TL and is the answer not in the manual?

Questions and answers

Summary of Contents for Asus VW199TL

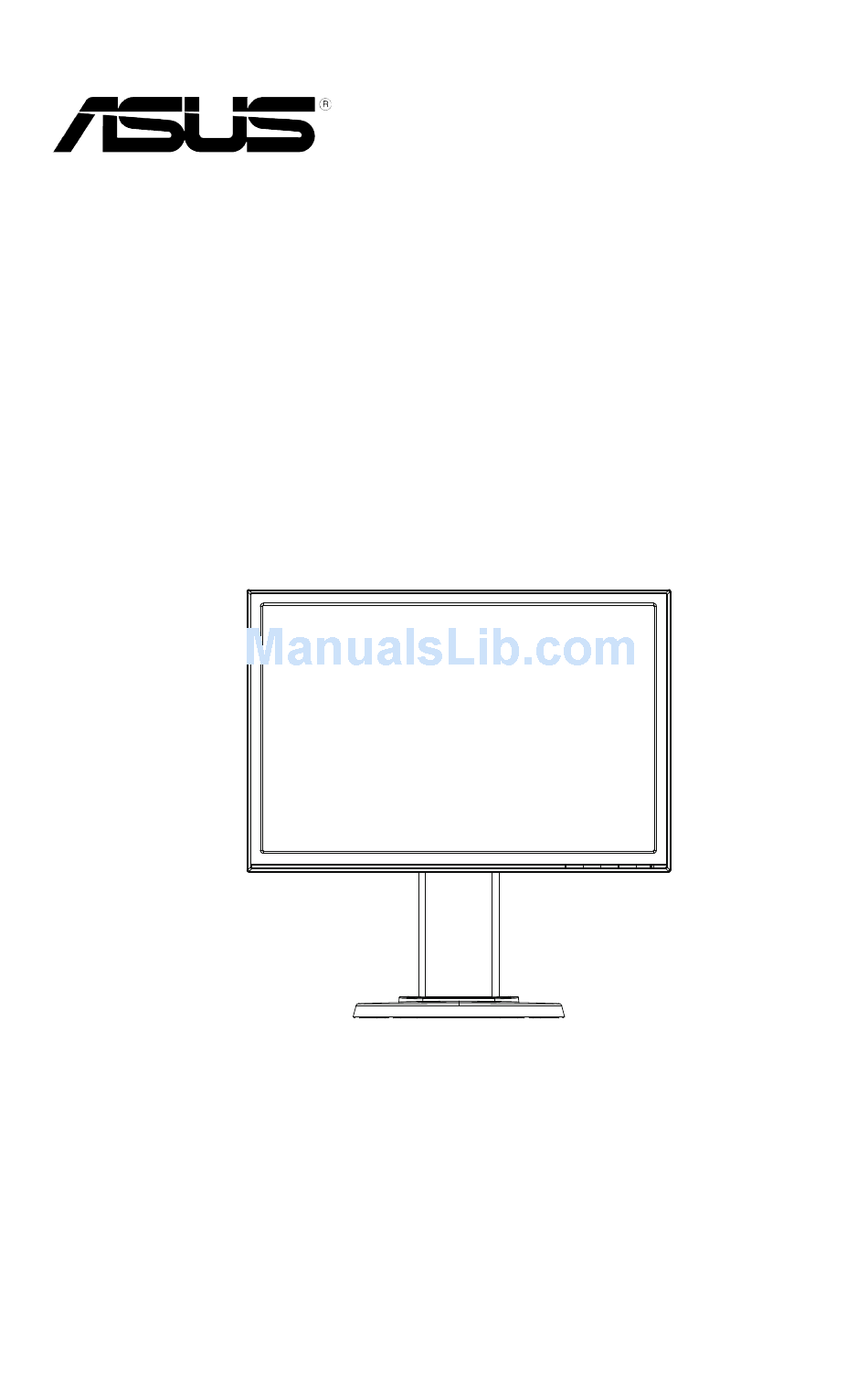

  • Page 1: User Guide

    VW199(x)L Series LCD Monitor User Guide...
  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will...
  • Page 4: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard.
  • Page 5: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor: • The screen may flicker during the initial use due to the nature of the fluorescent light.
  • Page 6 Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.
  • Page 7: Welcome

    Welcome! ® Thank you for purchasing the ASUS VW199(x)L Series LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VW199(x)L Series brings you! Package contents Check your VW199(x)L Series LCD Monitor package for the following items: LCD monitor Monitor stand and base User manual CD Quick start guide Warranty card Power cord VGA cable Audio cable (VW199TL/SL) DVI cable (VW199TL/NL) • I f any of the above items is damaged or missing, contact your retailer immediately. ASUS LCD Monitor VW199(x)L Series...
  • Page 8: Assembling The Monitor

    Assembling the monitor To assemble the monitor: Place the display flat on a cloth on the table, assemble the base according to the drawing and use a coin to turn the screw tight. Adjust the monitor to the angle that is most comfortable. • W e recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Chapter 1: Product Introduction...
  • Page 9: Monitor Introduction

    Monitor introduction 1.4.1 Front of the LCD monitor 1.4.1.1 VW199TL/SL Button: • Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only). • Use this hotkey to switch from six video preset modes (Scenery Mode, Standard Mode, Theater Mode, Game Mode, Night View Mode, and sRGB Mode) with SPLENDID™ Video Intelligence Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. Button: • Press this button to decrease the value of the function selected or move to the next fuction. • This is also a hotkey for Volume adjustment.
  • Page 10 Power Button: • Press this button to turn the monitor on/off. Power Indicator • The color definition of the power indicator is as the below table. Status Description Blue Amber Standby mode 1.4.1.2 VW199NL/DL Button: • Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only). • Use this hotkey to switch from six video preset modes (Scenery Mode, Standard Mode, Theater Mode, Game Mode, Night View Mode, and sRGB Mode) with SPLENDID™ Video Intelligence Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. Button: • Press this button to decrease the value of the function selected or move to the next fuction.
  • Page 11: Rear Of The Lcd Monitor

    The color definition of the power indicator is as the below table. Status Description Blue Amber Standby mode 1.4.2 Rear of the LCD monitor AC-IN port Audio Line-in port (VW199TL/SL) DVI port (VW199TL/NL) VGA port Screw Holes for VESA Wall Mount ASUS LCD Monitor VW199(x)L Series...
  • Page 12: Detaching The Arm/Stand (For Vesa Wall Mount)

    Detaching the arm/stand (for VESA wall mount) The detachable stand of the VW199(x)L Series LCD monitor is specially designed for VESA wall mount. To detach the arm/stand: Lower the monitor to its lowest height, and then inset the monitor height adjustment lock. Have the front of the monitor face down on a table. Use a screwdriver to remove the four screws on the VESA cover, then slide out the arm/base to detach it from the monitor. • W e recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • Hold the stand of the monitor when you remove the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately.For use only with UL Listed Wall Mount Bracket with minimum weight/load 14.8 kg (Screw size: 4 mm x 12 mm).
  • Page 13: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. • You can tilt the monitor’s from -5° to 15°, swivel from left-to-right for 45° each side, and lift the monitor’s height or about 100mm. -5º~15º º º º ASUS LCD Monitor VW199(x)L Series...
  • Page 14: Osd (On-Screen Display) Menu

    OSD (On-Screen Display) menu 3.1.1 How to reconfigure VW199 Splendid Scenery Mode Color Standard Mode Image Theater Mode Input Select Game Mode System Setup Night View Mode sRGB Move Menu Exit Press the MENU button to activate the OSD menu. Press  and  to navigate through the functions. Highlight and activate the desired function by pressing the MENU button. If the function selected has a sub-menu, press ...
  • Page 15 Contrast: The adjusting range is from 0 to 100. • • Saturation: The adjusting range is from 0 to 100. • Color Temp.: Contains three preset color modes (Cool, Normal, Warm) and one User Mode. • Skin Tone: Contains three color modes including Reddish, Natural, and Yellowish. • Smart View: Turns the Smart View Function on or off. • I n the User Mode, colors of R (Red), G (Green), and B (Blue) are userconfigurable; the adjusting range is from 0 ~ 100. ASUS LCD Monitor VW199(x)L Series...
  • Page 16 Sharpness: Adjusts the picture sharpness. The adjusting range is from 0 to 100. • Aspect Control: Adjusting the aspect ratio to “Full” or “4:3”. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function. • Position: Adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100 (Only available for VGA input). • Focus: Reduces Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100 (Only available for VGA input). Input Select Selects the input source from VGA or DVI (VW199TL/NL). VW199 Splendid Color Image Input Select System Setup Move Menu Exit Chapter 3: General Instruction...
  • Page 17 Input Select System Setup Move Menu Exit • Splendid Demo Mode: Activate the demo mode for the Splendid function. • Volume: Adjusts the Volume level of speakers. (VW199TL/SL). • ECO Mode: Turns the ECO Mode Function on or off. • OSD Setup: Adjusts the horizontal position (H-Position), vertical position (V-Position), OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Selects OSD language. The selections are English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese, Simplified Chinese, Japanese and Korean.
  • Page 18: Specifications

    3.2 Specifications Model VW199TL/NL/SL/DL Panel Size 19”W (48.3 cm) Max. Resolution 1440x900 Backlight Tech. LED Backlight Technology Brightness (Typ.) 250cd/m Intrisinc Contrast Ratio (Typ.) 1000:1 Viewing Angle (H/V), (CR≥10) 170°/160° Display Colors 16.7 M Response Time 5ms (Tr+Tf) Analog Input D-Sub Digital Input DVI(VW199TL/NL only) Speaker (Build-in) 1W x 2 (VW199TL/SL only) Tilt -5° ~ +15° VESA Wall Mounting Yes (100 mm x 100 mm) Phys. Dimension (WxHxD) 444x458.5x214 mm...
  • Page 19: Troubleshooting (Faq)

    • Press the button for two seconds to automatically adjust the image (for VGA input only). • Adjust the Phase and Clock settings via OSD. No sound or sound is low • Ensure that the audio cable is properly connected to (VW199TL/SL) the monitor and the computer. • Adjust the volume settings of both your monitor and computer. • Ensure that the computer sound card driver is properly installed and activated.
  • Page 20: Supported Timing List

    Supported timing list PC Supported Primary Timing Mode Resolution H(KHz) V(Hz) Pixel (MHz) 640x480 31.469 25.175 640x480 37.861 31.5 640x480 37.5 31.5 800x600 35.156 800x600 37.879 SVGA 800x600 48.077 800x600 46.875 49.5 1024x768 48.363 1024x768 56.476 1024x768 60.023 78.75 1152x864 67.5 1280x960 SXGA...
