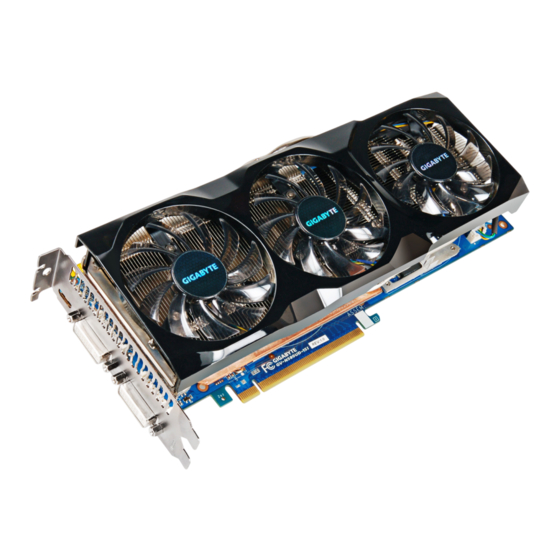

GV-N580UD-3GI/
GV-N580UD-15I
®
NVIDIA
GeForce
GTX 580 Graphics Accelerator
TM
User's Manual
Rev. 102
12MM-N580UD-102AR
Copyright
© 2011 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or trans-
mitted in any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the properties of their respective owners.
Notice
Please do not remove any labels on this graphics card. Doing so may void the warranty of this card.
Due to rapid change in technology, some of the specifications might be out of date before publication of this this
manual.The author assumes no responsibility for any errors or omissions that may appear in this document nor does
the author make a commitment to update the information contained herein.
Rovi Product Notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights.Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering
or disassembly is prohibited.
Advertisement
Table of Contents
Related Manuals for Gigabyte GV-N580UD-3GI
Summary of Contents for Gigabyte GV-N580UD-3GI
- Page 1 User's Manual Rev. 102 12MM-N580UD-102AR Copyright © 2011 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. (“GBT”). No part of this manual may be reproduced or trans- mitted in any form without the expressed, written permission of GBT. Trademarks Third-party brands and names are the properties of their respective owners.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ........................5 1.1. Features ......................... 5 1.2. Minimum System Requirements ..................5 2. Hardware Installation ....................6 2.1. Board Layout ........................6 2.2. Hardware Installation ..................... 9 3. Software Installation ....................11 3.1. Driver and Utility Installation ..................11 3.1.1. -
Page 5: Introduction
(Note 1) SLI technology requires a PCI Express motherboard with two/three x16 physical connectors. Graphics cards working in an SLI configuration must be with the same model name (e.g. GV-N580UD-3GI / GV-N580UD-15I) and from the same vendor (e.g. GIGABYTE TECHNOLOGY). -
Page 6: Hardware Installation
2. Hardware Installation 2.1. Board Layout Power Connectors SLI Connector Mini HDMI Connector DVI-I Connector 1 DVI-I Connector 2 Mini HDMI Connector HDMI TV DVI Output DVI-I Connector 1 Digital LCD Monitor DVI-I DVI Output Connector 2 Digital LCD Monitor - 6 - GV-N500 Series Graphics Accelerator... - Page 7 The GV-N580UD-3GI / GV-N580UD-15I graphics card is a performance optimized high-end card. Power is taken from the PCI Express host bus as well as the external PCI Express power connectors. NVIDIA power Connect power from the system power supply to the GeForce card(s).Use the connection method for your particular graphics card.
- Page 8 DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS DAMAGED. In order to ensure that your graphics card can work correctly, please use official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might cause problem(s) on the graphics card. - 8 -...
-
Page 9: Hardware Installation
2.2. Hardware Installation Now that you have prepared your computer, you are ready to install your graphics card. Step 1. Locate the PCI Express x16 slot. If necessary, remove the metal cover from this slot; then align your graphics card with the PCI Express x16 slot, and press it in firmly until the card is fully seated. - Page 10 How NVIDIA SLITM (Scalable Link Interface) technology works: ® In an SLI configuration, two/three SLI-ready graphics cards of the same model and the same manufacturers are connected together via SLI bridge connector in a system that provides two/three x16 PCI Express slots to scale graphics performance.
-
Page 11: Software Installation
3. Software Installation Notice the following guidelines before installing the drivers: 1. First make sure your system has installed DirectX 9 or later version. 2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard drivers, please contact the motherboard manufacturer.) 3.1. - Page 12 Step 3: Click the Yes button. The system is installing the components. Step 4: Click the Finish button to restart the computer. Then the driver installation is completed. - 12 - GV-N500 Series Graphics Accelerator...
-
Page 13: Display Properties
3.2. Display Properties Pages Display Settings (Resolutions and Color Quality for Windows) To access Display Settings page, right-click on desktop and select Personalize, then the Personalization windows will show up. Select Display Settings to adjust the screen resolution and color quality settings. You can move the slider to change the resolution. -
Page 14: Accessing Nvidia Control Panel
3.3. Accessing NVIDIA Control Panel After installation of the display driver, right-click on the desktop and select NVIDIA Control Panel. The NVIDIA Control Panel is used to configure all your graphics card settings. Right-click on the desktop and select NVIDIA Control Panel. Or you can right-click on the desktop and select Personalize, and then the Control Panel\Appearance Per- sonalization\Personalization window will show up. - Page 15 Select the view of the NVIDIA Control Panel that is most appropriate for you. Standard Settings Advanced Settings The following pages provide details on configuring advanced settings. In the NVIDIA Control Panel, select a category to alter specific NVIDIA display settings. The categories are: ...
- Page 16 3D Settings Tasks in the 3D Settings pages allow you to do the following: • Change the image and rendering settings of your 3D applications and games that utilize Direct3D and OpenGL technology. • Override the shipped clocked frequencies of your GPU and GPU memory to increase your GPU perfor- mance.
-
Page 17: Change Resolution
Display A variety of display features enable you to further manipulate and configure your display settings to optimize the use of your displays. Tasks in the Display pages allow you to do the following: • Move CRT screen position • Change resolution •... -
Page 18: Rotate Display
Adjust Desktop Color Settings Use this page to set the contrast, sharpness, and color depth (Digital Vibrance) of the images on your desktop. These changes will not affect any video playback. To change video color set- tings, go to Adjust Video Color Settings under the Video and TV section from the Start page. - Page 19 Set Up Multiple Displays NVIDIA nView technology enables you to view your desktop in one of several multi-display modes to make the best use of the displays (monitors) that are connected to your computer. Dual-Monitor Setup You can set the display to output from two monitors on the Set Up Multiple Displays page. Select your preferred nView display modes here.
- Page 20 Vertical Span mode indicates that both displays in the display pair function as one tall virtual desktop. The height of each display is half the height of the total virtual desktop height. Vertical Span Mode Display Model GV-N580UD-3GI GV-N580UD-15I (Note 2) Matrix +HDMI (Note 2) CRT+DVI...
- Page 21 Video & Television Video and television features are similar to those for analog for optimal viewing. Tasks in the Video & Televi- sion pages allow you to do the following: • Adjust your television picture quality and video color settings for the best possible viewing in its environ- ment.
-
Page 22: Troubleshooting Tips
4. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information. Check that the card is seated properly in the PCI Express x16 slot. Ensure that the display cable is securely fastened to the card's display connector. -
Page 23: Appendix
5. Appendix 5.1. How to Reflash the BIOS in MS-DOS Mode 1. Extract the downloaded Zip file to your hard disk(s) or floppy disk. This procedure assumes drive A. 2. Restart the computer in MS-DOS mode. (You may need a startup disk to restart the computer in MS-DOS mode.) 3. -
Page 24: Resolutions And Color Depth Tables
5.2. Resolutions and Color Depth Tables GeForce GTX 580 Single Display Standard Modes Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 320 x 200 60~75 320 x 240 60~75 ... - Page 25 Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 1600 x 1200 60~100 1920 x 1080 (16:9) 60~85 1920 x 1200 (16:10) 60~85 ...
-
Page 26: Regulatory Statements
Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGA- BYTE. - Page 27 Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly. With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of "end of life"...
