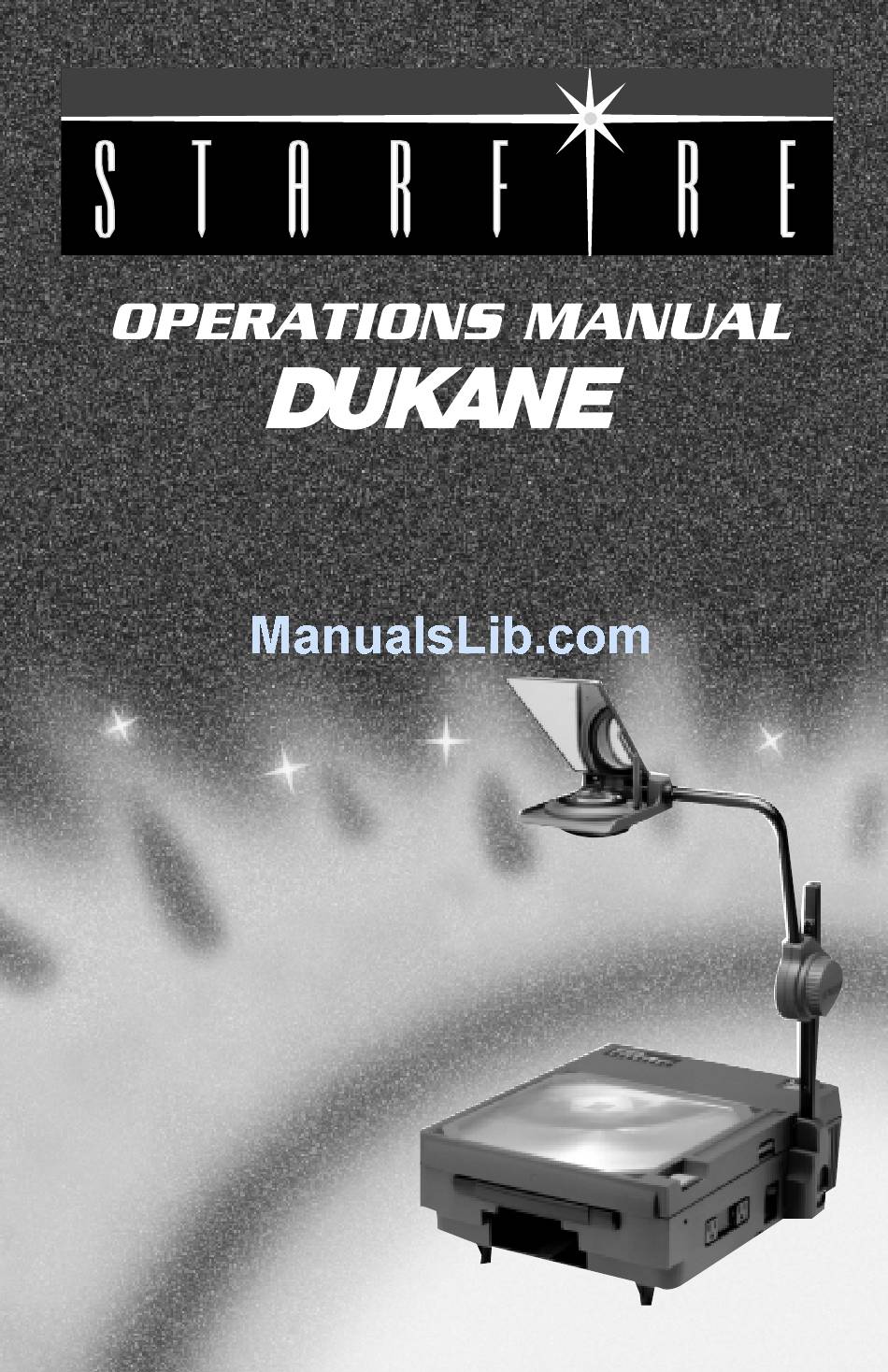

- Page 1 MODELS SF6000 SF5510 SF4030 SF4010 SF3010 SF3000 HD 4010...
- Page 2 No person, firm or representative is authorized to assume any obligation or make any warranty on behalf of the Dukane Corporation other than as stated above. THIS LIMITED WARRANTY IS VALID FOR U.S.A. AND CANADA.
-
Page 3: Important Safety Instructions
1. Read and understand all instructions before using. 2. Close supervision is necessary when any projector is used by or near children. Do not leave projector unattended while in use. 3. Care must be taken as burns can occur from touching hot parts. - Page 4 Because operation of all units is very similar, this manual covers all models in the Dukane Starfire Series. 2900 Dukane Drive • St. Charles, IL 60174-3395 Phone: 1-800-676-2487 • Fax: 630-584-0984 E-mail: avserdpt@dukane.com •...
-
Page 5: Table Of Contents
TABLE OF CONTENTS LIFETIME LIMITED WARRANTY ... Inside Cover SPECIFICATIONS ... 1 ELECTRICAL SAFETY GROUNDING INSTRUCTIONS ... 1 INDEX OF FUNCTIONAL PARTS ... 2-3 SF MODEL SETUP and FOLDUP ... 4-5 HD MODEL SETUP ... 6 OPERATION ... 7 Image Adjustment ... 7 High/Low Lamp Switch ... -
Page 7: Specifications
SPECIFICATIONS SF MODEL Dimensions... 5.6" H x 16.4" W x 17.8" D (Folded) HD MODEL Dimensions ... 8.5" H x 16.4" W x 17.8" D (Folded) Aperture... 6000, 5510 — 11.2" x 11.2" (A4 ) Lens ... 3000 — Single Element, 293mm (11.5") 3010, 4010, 5510 —... -
Page 8: Index Of Functional Parts
INDEX OF FUNCTIONAL PARTS A number of terms are used frequently in this instruction booklet. The OVERHEAD PROJECTOR will be easier to operate if you become familiar with the terms for the functional parts listed below: 1. Mirror; use to direct projected image 2. - Page 9 12. Door Leg Assembly; close for foldaway design, cord storage 13. Door Latch (one each side); keeps doors closed Models 6000 and 4030 also feature a soft start power supply which extends lamp life, reduces operating costs and ensures a smoother, flicker-free image.
-
Page 10: Sf Model Setup And Foldup
SETUP INSTRUCTIONS SF MODELS 1. Set unit on projection table in the vertical position (handle up). 2. Slide bottom door latches out and swing both doors around to magnet latches. Pull out the entire power cord. Leave doors open. 3. Tip unit over to rest on its legs. (Doors act as feet for the unit). 4. - Page 11 6 — 7 — FOLDUP INSTRUCTIONS Perform Setup Steps in reverse order. • Unlock/lower mast by pushing down on lock collar as shown.
-
Page 12: Hd Model Setup
SETUP INSTRUCTIONS HD MODELS 1. Set unit on projection table and pull out the power cord from cord storage compartment. 2. Turn focus knob clockwise until it stops at the end of the mast. 3. Rotate mast up until it locks into place. 4. -
Page 13: Operation
OPERATION Place the projector on a stable surface that is desk or table height. Make sure that the side vent is not blocked. Plug the power cord into a standard 120V AC outlet. Push the power button to turn the projector on. -
Page 14: High/Low Lamp Switch
High/Low Lamp Switch When using with an LCD panel, use the projector at its brightest lumen output (Models 6000, 5510, 4030, 4010). Reduce light output (High/Low switch) to extend lamp life. Ideal when using regular transparencies. Lamp Changer The lamp changer allows you to quickly replace a failed lamp. Turn the power switch “OFF.”... -
Page 15: Lamp Replacement
LAMP REPLACEMENT Your projector uses: 3000, 3010 — 360W, ENX. 4010, 4030, 5510, 6000 — 410W, FXL. Lamp and adjacent metal parts are hot. Allow lamp to cool before replacing. Glass components may shatter. To Remove an Exhausted Lamp: 1. Remove the lamp by squeezing the lamp retainer clip and remove lamp. -
Page 16: Cleaning
1-800-676-2487 to order parts or for the nearest service station. Service manuals are also available at a nominal cost. No Charge Warranty Repair Your unit must be taken or sent to Dukane or to an approved service station with your sales receipt. -
Page 17: Troubleshooting
TROUBLESHOOTING Symptom Neither lamp or fan operate No lamp, fan runs New lamp installed, lamp still not on, fan runs No fan, lamp on Call Service at 1-800-676-2487. INFORMATION ON LAMP WARRANTY Projection lamps are warranted by the lamp manufacturer and not by the equipment manufacturer. -
Page 18: Sf Model Optional Accessories
OPTIONAL ACCESSORIES SF MODELS ENX LAMP 360W/82V 456-188 (Models 3000/3010) FXL LAMP 410W/82V 456-192 (Models 4010, 4030, 5500, 6000) HARD-SIDED CARRYING CASE 185-398 PROTECTIVE DUST COVER 128-61 SOFT SHOULDER BAG (PADDED) 128-46 ATA SHIPPING CASE 185-397 To order accessories, please call 1-800-676-2487. -
Page 19: Hd Model Optional Accessories
OPTIONAL ACCESSORIES HD MODELS ENX LAMP 360W/82V 456-188 (Models 3000/3010) FXL LAMP 410W/82V 456-192 (Models 4010, 4030, 5500, 6000) HARD-SIDED CARRYING CASE 185-385 SOFT SHOULDER BAG (PADDED) 128-1 ATA SHIPPING CASE 185-397 To order accessories, please call 1-800-676-2487. ROLL FILM ADAPTER KIT 438-814... - Page 20 Part # 401-545-05...
