1.10.2 Internal connectors

1. IDE connectors (40-1 pin PRI_IDE, SEC_IDE)
This connector supports the provided UltraATA133 IDE hard disk ribbon cable.
Connect the cable's blue connector to the primary (recommended) or secondary
IDE connector, then connect the gray connector to the UltraATA133 slave device
(hard disk drive) and the black connector to the UltraATA133 master device.
• Follow the hard disk drive documentation when setting the device in master
or slave mode.
• Pin 20 on each IDE connector is removed to match the covered hole on the
UltraATA cable connector. This prevents incorrect orientation when you
connect the cables.
• The hole near the blue connector on the UltraATA cable is intentional.
A8S-X

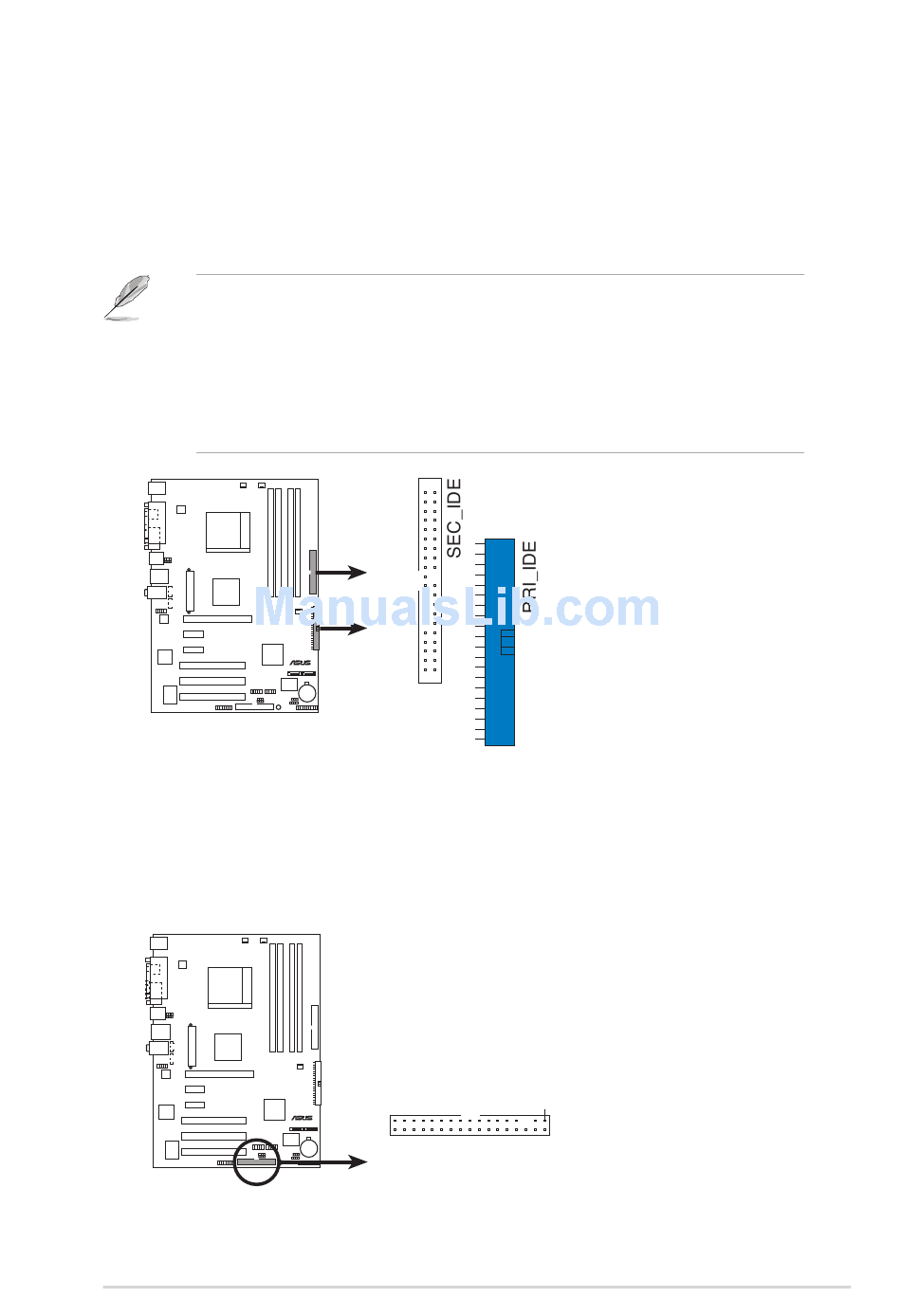

A8S-X IDE connectors
2. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the floppy
drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables
with pin 5 plug).
A8S-X
A8S-X Floppy disk drive connector
ASUS A8S-X
®
FLOPPY
®
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
1-17
