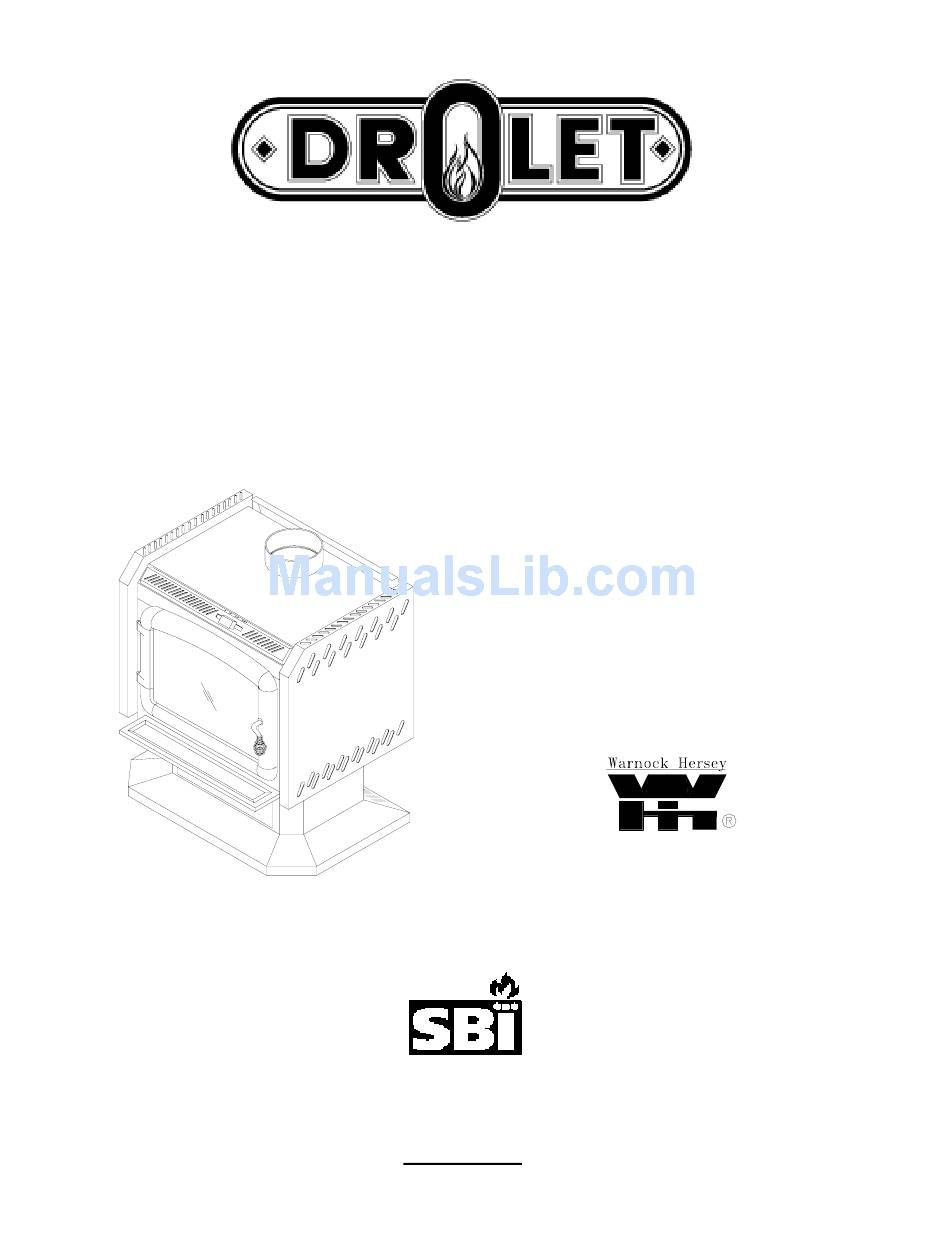

OWNER`S MANUAL
DROLET EPA WOODSTOVES
SIBERIAN-1200
SIBERIAN-1600
SIBERIAN-2000
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOODSTOVES
Vérified and tested following
ULC S627 et UL 1482 Standards by:
Intertek Testing Services
READ AND KEEP THIS MANUAL FOR REFERENCE
: STOVE BUILDER INTERNATIONAL INC..
Manufactured by
1700, Léon-Harmel, Québec (Québec) G1N 4R9
Tel : ( 418 ) 527-3060
Fax : ( 418 ) 527-4311
www.drolet.ca
990812/45065A_Feb 03
Advertisement
Table of Contents
Related Manuals for Drolet SIBERIAN 1200
Summary of Contents for Drolet SIBERIAN 1200
- Page 1 OWNER`S MANUAL DROLET EPA WOODSTOVES SIBERIAN-1200 SIBERIAN-1600 SIBERIAN-2000 US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVES Vérified and tested following ULC S627 et UL 1482 Standards by: Intertek Testing Services READ AND KEEP THIS MANUAL FOR REFERENCE : STOVE BUILDER INTERNATIONAL INC..
-
Page 2: Table Of Contents
AIR TUBES INSTALLATION (SIBERIAN 2000): ... 8 DOOR ADJUSTMENT ... 9 THE BENEFITS OF INSTALLING A BLOWER ... 10 INSTALLATION... 11 POSITIONING THE STOVE ... 11 FLOOR PROTECTOR ... 12 CLEARANCES ... 13 REDUCED CLEARANCES ... 14 CHIMNEY ... 15 CHIMNEY CONNECTOR (STOVE PIPE)... -
Page 3: Introduction
In the pages that follow, we will give you advice on wood heating and controlled combustion as well as technical specifications regarding installation, operation and maintenance of the model you have chosen. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Combustion Type: Recommended Surface Heating Capacity : E.P.A : Real : Efficiency : Average Emission: Colors : Flue Pipe Diameter : Chimney type : Minimum Chimney Height : Maximum Log Length : Dimensions Overall Combustion Chamber : Width x Depth : Volume : Door Opening : Width x Height :... -
Page 5: Assembly
Figure 2: SIBERIAN-2000 Pedestal Installation : 1. Remove all bricks and insulations in the appliance. 2. Slowly, lay down the stove on his back. 3. Install legs or the pedestal with the supplied nuts and bolts. Stand up the stove and place it with the required clearances. -
Page 6: Bricks Installation (Siberian-1200)
BRICKS INSTALLATION (SIBERIAN-1200) Figure 3: SIBERIAN-1200 • Refractory bricks are to be installed according to figure 4. • In both stoves, the baffle brick must be pushed as close to the front as possible onto its metallic support. • The upper bricks (2) must lay on the vertical bricks (4) grove •... -
Page 7: Bricks And Insulation Installation (Siberian-1600)
BRICKS AND INSULATION INSTALLATION (SIBERIAN-1600) 1. Remove from the stove all bricks and insulation. 2. Install all side bricks (12 x 4 1/2" x 9") 3. Install the back bricks (6 x 4 1/2" x 9") 4. Install the bottom bricks (4 x 4 1/2" x 9") + (2 x 6" x 7"). -
Page 8: Brick And Insulation Installation (Siberian 2000)
BRICK AND INSULATION INSTALLATION (SIBERIAN 2000) The stove is normally supplied with secondary air tubes in position. To install the baffle bricks and white ceramic insulation, it’s necessary to remove the two front secondary air tubes. First place only one baffle brick and one white ceramic insulation. Use the same method to put the other baffle brick and insulation. -
Page 9: Air Tubes Installation (Siberian 2000)
AIR TUBES INSTALLATION (SIBERIAN 2000): The secondary air tubes are painted different colours . The back tube is yellow, the middle one is red and the front is unpainted. Before installing, make sure the locating holes in the tubes (holes near one end of the tube) are on the left side. Insert one tube in the right side air channel and slide it to the right as much as possible. -
Page 10: Door Adjustment
DOOR ADJUSTMENT In order for your stove to operate properly, the door should be adjusted periodically to provide an air tight fit. To adjust: • Remove the lock pin (spring pin) by pulling and turning it using pliers ("wise grip") •... -
Page 11: The Benefits Of Installing A Blower
THE BENEFITS OF INSTALLING A BLOWER A blower can be installed at the back of your DROLET stove. This option is necessary if you wish to redistribute into a room the heat trapped at the back of your stove. By forcing hot air toward the front, the blower enables you to extend the radiation power of your stove. -
Page 12: Installation
REQUIRED POSITIONING THE STOVE It is very important to position the wood stove as close as possible to the chimney, and in an area that will favour the most efficient heat distribution possible throughout the house. The stove must therefore be installed in the room where the most time is spent, and in the most spacious room possible. -
Page 13: Floor Protector
Your wood stove should be placed on a non-combustible surface. The floor protector should be under the stove, eighteen inches beyond the front and eight inches beyond each side of the fuel loading and ash removal opening. If there is a horizontal section of chimney connector, the floor protector should go under it and two inches beyond each side. -
Page 14: Clearances
CLEARANCES It is of utmost importance that the clearances to combustible material be scrupulously respected upon installation of the stove you have selected. Refer to the tables below : Figure 8: Clearances to combustibles CANADA SIBERIAN-1200 15/10 SIBERIAN-1600 15/12 SIBERIAN-2000... -
Page 15: Reduced Clearances
3" (76 mm) between the top of the shield and the ceiling must be respected to allow vertical air circulation behind the shield. The shield must extend 20" (500 mm) above the stove top and 18" (450mm) to each side of the stove. -
Page 16: Chimney
CHIMNEY Your wood stove may be hooked up with a factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or ULC S629 standards; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer's specifications. -
Page 17: Chimney Connector (Stove Pipe)
The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021" or 0.53 mm. It is strictly forbidden to use galvanized steel. -
Page 18: Typical Installations
TYPICAL INSTALLATIONS FACTORY BUILT CHIMNEY: 18" CLEARANCE Wall installation RAIN CAP ROOF FLASHING WALL RADIATION SHIELD WALL SUPPORT Vertical installation RADIATION SHIELD CEILING SUPPORT... - Page 19 MASONRY CHIMNEY: C lay liner Thimb le C lean out door...
- Page 20 FACTORY BUILT THIMBLE:...
- Page 21 BRICK THIMBLE:...
-
Page 22: Woodstove Utilization
The vast majority of the problems related to the operation of a wood stove are caused by the fact that the wood used was too damp or had dried in poor conditions. These problems can be: •... -
Page 23: Testing Your Wood
Make sure that there’s enough air circulation while curing the stove. The odours could be smelled during the 3 or 4 first fires. Never start your stove outside. You will not be able to see if you are over heating. -
Page 24: Heating
The air intake control on your stove is very simple. If you pull on it out completely towards you, it is fully open. If you push on it until it stops the combustion air is reduced to a minimum. -
Page 25: Creosote Formation And Need For Removal
FIRING IS HAPPENING EADJUST THE AIR INTAKE CONTROL AT A LOWER SETTING • T HE INSTALLATION OF A LOG CRADLE IS NOT RECOMMENDED IN YOUR DROLET WOOD STOVE • N EVER PUT WOOD ABOVE THE FIREBRICK LINING OF THE FIREBOX... -
Page 26: Ash Disposal
ASH DISPOSAL Ashes should be removed from the stove every few days or when ashes get to 2 to 3 inches deep. Always empty the stove when it is cold, such as in the morning. Always dispose of ashes in a metal container with a tight fitting lid. Place this container on a non combustible floor or on the ground, well away from all combustible materials, pending final disposal. -
Page 27: Maintenance
Do not abuse the glass door by striking or slamming shut. Do not use the stove if the glass is broken. • If the glass on your stove breaks, replace only with glazing supplied from the Drolet dealer. -
Page 28: Limited Lifetime Warranty
Gold plating (tarnishing) Shall your unit or a components be defective, contact immediately your Drolet dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: • You name, address and telephone number;...
