Summary of Contents for BBE Sonic Maximizer 382isw

  • Page 1 382isw Sonic Maximizer User Guide and Reference Manual ...
  • Page 2: Installation

    For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and described in the operating instructions supplied with the appliance. INSTALLATION Water and Moisture - Do not install the appliance near water: for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
  • Page 3: Product Description

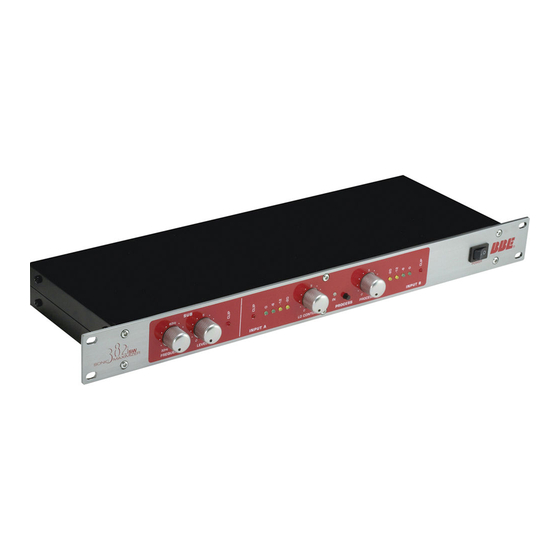

    PROdUCT dESCRIPTION The BBE 382isw is a Sonic Maximizer and sub-woofer filter network combined into one unit. The single rack space device is for use in -10dBu unbalanced level applications. There are two separate channels that share the same front panel Lo Contour control and Process control for ganged-stereo operation.
  • Page 4: Things To Remember

    P.A. consoles, recording studios, or D.J. equipment. The BBE 382isw drives load impedances down to 1K Ohm and supplies a maximum output level of +20dBu. Plugging a guitar or other high impedance device directly into the BBE 382isw will not work properly as its input impedance is less than 50K ohms.
  • Page 5: Front Panel Controls

    3. CLIP LED: Indicates when the output is 3dB below true clipping. 4. LED DISPLAY: The LED display is used to indicate the output signal level of the BBE 382isw. Each number on the front panel corresponds to the output signal level, measured in decibels. Example: The “0”...
  • Page 6: Rear Panel Connections

    4. OUTPUT: The output of the 382isw can be taken from the 1/4” Phone Jack or the RCA Jack. Both are unbalanced and are the same point electronically. This allows both outputs to be used simultaneously, eliminating the need for a “Y”...
  • Page 7: Specifications

    SPECIFICATIONS process mode Program controlled Frequency Response bypass mode 5Hz to 30kHz +/-0.5dBu, -10dBu input THD in process mode less than 0.1% at -10dBu input, 20-20kHz +20dBu Maximum Output (may vary due to control settings) Input Impedance 50k Ohms, unbalanced 1/4” phone jack or RCA jack Output Impedance 1k Ohms, unbalanced 1/4”...
  • Page 8 APPLICATION The BBE 382isw with its ganged-stereo controls and sub-woofer filter is the perfect complement to any permanently installed or mobile DJ system. MAIN OUTPUTS FULL-RANGE MIX SUB-WOOFER POWER AMP AND POWER AMP AND SPEAKERS SPEAKERS...
  • Page 9 LIVE APPLICATION: NON-POWEREd MIXER Connect the BBE 382isw to the output of the mixing console or external equlization, if used. The output of the BBE will drive either a crossover or a power amplifier directly. MAIN OUTPUTS FULL-RANGE MIX SUB-WOOFER...
  • Page 10 LIVE APPLICATION: INdIVIdUAL INSTRUMENTS The BBE 382isw can be used in bass, keyboard and other instrument rigs where a sub-woofer is required to reproduce the full frequency range of the instrument. Use the appropriate hookups to use the 382isw in either stereo or mono configurations.
  • Page 11: Warranty

    BBE Sound, Inc. so that the service can be expedited. As the repair turnaround time is minimal, we request that the unit be sent to BBE Sound, Inc. We also need to add reliability data to our files so that future revision may be undertaken, if necessary, to improve the product.
  • Page 12  5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 5,736,897 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev.3 9-2010...
