SVW290 Large Warming Drawer
Manual for Installation, Use and Maintenance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVW290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CDA SVW290

Summary of Contents for CDA SVW290

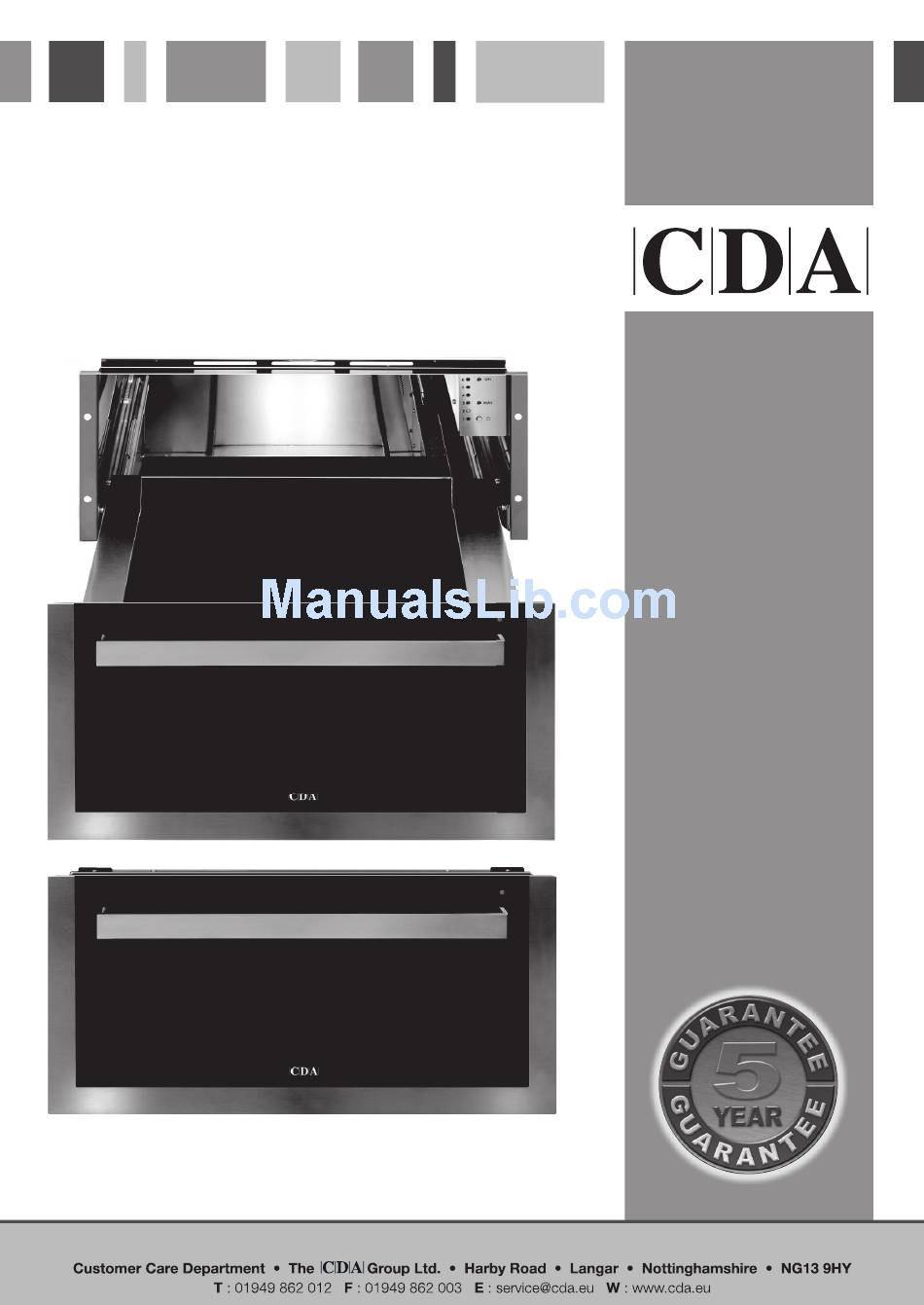

  • Page 1 SVW290 Large Warming Drawer Manual for Installation, Use and Maintenance...

  • Page 2: Control Panel

    CONTROL PANEL 1. Push button setting selector 2. Temperature indicators 3. Power on light 4. Maximum temperature indicator 5. Warning Light (On/Off) THE WARMING DRAWER You can use the warming drawer to preheat dishes or to keep food warm. The “power on” indicator light flashes when the appliance is switched on and the drawer is open. It will light up when the drawer is closed.
  • Page 3 HOW TO PREHEAT OVENWARE 1. Place the ovenware in the drawer. 2. Set the function selector. The “power on” indicator light flashes. 3. Close the drawer. The “power on” indicator light turns up. The appliance heats up. How long does preheating take? The length of time required for preheating depends on the material the ovenware is made of and its thickness, as well as the quantity, height and arrangement of the ovenware.

  • Page 4: Keeping Food Warm

    KEEPING FOOD WARM Do not place hot saucepans or pans on the glass surface of the warming drawer immediately after removing them from the hot hob. This could damage the glass surface. Do not fill the ovenware to such an extent that food spills over.

  • Page 5: Care And Cleaning

    CARE AND CLEANING The drawer can be removed in order to clean the inside. Open the drawer fully (see pic. 1) Undo the 2 front screws (1 on each side) - (pic. 2) Pic. 1 Lift the 2 hooks (1 on each side) - (pic. 3-4) Hold the front part of the drawer on both sides, because the rear part of the side guides has been lubricated.

  • Page 6: Safeguarding The Environment

    SAFEGUARDING THE ENVIRONMENT Disposal of packing material By ensuring correct disposal of the product, the • The packing material is 100% recyclable and is user can help prevent potentially negative marked with the recycle symbol consequences for the environment and the health •...

  • Page 7: Before Using The Warming Drawer

    afterwards, to avoid injury; model). - packing materials (bags, polystyrene, metal • Pressing the On button switches on the warmer parts, etc.); drawer heating; risk of burns. - the warming drawer if it is to be scrapped. • Never insert objects (e.g. screwdrivers, sharp •...
  • Page 8 Important: above the drawer, it is possible to fit the coffee machine, the combined oven or the traditional oven (MAXIMUM WEIGHT 40 KG). Their sizes must be as shown in the following figure. During installation, carefully follow the instructions in the manuals of the coffee machine, the combined microwave and/or traditional oven.

  • Page 9: Electrical Connection

    ELECTRICAL CONNECTION Contact a qualified technician to carry out During the warranty period, repairs must only be the appliance electrical connection. carried out by the authorised technical service, Important: Before connecting the drawer to the otherwise the warranty right is lost. domestic power supply to check its operation, always make sure the drawer power cable is Installation, repair and cleaning operations must...

  • Page 10: Troubleshooting Guide

    CARE AND CLEANING Important: never use high pressure water or Antislip drawer base (depending on the model) steam cleaners. • The antislip drawer base can be pulled out to Also, do not use: detergents containing soda, clean the bottom of the drawer. The base can acids or chlorides, abrasive detergents (in powder be washed by hand with hot water and a mild or lotion), abrasive sponges (e.g.

  • Page 11: After Sales Service

    "Troubleshooting Guide". 2. Switch the appliance off and then on again it to If any repairs are required, contact an the CDA see if the problem has been eliminated. Customer Care (to guarantee the use of original spare parts and correct repair).

  • Page 12: Electrical Connection For Great Britain And Ireland Only

    ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY Warning - this appliance must be earthed Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.
