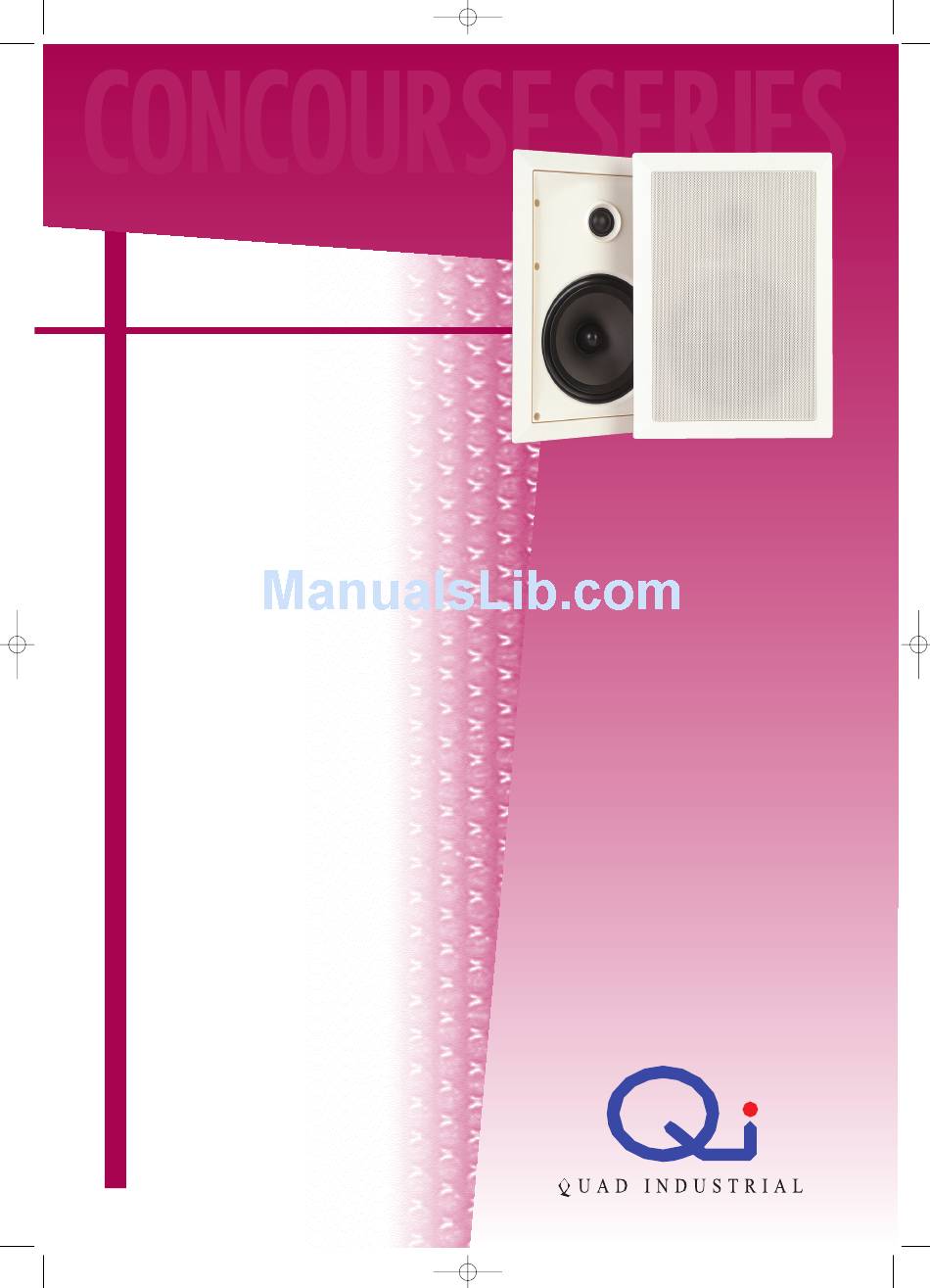

QUAD CONCOURSE R6 Datasheet

Concourse R6 version3 19/3/04
CONCOURSE R6
ARCHITECTURAL SERIES
RECTANGULAR TWO WAY
WALL/CEILING SPEAKER
KEY FEATURES:
✓
Two way ported rectanuglar wall/ ceiling loudspeaker with 6.5" bass
driver, 1" soft dome tweeter and passive crossover
✓
100watts program, 200watts peak
✓
Optional 4ohm or 16ohm low impedance models
✓
Integral 30/15/7.5/3.75watt tap line transformer
✓
Integral mounts s to allow
simple installation from below the ceiling.
APPLICATIONS:
✓
Corporate Meeting Rooms
✓
Classrooms
✓
Training Rooms
✓
Restaurants
✓
Retail Outlets
✓
Hotels
✓
Health Clubs
DESCRIPTION:
The QUAD Industrial CONCOURSE R6 is a two way rectangular wall/ ceiling
speaker with a 6.5" LF, 1" soft dome tweeter and passive crossover. The
Concourse R6 is intended for small to medium room applications requiring high
quality speech reinforcement and/or background music.
The CONCOURSE R6 can be ordered as either 4 or 16 ohm low impedance,
allowing efficient use of amplifier power and parallel looping connections with no
transformer losses or signal degradation.
The CONCOURSE R6 includes a pair of clamp mountings for weight distribution
on ceiling finishes.
10:47 am Page 1
SPECIFICATIONS:
SYSTEM:
POWER HANDLING: 50watts continuous, 100watts program,
200watts peak
Recommended amplifier: 10-100 watts
Impedance: Selectable 4 or 16 ohms nominal
Frequency response (-10dB): 40Hz-20kHz
Frequency response (+/-3dB): 70Hz-20kHz
Sensitivity: 89dB/1watt/1meter
Max SPL: 112dB
Coverage: 140*110
Directivity (Q): 6.14
TRANSDUCERS:
LF Driver: 6.5" Cone
HF Driver: 1" Dome tweeter
Crossover Frequency: 2.3kHz
PHYSICAL:
Type: Two way passive ported design
Material: Plastic ABS
Connector: Terminal strip
Dimensions (HxWxD): 332mm x 232mm x92mm
Nett Weight: 1.8kg
