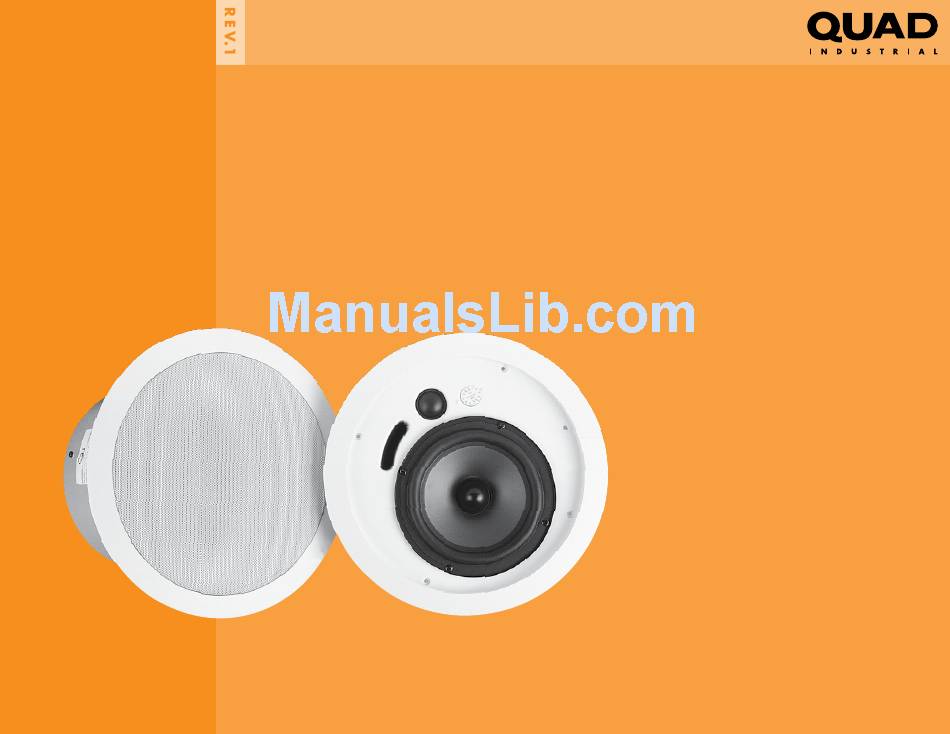

- Page 1 C O N C O U R S E C S E R I E S INSTRUCTION BOOKLET MODELS C4, C4-16, C4-T, C6, C8, & CSUB F O R T H E C L O S E S T A P P R O A C H T O T H E O R I G I N A L S O U N D...
- Page 2 Reccomended Wiring Scheme ............ 1 1 AND ASSISTANCE. CE Compliance: Limited Liability Statement ................... 1 2 QUAD Industrial assumes no liability whatsoever for any damage or loss, Product Specifications either direct or consequential arising from the installation and use of these products. Liability is limited to replacement of product or refund, at the Specifications ................ 1 3 QUAD Industrial’s discretion. Your rights to compensation may vary by ter- Contact Information: ritory; consult with your local QUAD Industrial office or distributor. QUAD Industrial Contact Information ......BACK COVER Warranty & Service These products are designed to be used as specified, and are warranted to be free from defects in materials or workmanship. Warranty terms and con- ditions vary by territory. Please contact your local QUAD Industrial sales office or distributor for complete details. Under no circumstances should you attempt to repair these products. Doing so may limit or void warranty coverage.

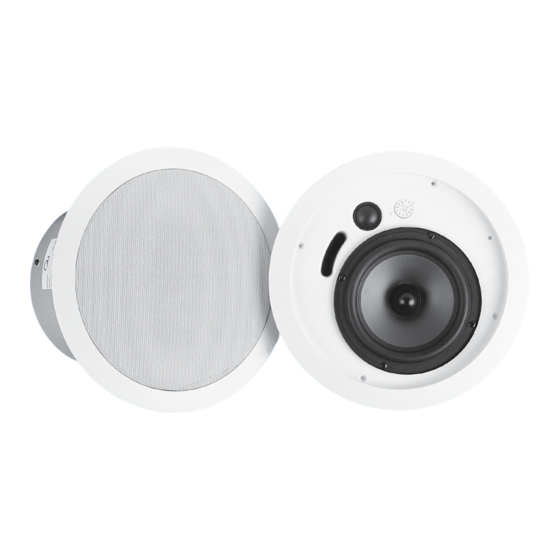

- Page 3 PR O DUCT DE S CR IPT IO N Concourse C8 The Concourse C8 is a two-way ceiling mounted speaker system The Concourse C series are two-way, high performance ceiling consisting of an 8" dual voice coil cone low frequency driver and mounted speaker systems designed for distributed music, paging a 1"...
- Page 4 PR O DUC T FE AT U R E S All models include the following components: • Speaker assembly (2) • Cover grille with restraint (2) • Split C ring backing plate (2) • Support Rails (4) • Plastic paint cover (2) •...
- Page 5 PR O DUCT DE S CR IPT IO N Concourse C models are complete assemblies ready for installation into both suspended tile INPUT TERMINALS ceilings and hard ceilings. A rear mounted termi- BACKBOX nal box allows termination of the speaker wiring IMPEDANCE SELECT SWITCH to the speaker as well as impedance selection (except C4T and C4-16).
- Page 6 Concourse C4, C4-8, C4-16, C4-T Concourse C6 295mm/11.61” 252mm/9.92” 212mm/10.04” 212mm/8.35” Concourse C8 Concourse CSUB 371mm/14.6” 333mm/13.11” 331mm/13.03” 293mm/11.54”...
- Page 7 IN S TAL L AT IO N Su s p e nd ed T i l e C eil in g s STEP 3 Step 1 Carefully unpack the contents of the box and ensure that all parts are accounted for before beginning installation. Step Remove the tile from the ceiling and place it on a suitable work surface to cut the hole and assemble the speaker.
- Page 8 Step STEP 9 Remove the screws holding the terminal cover plate and then remove any knock outs needed to connect the speaker wiring. Step 8 Select the appropriate impedance using the push-button switch inside the terminal box if the speaker is part of a low impedance system (except C4T and C4-16).
- Page 9 IN S TAL L AT IO N Har d Ce i l i ngs STEP 3 CEILING NOTE: Installation into a hard ceiling requires that you first ensure that the location is suitable and that there are no obstacles behind the ceiling material. Use EXTREME CAUTION when cutting into hard ceilings to avoid severing electrical wiring, heating ducts or water pipes.
- Page 10 Step STEP 7 Lift the speaker into the opening, then using a screwdriver tighten each of the four mounting screws in sequence. Turning the screws in a clockwise direction will cause the mounting clamps to rotate into position then extend down to clamp the assembly to the ceiling.
- Page 11 WIR I NG & CO N N E C T I ON S Ensure that all wiring is installed in compliance with local laws, codes and convention. Obtain all necessary permits and approv- als and use only cable that is approved for the application and is sized to safely accommodate the load.
- Page 12 Connect multiple speakers in parallel ensuring that the effective speaker load is compatible with the minimum load impedance of the connected power amplifier. CO M PL IA NCE This product is in compliance with CE directives and bears the CE mark. For detailed information on specific directives please contact your local QUAD Industrial sales office or distributor.
- Page 13 S P EC IF ICATIO NS ( C 4 / C 6 / C 8 / C SU B / C 4 / 1 6 ) Power Handling: C4 MODELS CSUB C4-16 Continuous 100W Program 100W 150W 200W Peak 100W 200W 300W 400W...
- Page 14 F O R T H E C L O S E S T A P P R O A C H T O T H E O R I G I N A L S O U N D © 2006 QUAD Industrial. QUAD Industrial is a member of the International Audio Group. IAG America Inc. 8440 154th Avenue NE · Redmond, WA 98052...
