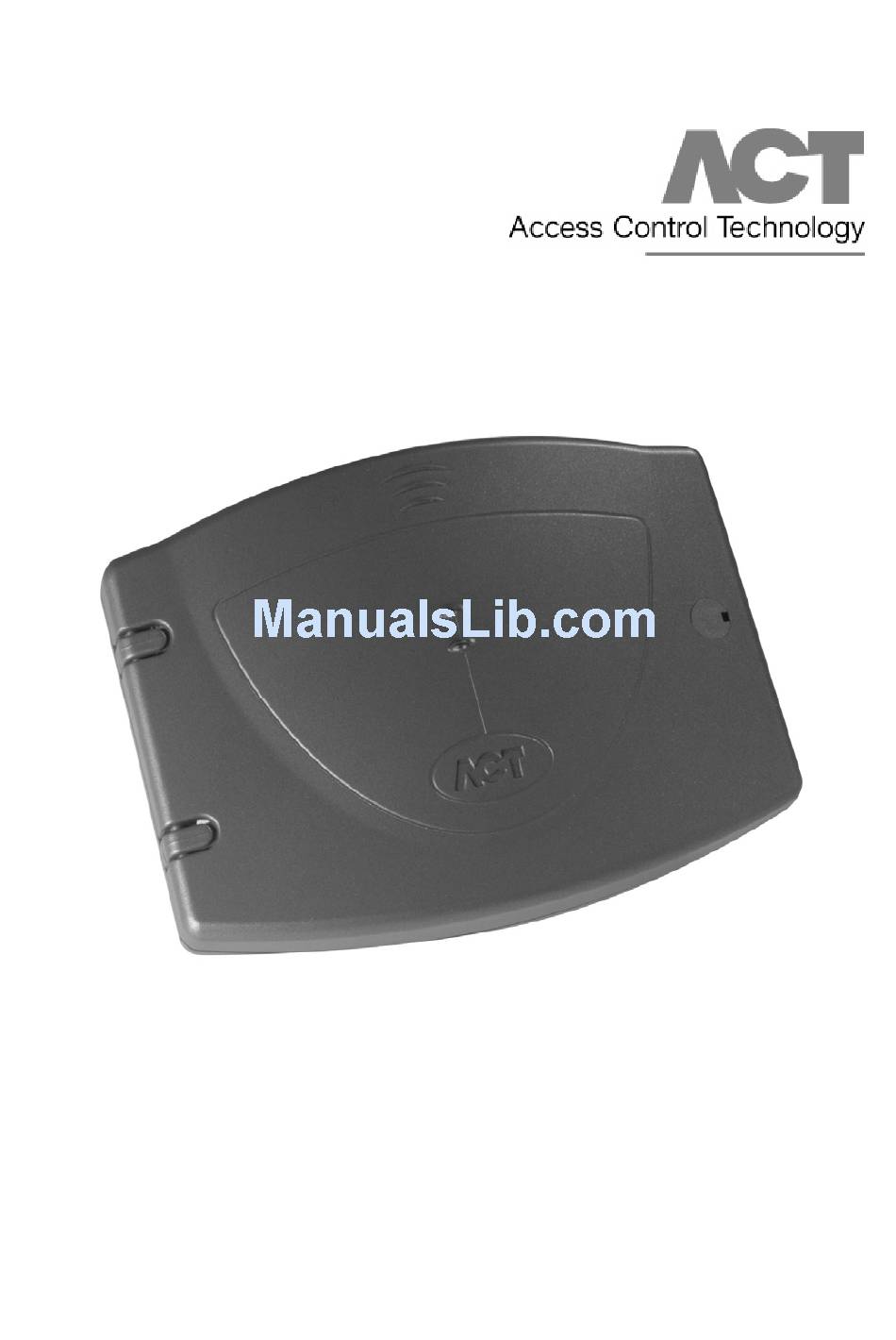

ACTpro IOM
INPUT/OUTPUT
MODULE
Installation and Configuration
Instructions for the
ACTpro IOM Input/Output Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTPRO IOM and is the answer not in the manual?

Questions and answers

Summary of Contents for ACT ACTPRO IOM

  • Page 1 ACTpro IOM INPUT/OUTPUT MODULE Installation and Configuration Instructions for the ACTpro IOM Input/Output Module...
  • Page 2: Table Of Contents

    CONTENTS Technical Specification....................1 Product Overview ......................1 Features.........................1 ACTWinPro Support....................1 Applications ........................2 Installation ........................3 Enabling IOM communications from the keypad............3 Configuration .......................4 Step 1 .........................4 Step 2.........................4 Step 3 .........................5 Elevator Control......................6 Step 1 .........................6 Step 2.........................6 Step 3 .........................6 Step 4 .........................7 Step 5 .........................7 Step 6 .........................8...
  • Page 3: Technical Specification

    Technical Specification Voltage 12V DC Current Consumption 250mA Communications RS485 to ACT2000/ACT3000 Operating Temperature -10ºC to +50ºC Mounting Surface Installation Indoors Weight 375g Dimensions 190mm/137mm/58mm Construction Polycarbonate housing Product Overview This product is an 8 Input/8 Output device that allows the ACT3000 and ACT2000 to be used in applications where signalling to other equipment is required.
  • Page 4: Applications

    ACTPro IOM ver 1.0 Applications Elevator control In this application, a user presents a card to the proximity reader when he enters the cab. This enables the buttons for the floors the user has access to. The buttons stay on for a programmable amount of time (normally 5 seconds) and then switch off.
  • Page 5: Installation

    ACTPro IOM ver 1.0 Installation Please see the diagram on the last page for complete wiring. The IOM Input/Output module is wired to the controller on the same RS-485 network as the DS100 Door stations. The IOMs are addressed using the DIP switches on the PCB.
  • Page 6: Configuration

    ACTPro IOM ver 1.0 Configuration All IOM Input/Output Module configurations are performed via ACTWinPro. Step 1 The IOM configuration is available from the Database drop-down menu. Click on the New icon to generate a new IOM input/output module in the database.
  • Page 7: Step 3

    The Options section allows the input to Logged as it changes state, to be Normally On or to act as an Elevator Floor. The Timer value selects how long the relay fires for. By selecting a timezone from the Active Timezone drop-down box, the relay can be made activate during this timezone.
  • Page 8: Elevator Control

    ACTPro IOM ver 1.0 Elevator Control Elevator control is one particular application of the IOM ACTWinPro allows programming of users, permitting them access to different floors in an elevator lift shaft at different times. The outputs on the IOM are wired into an elevator controller. Up to 32 floors maybe controlled from a single ACT3000/2000.
  • Page 9 ACTPro IOM ver 1.0 Step 4 The next step is to create an Elevator Group. Follow the procedure as before by selecting Elevator Group from the Database drop-down menu and clicking the New icon. Assign the Floor Access Rights by selecting the floor group and the timezone when access is allowed.
  • Page 10: Step 6

    ACTPro IOM ver 1.0 A User Group must be created and the Elevator group assigned. This means that any user with this user group is allowed access to the floors assigned in the Elevator Group. Step 6 Finally a Door must be assigned to a Floor Group. This would be the Door that has the reader attached in the Elevator Cab.
  • Page 11 ACTPRO IOM IO Module Installation Installation of an IO Module requires the following (1) Wiring Inputs and Outputs. (2) Providing 12V Power. (3) Wiring IO Module A,B and 0V RS485 signals to the Controller. Upto 4 IO Modules maybe connected a single ACT3000/2000 (4) Setting the IO Module address Controller.
