ACTpro IOM
Product Overview
This is an 8 Input and 8 Output device that allows
an ACT controller to be used in applications where
signalling to other equipment is required. Examples
of this are elevator control, alarm systems, CCTV
switching applications, I/O Mapping etc.
Main Features
8 form C 5 Amp relays
●
8 supervised inputs
●
Tamper protection
●
2 status LEDs
●
Polycarbonate housing
●
Input and output names
●
Timer for each output
●
Output switched off or on by log
●
event, input, timezone
ACTWin pro support
●
Inputs and outputs Logged
●
Normally open/closed
●
Inputs monitored by timezone
●
Supervised Inputs option
●
Installation / Specification Guidelines
Up to 4 ACTpro IOMs may be connected
●
to each ACT controller bus, giving control
of up to 32 inputs and 32 outputs for each
controller
The controllers may be networked via RS485
●
or TCP/IP to control up to 1000 inputs and
1000 outputs maximum
The device may be installed indoors only
●
and requires +12V DC
Input / Output Module
LAN / Ethernet
3000
100
200
8
IOM
8
ACTpro IOM
3000
100 100
200 200
8
IOM
8
IOM
ACTpro IOM module requires a 12 volts DC supply

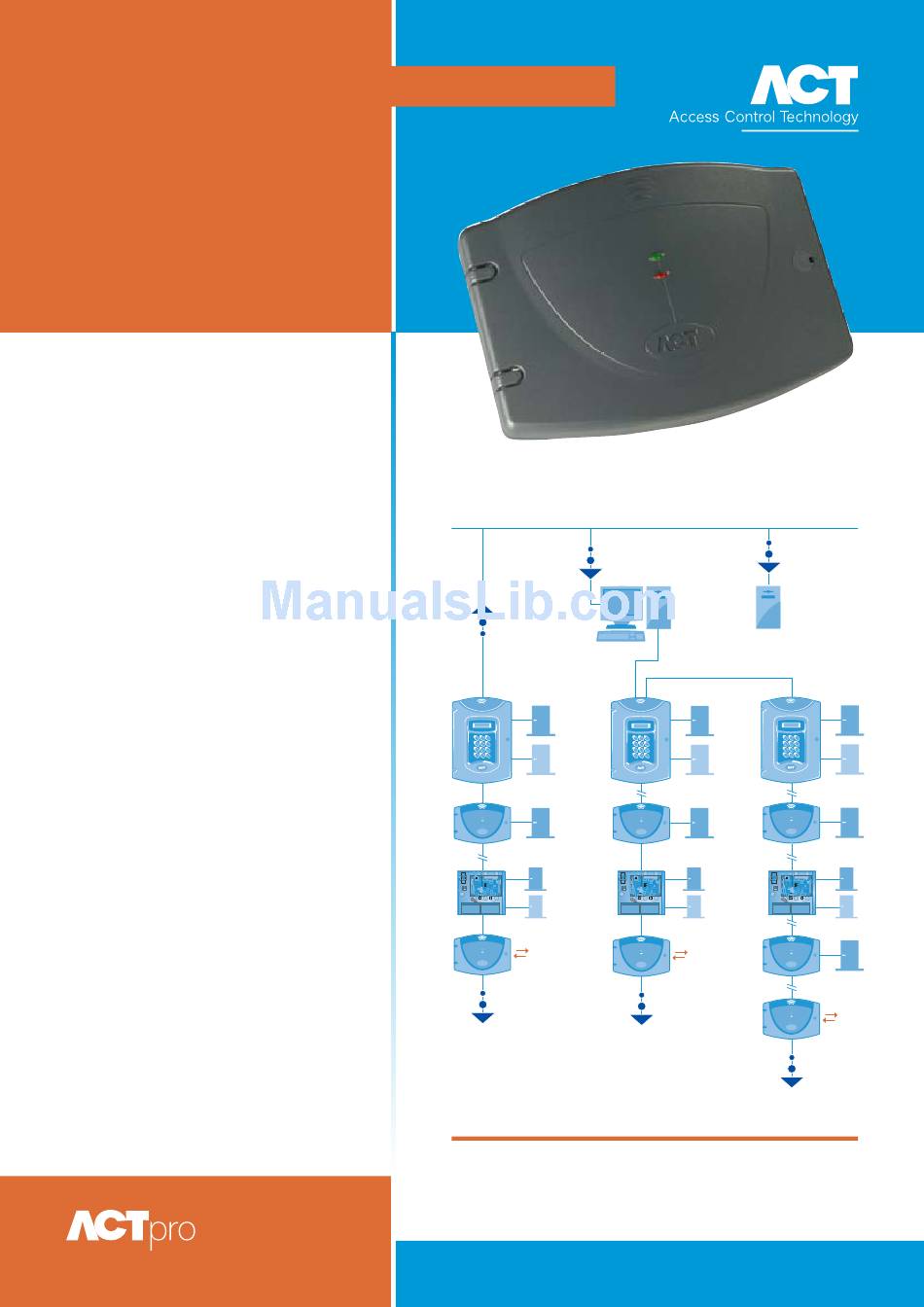

ACTpro IOM System Schematic
Database
Server
2000
8
8
