ACT ACT1030 VRC Installation Instructions

Self-tapping Security screw
1. Connect the ACT1030 Proximity reader to the
controller with the aid of the wiring diagram
supplied
2. Remove the plastic caps from the ACT1030 and
position the reader in the mounting location.

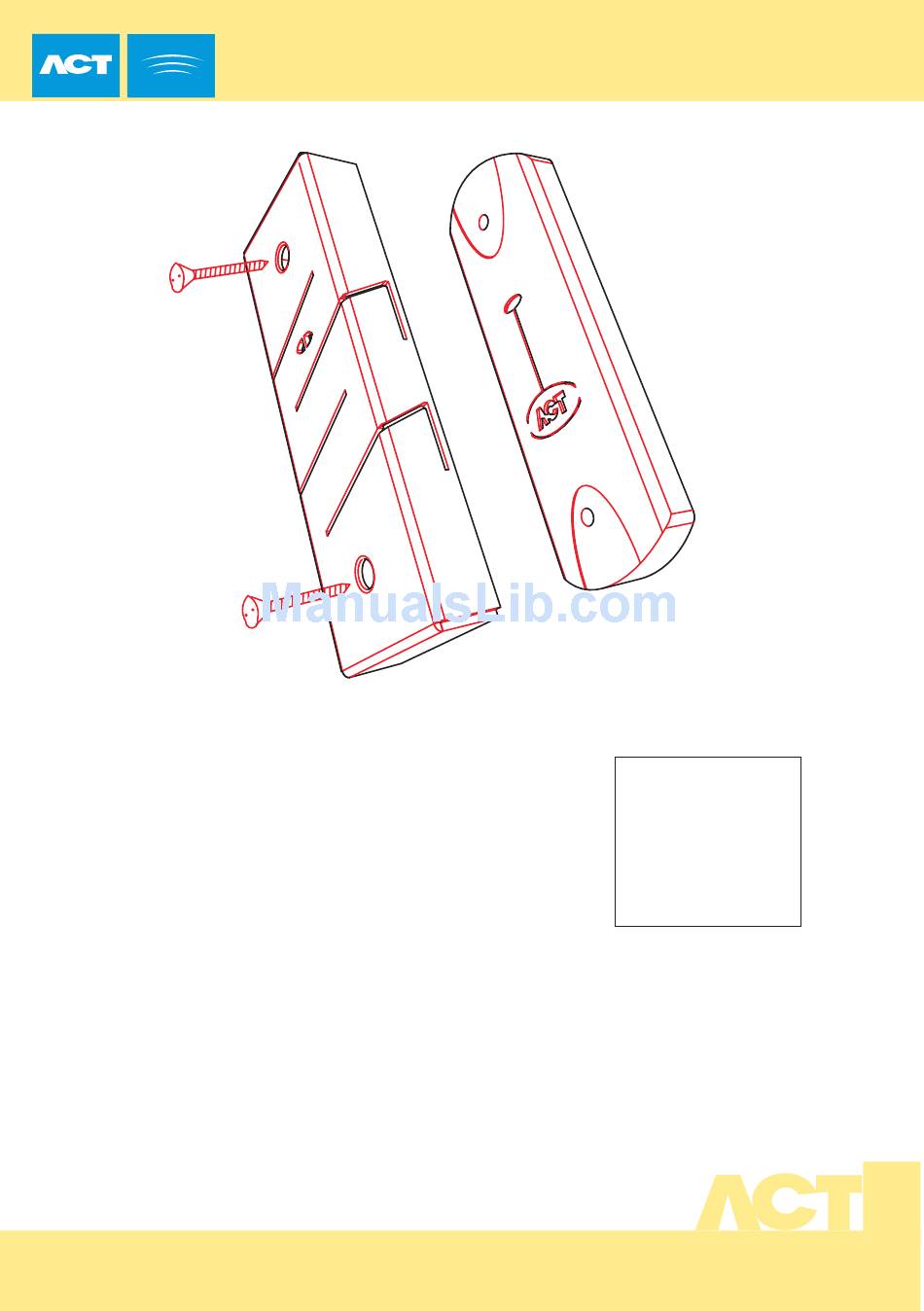

3. Place the ACT1030 VRC over the ACT1030 reader
and using the self-tapping security screws and
security driver bit supplied, fix the cover and reader
in place.
U nit 8 Tallaght B usiness Centre, W hitestown, Tallaght, Dublin 24, Ireland.
Telephone: 353 1 462 2585. Telefax: 353 1 462 2587. E-mail: sales@ accesscontrol.ie W eb: www.accesscontrol.ie
Installation instructions for the
ACT1030 VRC
ACT1030 VRC
ACT1030 Proximity
Reader
Wiring for Clock and Data / Wiegand Reader
White Sense
Green Clock / Data1
Blue Data / Data 0
Red +5v
Black 0v
Brown Red Led
Yellow Grn Led
Orange (Buzzer Ctrl)
The standard wiring colours for
ACT1030 Proximity reader is
shown above. Readers should
be a maximum of 30m from the
controller when powered from +5V
and a maximum of 100m when
powered from +12V.
