Page 1 smart2 ACTsmart2 Product Range Operating and Installation Instructions...
Page 2: Table Of Contents
ACTsmart2 Operating and Installation Manual Rev. 2 Contents ORDERING INFORMATION ........................ 4 INSTALLATION NOTES ........................5 IMPORTANT ............................5 PRODUCT SPECIFICATION ....................... 5 30 SECOND PROGRAMMING GUIDE ....................6 ACTsmart2 Prox Only (1070) ....................6 ACTsmart2 Pin & Prox Only (1080) ..................7 ACTsmart2 Pin Only (1090) ......................
Page 3: Ordering Information
Deleting Batch Cards to the Network ..................21 Deleting Individual Card (Require Card Above) ..............21 Programming for Default IO ....................21 Programming the Door Relay Time ..................22 Programming for ACT Smart Lock ..................22 Default ACTsmart2 ........................22 DIAGRAMS ACTsmart2 Standalone Wiring Diagram .................23 ACTsmart2 Interlock and Fire Override Wiring Diagram ............24...
Page 4: Installation Notes
ACTsmart2 Operating and Installation Manual Rev. 2 Installation Notes • Remember to Factory Default the ACTsmart2 before programming • Remember to place the supplied varistor across the terminals of the door strike coil to protect the relay contacts • Don’t mount the ACTsmart2 Prox units near RF sources (Eg mobile phones, radio transmitters, computer monitors) or metal surfaces.
Page 5: 30 Second Programming Guide
ACTsmart2 Operating and Installation Manual Rev. 2 30 Second Programming Guide ACTsmart2 Prox Only (1070) (For typical Standalone System) 1. Choose Programming Card. Select any proximity card or fob as the programming card (it is recommended to use the lowest numbered card in the batch). The card will only be used for programming and cannot be used to gain access.
Page 6: Actsmart2 Pin & Prox Only (1080)
ACTsmart2 Operating and Installation Manual Rev. 2 30 Second Programming Guide ACTsmart2 Pin & Prox (1080) (For typical Standalone System) 1. Enter Programming Mode. Press button followed by the programming code (default is 9999) The LED will flash amber. 2. Add a Batch of Cards Press 10, then present the first card in the batch followed by the last card in the batch.
Page 7: Actsmart2 Pin Only (1090)
ACTsmart2 Operating and Installation Manual Rev. 2 30 Second Programming Guide ACTsmart2 PIN Only (1090) 1. Enter Programming Mode. Press button followed by the programming code (default is 9999) The LED will flash amber. 2. Add a PIN Code Press 12, and then enter a 4-digit PIN code. Press button to complete.
Page 8: Programming Summary
ACTsmart2 Operating and Installation Manual Rev. 2 Programming Summary Code Function Default Add Card Batch Delete Card Batch Add PIN Code Delete PIN Add Card and PIN Delete Card and PIN Add Card Batch using keypad Deleting a Card or Card and Pin using the keypad Add Random Card Set Door Relay Time 5 seconds...
Page 9: Actsmart2 Operation

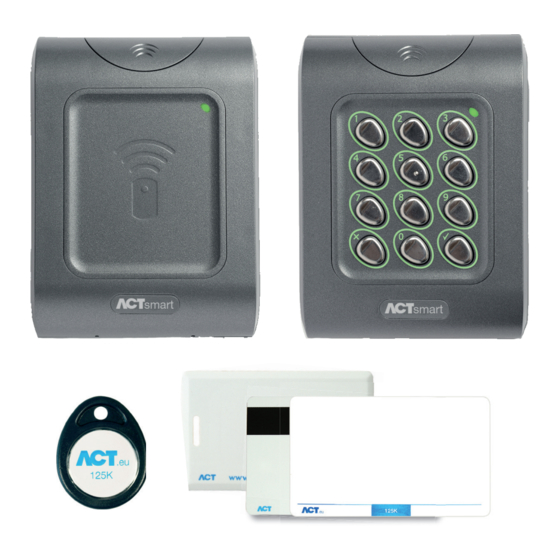

Rev. 2 ACTsmart2 Operation The ACTsmart2 family consists of Proximity Only (ACTsmart2 1070), Pin and Proximity (ACTsmart21080) and PIN Only (ACTsmart2 1090) units. Each ACTsmart2 can operate in standalone mode or up to 16 ACTsmart2 devices can be connected on a RS485 network.
Page 10: Adding A Card Batch
ACTsmart2 Operating and Installation Manual Rev. 2 Adding a Card Batch: Step Keypad Entry Operation Add Card Batch Present Card First card in Batch (lowest number card) Present Card Last Card in Batch (highest number card) Enter 1-8, (optional)* Select each door this batch enabled for End programming card batch - Press Note: the buzzer will sound while cards are loaded into memory.
Page 11: Adding A Card Batch Using The Keypad
ACTsmart2 Operating and Installation Manual Rev. 2 Adding a Card Batch using the keypad: Step Keypad Entry Operation Add Card Batch Enter 10-digit card number 10-digit First Card number with leading zeros. Eg. Card 54321 Present Card Last Card in Batch (highest number card) enter 0000054321.
Page 12: Change Programming Code
ACTsmart2 Operating and Installation Manual Rev. 2 Change Programming Code: Step Keypad Entry Operation Change Programming code - (default 9999) 0001-9999 New 4 - 6 digit programming code Change Number of PIN Digits: Step Keypad Entry Operation Change Number of PIN digits - (default 4) Select number of PIN digits in range 4 to 6.
Page 13: User Arm Function
ACTsmart2 Operating and Installation Manual Rev. 2 User Arm Function: A User with arming capability who presses the ✔ key and then presents a valid card or enters a valid PIN causes the reader to send a signal to an alarm control panel that may be used to arm/disarm the panel.
Page 14: Programming Actsmart2 Options
ACTsmart2 Operating and Installation Manual Rev. 2 Programming ACTsmart2 Options Step Keypad Entry Operation 30-45 Select Option Number 0 or 1 0 = Off, 1 = On 1-8, (optional)* Select each door this option is set for End setting options Press Option Function...
Page 15: Setting Programmable Input Function
ACTsmart2 Operating and Installation Manual Rev. 2 Setting Programmable Input Function: Step Keypad Entry Operation Set Input Function (Door Release button is default) Select 2-digit I/O Function Code (see below for explanation 00-06 of codes) 1-8 (optional)* Select each door this function is valid for End programming Input Function Press Setting AUX I/O 1 Function:...
Page 16: Quick I/O Setup
ACTsmart2 Operating and Installation Manual Rev. 2 Setting AUX I/O 2 Function: Code Function Operation This output toggles when a user with the armed function presses the key and Door Armed then presents a valid card or PIN. This can be used to arm or disarm an alarm panel.
Page 17: Adding A Card Batch For Second Door
ACTsmart2 Operating and Installation Manual Rev. 2 Adding a Card Batch for Second Door: Step Keypad Entry Operation Add Card Batch for Second Door (I/O function code 12 must be set for the Aux O/P) Present Card First card in Batch (lowest number card) Present Card Last Card in Batch (highest number card) Enter 1-8, (optional)*...
Page 18: Programming A Network System
ACTsmart2 Operating and Installation Manual Rev. 2 Programming a Network System Up to 8 ACTsmart2 devices can be connected on the network. See the ACTsmart2 Network Installation diagram to complete the necessary connections. Programming Door Numbers To allow some users through a door and prevent access to other users, each ACTsmart2 on the network must be given a door number (1-8).
Page 19: Find Door Number
ACTsmart2 Operating and Installation Manual Rev. 2 Find Door Number: Step Keypad Entry Operation Find Door Numbers Enter the door number to be found. The ACTsmart2 assigned the door number starts to beep. Press a key or present a card To stop the ACTsmart2 beeping.
Page 20: Programming Actsmart2 Prox Only (1070)
/surface mount collar to close tamper. (Note: ACT recommends using an ACTsmart2 PIN and Prox device (1080) if a network is required). In the steps below, after a card is presented to the reader it must be taken away from the reader (more than 20cm) for 1 second before presenting the card again.
Page 21: Programming The Door Relay Time
ACTsmart2 Operating and Installation Manual Rev. 2 Programming the Door Relay Time: Step Present Operation Programming Card Programming Card Programming Card Wait for 4 seconds, Buzzer sounds indicating timing... wait Programming Card required period. Programming Card Buzzer stops - timer set. Programming for SmartLock: Step Present...
Page 25: Act Smart Lock Connection Diagram
The normally open door release button should be connected to the SmartLock. When the input is activated, the door will open for the Door Relay Time programmed into the ACTSmart. ACT recommends installing the SmartLock inside the Power Supply Unit. Some PSUs can accomodate the Smartlock directly, otherwise drill holes to suit the SmartLock, (5mm drill bit required).
Page 32: User List
ACTsmart2 Operating and Installation Manual Rev. 2 User List Doors User Name Card Number 1 1 2 3 4 5 6 7 8 Training is available for installers on all ACT products! Copyright © 2015 Access Control Technology Ltd.
Page 33 Tallaght, Dublin D24 PN28, Ireland United Kingdom Office Beehive Mill, Unit 2C, Jersey Street Manchester, M4 6JG, UK Ireland: +353 (0)1 466 2570 UK: +44 (0)161 236 9488 Email: info@act.eu sales@act.eu www.act.eu All ACT hardware is ISO9001 and CE certified by independent external certifiers.
