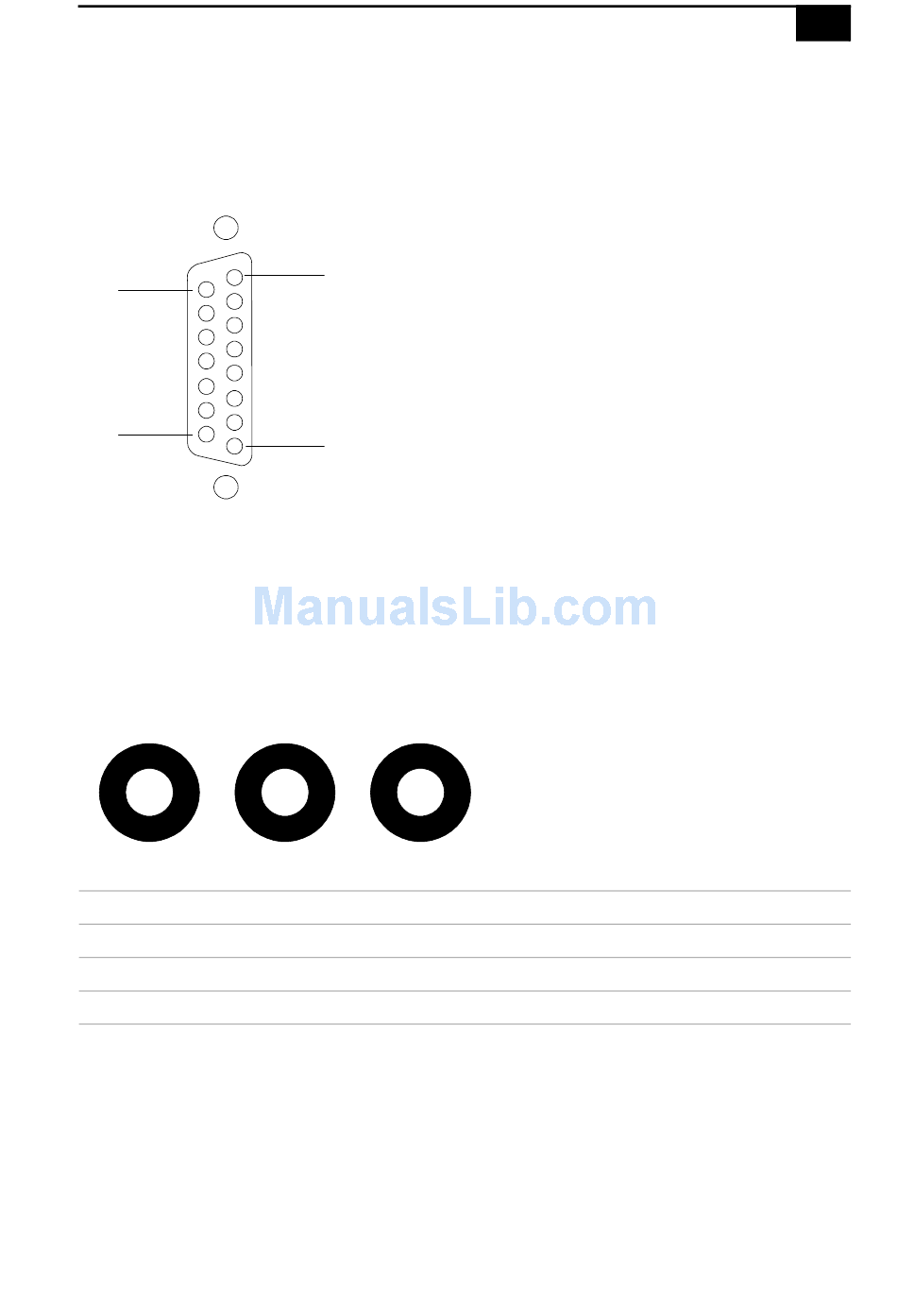

GAME Connector
The GAME connector is a standard 15-pin DB-15 female connector. The
GAME connector is also used to connect MIDI devices.
15
9
MIC, LINE IN, and HEADPHONES
The MIC, LINE IN, and HEADPHONES jacks are physically identical,
but have different connections. They are standard 3.5 mm stereo mini-
jacks.
HEADPHONES
Connector
HEADPHONES
MIC
LINE IN
8
1
LINE IN
MIC
Description
1.0 Vrms (typical).
Electret condenser microphone input.
1.0 Vrms (typical), 10 Kohm impedance.
Identifying Components
11
KY0012.VSD
KY0013.VSD
