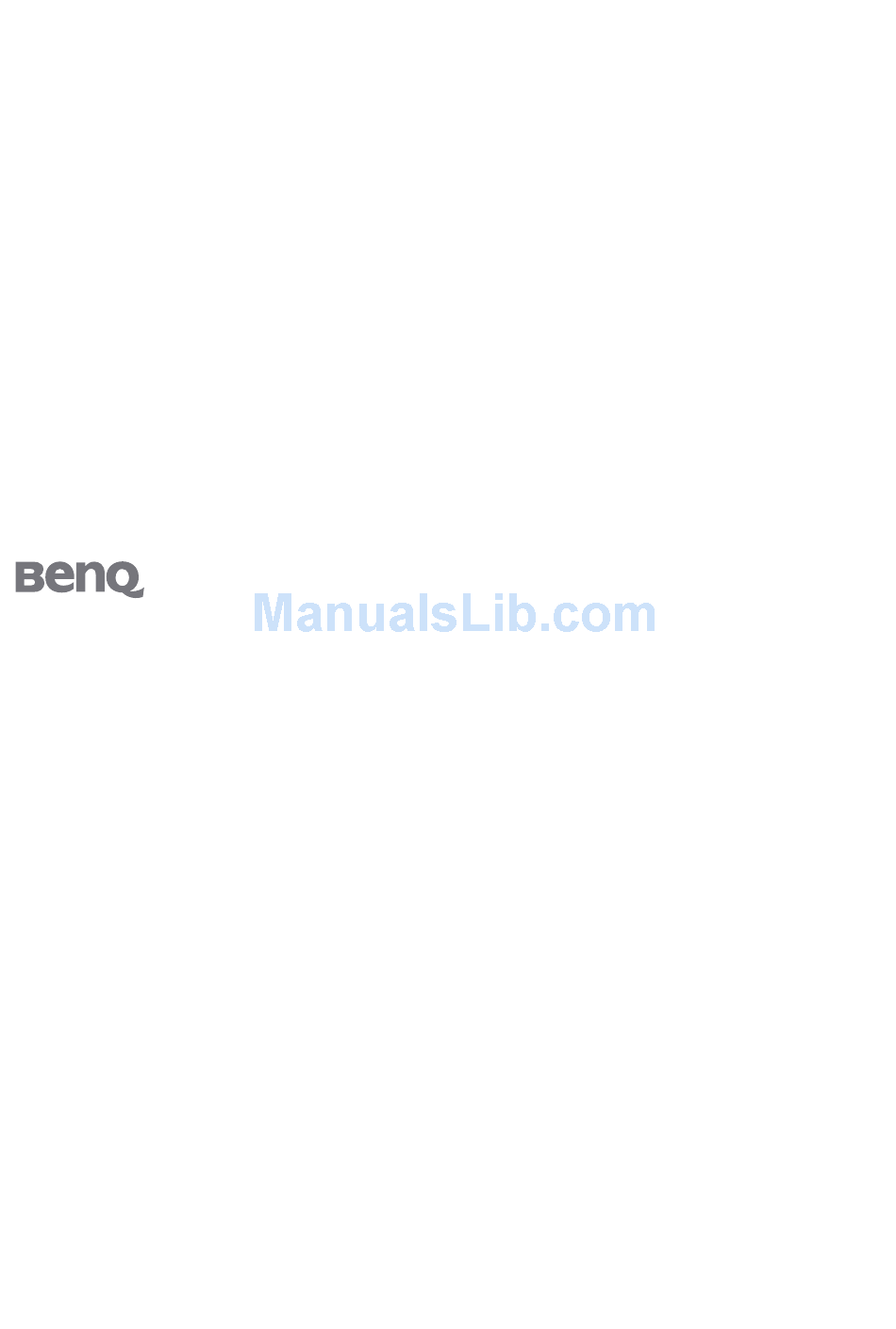

- Page 1 FP93VW 19" Wide-Screen LCD Monitor User Manual Welcome...
-
Page 2: Power Safety
Copyright Copyright © 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. -
Page 3: Table Of Contents
How to assemble your monitor hardware ................8 How to detach the stand base ...................11 Getting the most from your BenQ monitor ..............12 How to install the monitor on a new computer ............13 How to upgrade the monitor on an existing computer ..........14 How to install on Windows XP system ..............15... -
Page 4: Getting Started
1. Getting started Your FP93VW will provide the optimal display performance of the video resolution standard of 1440 x 900. Please ensure that your graphic card supports the resolution of 1440 x 900. When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. - Page 5 Signal Cable: DVI-D (optional) Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor. The fitted foam packing is ideal for protecting the monitor during transport. Getting started...
-
Page 6: Getting To Know Your Monitor
2. Getting to know your monitor Front view Back view 1. Power AC input jack 2. DVI-D input socket 3. D-Sub input socket Getting to know your monitor... -
Page 7: Right-Side View
Left-side view 1. Power 2. Enter / Brightness Contrast 5. Menu/Exit Getting to know your monitor... -
Page 8: How To Assemble Your Monitor Hardware
3. How to assemble your monitor hardware If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. 1. Attach the monitor base. Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like the monitor packaging bag on the desk for padding. - Page 9 2. Connect the PC video cable. Either Do not use both DVI-D cable and D-Sub cable on the same PC. The only case in which both cables can be used is if they are connected to two different PCs with appropriate video systems.
- Page 10 Turn on the computer too, and follow the instructions in Section 4: Getting the most from your BenQ monitor to install the monitor software. on page 12 How to assemble your monitor hardware...
-
Page 11: How To Detach The Stand Base
How to detach the stand base 1. Prepare the monitor and area. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. -
Page 12: Getting The Most From Your Benq Monitor
4. Getting the most from your BenQ monitor To gain the most benefit from your new BenQ color LCD flat screen monitor, you should set the graphics card to the native resolution of 1440 x 900 at first, and then you may start to install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM. -
Page 13: How To Install The Monitor On A New Computer
BenQ LCD Monitor is the first ever monitor to be connected to it. If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions. -
Page 14: How To Upgrade The Monitor On An Existing Computer
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems. -
Page 15: How To Install On Windows Xp System
The Monitor Properties window will display. If the driver provider is listed as BenQ, and the model matches that of your new monitor, the proper drivers are already installed, and you need do nothing further. Cancel out of these property windows. -
Page 16: How To Install On Windows 2000 System
The Monitor Properties window will display. 4. In Windows 2000, click the Driver tab and the Update Driver button. The Upgrade Device Driver Wizard will display. How to complete the Windows Upgrade Device Driver Wizard on page Getting the most from your BenQ monitor... -
Page 17: How To Complete The Windows Upgrade Device Driver Wizard
The contents of the ‘Driver’ folder will display. 7. Click the Open button. This will return you to the Install from Disk window, and it will have entered the address to the BenQ LCD Monitor CD ‘Driver’ folder into the field titled ‘Copy manufacturer’s files from:’ . -
Page 18: How To Adjust The Screen Resolution
Due to the nature of liquid crystal display (LCD) technology, the picture resolution is always fixed. The best possible picture for your FP93VW is achieved with a resolution of 1440 x 900. This is called “Native Resolution” or maximal resolution – that is, the clearest picture. Lower resolutions are displayed on a full screen through an interpolation circuit. -
Page 19: How To Adjust The Screen Refresh Rate
6. How to adjust the screen refresh rate You don’t have to choose the highest possible refresh rate on an LCD display, because it is not technically possible for an LCD display to flicker. The best results are obtained by using the factory modes already set in your computer. -
Page 20: Picture Optimization
If you wish, you can always adjust the screen geometric settings manually using geometry menu items. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display. -
Page 21: How To Adjust Your Monitor
8. How to adjust your monitor The control pane 1. “Power”: Turn the power on or off. 2. “Enter” key: Enter sub menus and select items. The key is also the hot key for Input. (Up) key: For Up/Increase adjustment. The key is also the hot key for Brightness. (Down) key: For Down/Decrease adjustment. -
Page 22: On Screen Display (Osd) Menu Structure
On Screen Display (OSD) menu structure Auto Adjustment DISPLAY H. Position V. Position Pixel Clock Phase Normal Brightness Bluish Green PICTURE Contrast Reddish Blue Sharpness MAC STD. Color User Mode Reset Color English French German Italian Spanish Input D-sub Polish/Japanese SYSTEM Czech/Traditional OSD Settings... -
Page 23: Hot Key Mode
Hot key mode The monitor keys perform as hotkeys to provide direct access to particular functions whenever the menu isn't currently displaying on-screen. Brightness hot key Press the key to display the Brightness indicator. Further press the key to increase or the key to decrease the screen brightness, and press the Menu/Exit key to leave. -
Page 24: Main Menu Mode
Main menu mode You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor. Press the Menu/Exit key to display the following main OSD menu. There are three main OSD menus: 1. DISPLAY 2. PICTURE 3. - Page 25 DISPLAY menu 1. Press the Menu/Exit key to display the main menu. 2. Press the keys to select DISPLAY and then press the Enter key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the Enter key to select that item.
- Page 26 Adjusts the horizontal H. Position position of the screen 0 to 100 image. Adjusts the vertical posi- V. Position 0 to 100 tion of the screen image. Adjusts the pixel clock fre- quency timing to synchro- nize with the analog input video signal.
- Page 27 PICTURE menu 1. Press the Menu/Exit key to display the main menu. 2. Press the keys to select PICTURE and then press the Enter key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the Enter key to select that item.
- Page 28 Allows video and still pho- tographs to be viewed with Normal natural coloring. This is the factory default color. Applies a cool tint to the image and is factory Bluish pre-set to the PC industry standard white color. Press the keys to Applies a warm tint to the select this option.
- Page 29 SYSTEM menu 1. Press the Menu/Exit key to display the main menu. 2. Press the keys to select SYSTEM and then press the Enter key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the Enter key to select that item.
- Page 30 0 to 100 Adjusts the horizontal H. Position position of the OSD menu. 0 to 100 Adjusts the vertical posi- V. Position tion of the OSD menu. • 5 sec. Press the keys to • 10 sec. adjust the value. •...
-
Page 31: Troubleshooting
9. Troubleshooting Frequently asked questions (FAQ) The image is blurred: Read the section, and then select the correct How to adjust the screen resolution on page 18 resolution, refresh rate and make adjustments based on these instructions. How do you use a VGA extension cable? Remove the extension cable for the test. -
Page 32: Need More Help
How to adjust the screen resolution on page 18 resolution, refresh rate and make adjustments based on these instructions. Need more help? If your problems remain after checking this manual, please contact your place of purchase or e-mail us at: Support@BenQ.com Troubleshooting... -
Page 33: Supported Pc Timings
10. Supported PC Timings Incoming display mode (Input timing) Resolution Horizontal Vertical Pixel Comment Frequency (KHz) Frequency (Hz) Frequency (MHz) 640 x 350 31.47 70.08 25.17 720 x 400 31.47 70.08 28.32 640 x 480 31.47 60.00 25.18 640 x 480 35.00 67.00 30.24... -
Page 34: Specifications
11. Specifications Model FP93VW Display type 19.0”, active, TFT Viewable diagonal 480 mm Native (maximum) resolution 1,440 x 900 Colors 16.2 million Contrast / Brightness 700:1 / 300 cd/m Response time 5 ms Viewing angle (left/right, up/down) 150, 140 (CR=10) - Page 35 Operating voltage Automatic switched mode power supply, 100-240 V, 50-60 Hz Dimensions (H x W x D) 404.4 x 453 x 249.79 mm Weight 6.05 kg Specifications...
