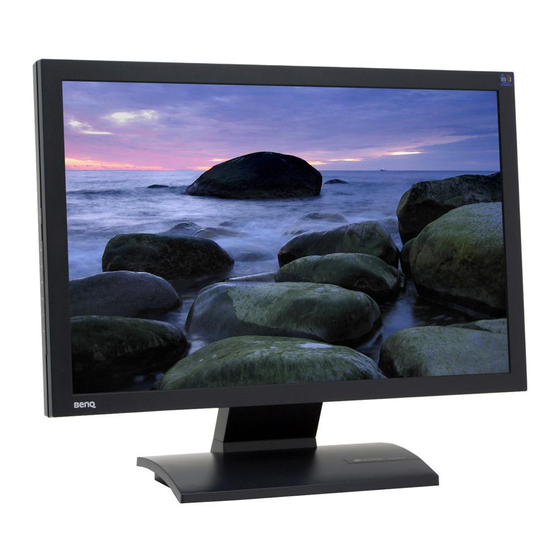

22" wide-screen lcd monitor

Advertisement

FP222W H
22" Wide-Screen LCD Monitor
User Manual
Welcome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP222WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BenQ FP222WH

  • Page 1 FP222W H 22" Wide-Screen LCD Monitor User Manual Welcome...
  • Page 2: Power Safety

    Copyright Copyright © 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
  • Page 3: Table Of Contents

    How to detach the stand base ...................11 How to use the monitor wall mounting kit .............12 Getting the most from your BenQ monitor ..............14 To install the monitor on a new computer ..............15 To upgrade the monitor on an existing computer ..........16 How to install on Windows Vista system ..............17...
  • Page 4: Getting Started

    1680 x 1050. Please ensure that your graphic card supports the resolution of 1680 x 1050. When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. BenQ LCD Monitor Quick Start Guide CD-ROM...
  • Page 5 Signal Cable: DVI-D (optional) Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor. The fitted foam packing is ideal for protecting the monitor during transport. Getting started...
  • Page 6: Getting To Know Your Monitor

    2. Getting to know your monitor Front view Back view 1. Power AC input jack 2. HDMI* input socket 3. DVI-D input socket 4. D-Sub input socket *HDMI, short for High Definition Multimedia Interface, is the first industry-supported, uncompressed, all-digital audio/video interface between audio/video sources and audio and/or video monitors. Being different from other connectors, an HDMI connector can carry both video and audio signals via the same cable and transfer uncompressed digital audio and video for the highest image quality.
  • Page 7: Left-Side View

    Left-side view 1. Power 2. Enter / Brightness Contrast 5. MENU 6. Mode 7. Input Getting to know your monitor...
  • Page 8: How To Assemble Your Monitor Hardware

    3. How to assemble your monitor hardware If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. 1. Attach the monitor base. Please be careful to prevent damage to the monitor.
  • Page 9 2. Connect the PC video cable. Either Do not use both DVI-D cable and D-Sub cable on the same PC. The only case in which both cables can be used is if they are connected to two different PCs with appropriate video systems.
  • Page 10 Turn on the computer too, and follow the instructions in Section 4: Getting the most from your BenQ monitor to install the monitor software. on page 14 How to assemble your monitor hardware...
  • Page 11: How To Detach The Stand Base

    How to detach the stand base 1. Prepare the monitor and area. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty.
  • Page 12: How To Use The Monitor Wall Mounting Kit

    How to use the monitor wall mounting kit The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the installation of a wall mount bracket. Before starting to install a monitor wall mounting kit, please read the precautions carefully.
  • Page 13 3. Remove the rear cover. Slide the rear cover back toward you to remove it. The screw plate at the back of the monitor could be revealed. 4. Follow the instruction manuals of the wall mount bracket you purchased to complete the installation. How to assemble your monitor hardware...
  • Page 14: Getting The Most From Your Benq Monitor

    4. Getting the most from your BenQ monitor To gain the most benefit from your new BenQ color LCD flat screen monitor, you should set the graphics card to the native resolution of 1680 x 1050 at first, and then you may start to install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.
  • Page 15: To Install The Monitor On A New Computer

    BenQ LCD Monitor is the first ever monitor to be connected to it. If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions.
  • Page 16: To Upgrade The Monitor On An Existing Computer

    The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems.
  • Page 17: How To Install On Windows Vista System

    7. In the Update Driver Software window, select the option ‘Browse my computer for driver software’ . 8. Click ‘Browse’ and select Driver > Windows Vista > FP222WH from the CD, and click the Next button. This will copy and install the appropriate monitor driver files to your computer.
  • Page 18: How To Install On Windows Xp System

    The Monitor Properties window will display. If the driver provider is listed as BenQ, and the model matches that of your new monitor, the proper drivers are already installed, and you need do nothing further. Cancel out of these property windows.
  • Page 19: How To Adjust The Screen Resolution

    5. How to adjust the screen resolution Due to the nature of liquid crystal display (LCD) technology, the picture resolution is always fixed. The best possible picture for your FP222W H is achieved with a resolution of 1680 x 1050. This is called “Native Resolution”...
  • Page 20: How To Adjust The Screen Refresh Rate

    6. How to adjust the screen refresh rate You don’t have to choose the highest possible refresh rate on an LCD display, because it is not technically possible for an LCD display to flicker. The best results are obtained by using the factory modes already set in your computer.
  • Page 21: Picture Optimization

    If you wish, you can always adjust the screen geometric settings manually using geometry menu items. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display.
  • Page 22: How To Adjust Your Monitor

    8. How to adjust your monitor The control panel 1. “Power”: Turn the power on or off. 2. “ENTER” key: Enter sub menus and select items. (Up) key: For Up/Increase adjustment. The key is also the hot key for Brightness. (Down) key: For Down/Decrease adjustment.
  • Page 23: On Screen Display (Osd) Menu Structure

    On Screen Display (OSD) menu structure Auto Adjustment DISPLAY H. Position V. Position Pixel Clock Phase Brightness Normal Green PICTURE Contrast Bluish Blue Sharpness Reddish Color User Mode Reset Color PICTURE Picture Mode Standard ADVANCED Senseye Demo Movie Dynamics Photo English French German...
  • Page 24: Hot Key Mode

    Hot key mode The monitor keys perform as hotkeys to provide direct access to particular functions whenever the menu isn't currently displaying on-screen. Brightness hot key Press the key to display the Brightness indicator. Further press the key to increase or the key to decrease the screen brightness, and press the MENU key to exit.
  • Page 25: Main Menu Mode

    Main menu mode You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor. Press the MENU key to display the following main OSD menu. There are four main OSD menus: 1. Display 2. Picture 3.
  • Page 26 Display menu 1. Press the MENU key to display the main menu. 2. Press the keys to select DISPLAY and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
  • Page 27 H. Position Adjusts the horizontal 0 to 100 position of the screen image. V. Position Adjusts the vertical 0 to 100 position of the screen image. Pixel Clock Adjusts the pixel clock 0 to 100 frequency timing to synchronize with the analog input video signal.
  • Page 28 Picture menu 1. Press the MENU key to display the main menu. 2. Press the keys to select PICTURE and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
  • Page 29 User Mode Tailors the image color • Red Press the keys and (0 to 100) tint. The blend of the Red, the ENTER key to select Green and Blue primary Red, Green, or Blue. Then • Green colors can be altered to (0 to 100) use the keys to...
  • Page 30 Picture Advanced menu 1. Press the MENU key to display the main menu. 2. Press the keys to select PICTURE ADVANCED and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
  • Page 31 System menu 1. Press the MENU key to display the main menu. 2. Press the keys to select SYSTEM and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
  • Page 32 V. Position Adjusts the vertical 0 to 100 Press the keys to position of the OSD menu. change the settings. Display Time Adjusts the display time of • 5 sec. Press the keys to the OSD menu. change the settings. •...
  • Page 33: Troubleshooting

    9. Troubleshooting Frequently asked questions (FAQ) The image is blurred: Read the section, and then select the correct How to adjust the screen resolution on page 19 resolution, refresh rate and make adjustments based on these instructions. How do you use a VGA extension cable? Remove the extension cable for the test.
  • Page 34: Need More Help

    “OFF” in the “OSD Lock” submenu from the “OSD Settings” menu (under SYSTEM), and all OSD controls will be accessible. Need more help? If your problems remain after checking this manual, please contact your place of purchase or e-mail us at: Support@BenQ.com Troubleshooting...
  • Page 35: Supported Pc Timings

    10. Supported PC Timings Incoming display mode (Input timing) Resolution Horizontal Vertical Pixel Comment Frequency (KHz) Frequency (Hz) Frequency (MHz) 640x350 31.47 70.08 25.17 720x400 31.47 70.08 28.32 640x480 31.47 60.00 25.18 640x480 35.00 67.00 30.24 Macintosh 640x480 37.86 72.80 31.50 VESA 640x480...
  • Page 36: Specifications

    11. Specifications Model FP222W H Display type 22.0”, active, TFT Viewable diagonal 558.68 mm Native (maximum) resolution 1,680 x 1,050 Colors 16.7 million Contrast / Brightness 700:1 / 300 cd/m Response time 5 ms Viewing angle (left/right, up/down) 170, 160 (CR>10) Line frequency 30 - 82 kHz Multi- frequency monitor Image frequency...
  • Page 37 Operating voltage Automatic switched mode power supply, 100-240 V, 50-60 Hz Dimensions (H x W x D) 422.45 x 518.26 x 169.57 mm Weight 5.8 kg *HDMI, short for High Definition Multimedia Interface, is the first industry-supported, uncompressed, all-digital audio/video interface between audio/video sources and audio and/or video monitors. Being different from other connectors, an HDMI connector can carry both video and audio signals via the same cable and transfer uncompressed digital audio and video for the highest image quality.
