Congratulations on your purchase of a
high-quality Insignia product. Your DVD and
CD+G Karaoke Player/Recorder is designed
for reliable and trouble-free performance.
Use this guide for initial setup. See your User
Guide for more information.
Package contents
• DVD and CD+G Karaoke Player/Recorder
• Remote
• Microphone
• AC/DC Adaptor
• A/V cable (RCA type)
• User Guide
• Quick Setup Guide
Top
CD compartment
OPEN tab

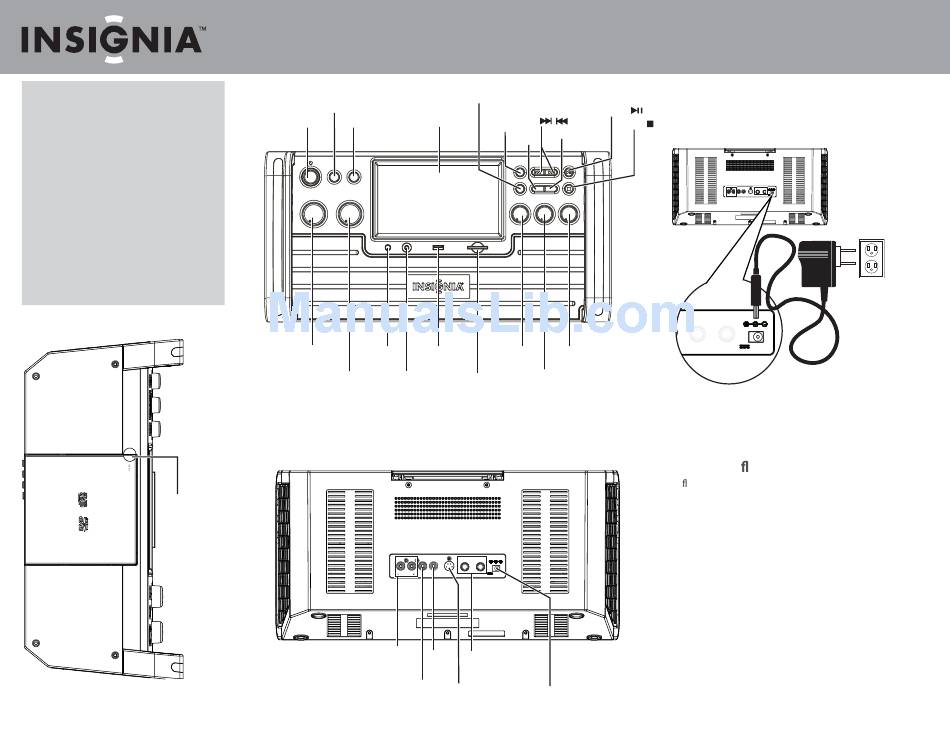

Features
Front
DVD/LINE IN
POWER
DVD/USB/SD
Display Screen
DV D/L INE IN
DV D/USB /SD
MIC VO LUM E
MA STE R V OL UM E
MIN
MA X
MIN
MA X
RE MO TE
LIN E IN
SEN SO R
MIC VOLUME
REMOTE
SENSOR
MASTER VOLUME
LINE IN
Back
R
L
VIDEO OUT
AUDI O OU T
AUDIO OUT jack
(R) and (L)
VIDEO OUT
jack
DVD and CD+G Karaoke Player/Recorder NS-KP04
EQ
PLAY/PAUSE
SCREEN
SKIP
ON/OFF
REPEAT
RECORD
SC RE EN ON /OF F
SK IP
PLA Y/PA US E
EQ
RE CO RD RE PEA T
STO P
EC HO
BA LAN CE
AV C
MIN
MA X
L
R
MIN
MA X
US B
SD
R
L
USB
ECHO
AVC
AUDI O OU T
BALANCE
SD card slot
MIC1
MIC2
-
COAXI AL
S-VID EO
DC IN 12V
COAXIAL
MIC 1 & MIC 2 jack
jack
S-VIDEO
DC IN jack
jack
Quick Setup Guide
Connecting the
AC/DC Adaptor
Insert the DC plug into the DC IN jack on the back of your
STOP
karaoke system and plug the AC/DC adaptor into the
wall outlet.
MIC1
MIC2
-
R
L
AUDI O OU T
VIDEO OUT
COAXI AL
S-VID EO
DC IN 12V
MIC1
MIC2
-
DC IN 12V
VIDEO OUT
COAXI AL
S-VID EO
Playing a disc
1 Lift the OPEN tab on the top of your karaoke system to open the disc compartment.
2 Place a disc in the tray, then close the compartment cover.
3 Using remote, press DVD/USB/SD, ▲ or ▼to select DVD, then press ENTER.
Playing from a USB ash drive
1 Insert a USB ash drive into the USB port on the front of your karaoke system.
2 Using remote, press DVD/USB/SD, ▲ or ▼ to select USB, then press ENTER.
Playing from an SD memory card
1 Insert an SD memory card into the SD card slot on the front
of your karaoke system.
2 Using remote, press DVD/USB/SD, press ▲ or ▼ to select SD,
then press ENTER.
Adjusting the volume
• Rotate the MIC VOLUME knob to adjust the microphone volume.
• Rotate the MASTER VOLUME knob to adjust the overall volume.
Playing an external audio input device
1 Connect an audio cable to the LINE IN jack on the front of your karaoke
system and to the LINE OUT jack on the external device.
2 Press DVD/LINE IN to select the LINE IN mode.
