Summary of Contents for YURAKU YUR.BEAT DUO

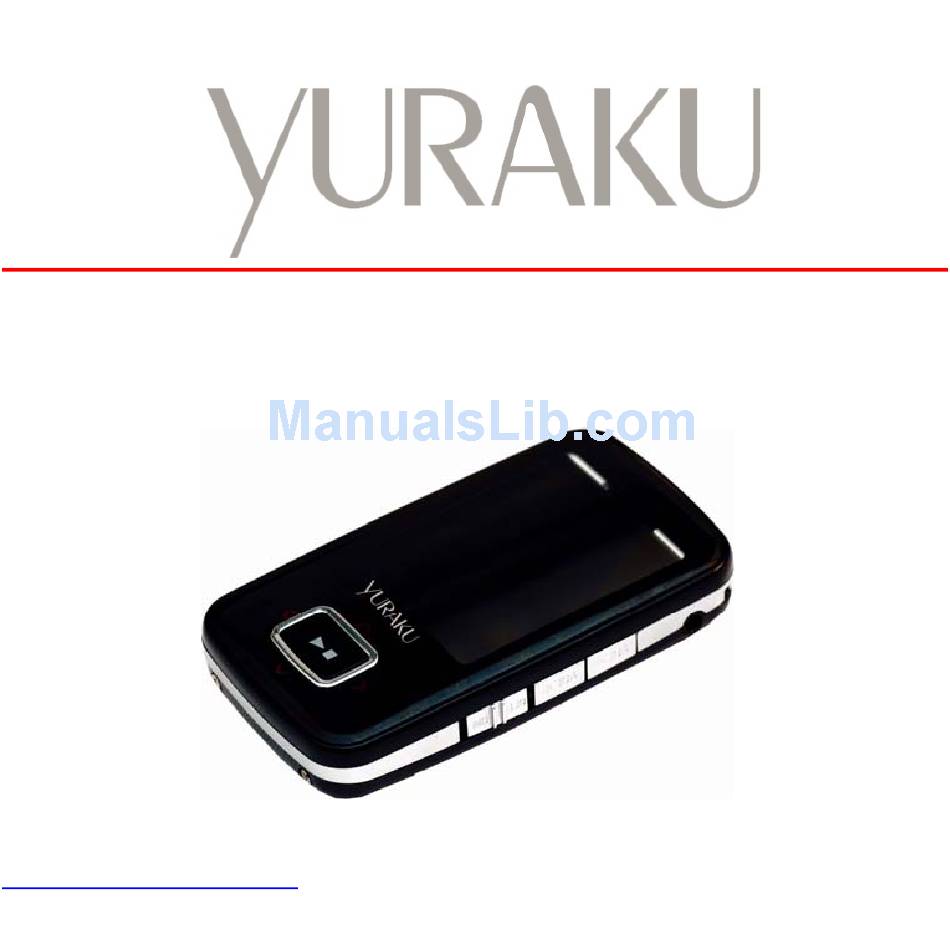

- Page 1 YUR.BEAT DUO INSTRUCTION MANUAL Version: 1.00 http://www.yuraku.com.sg...
-
Page 2: Connection Diagram
CONNECTION DIAGRAM Connect to the computer Earphones lanyard loop USB port or to an available USB Hub USB type A male plug 3.5mm stereo socket 2.5mm stereo connection Mini-USB interface USB extension cable Earphones... - Page 3 Declaration of Conformity EC-Declaration of Conformity to the essential requirements of the applicable EMC Directive 2004/108/EC We, Yuraku GmbH of Germany, declare under our sole responsibility as authorized representative that the following product Brand Name: Yuraku Model Name: YUR.BEAT DUO Model No.:...
-
Page 4: Safety And Information
Safety and Information • Do not violate or infringe the copyright law and other international copyright laws while using this player for recording. • The copyright law forbids unauthorized reproduction of copyrighted music for any other purpose other than self- entertainment without the author’s permission. - Page 5 Yur.Beat DUO Introduction Portable and chic, the Yuraku Yur.Beat Duo is your personal multimedia player for all occasions and any place. Watch movies, play digital music and do voice recording while traveling. The Yuraku Yur.Beat Duo spots the latest 1.8” TFT LCD screen, with 262k colours.
-
Page 6: Installation
Yur.Beat DUO Installation Turn the player off before connecting the player to the PC via the provided USB cable to upgrade firmware or copy music into the player. After connecting to your PC, the system will create a removable drive in “My Computer”... - Page 7 Yur.Beat DUO to F:\. . Another way is to hold the left button of the mouse on the files you wish to copy, and drag the files to the Removable Drive. To finish the copying process, release the button of your mouse.
- Page 8 Yur.Beat DUO Basic Functions Switching the player On/Off Turn on the Power Switch to ensure that there is power supply. Press the button once to switch the player ON - player is turned on when the LCD screen lights up with the backlight.
- Page 9 Yur.Beat DUO • Press the button to start playing the selected track • Press the button again to pause the music, press again to resume playing • Press the button and hold for 2 seconds to stop the music. • Press and hold the button to fast reverse the current music or press and hold button to fast forward the current music.
- Page 10 Yur.Beat DUO Exit • Press button to enter and operate. • RADIO option press the button to skip radio stations. • SCAN option start searching for radio broadcasting stations: Auto Scan the Channel Press and hole the button for 1 second to start scanning.
- Page 11 Yur.Beat DUO Operating in Video Mode In the main menu, press the MODE button to activate the VIDEO menu. • Press the button to select the VIDEO file you want to play. • Press the PLAY button to start playing the VIDEO •...
- Page 12 Yur.Beat DUO • Press MODE button once return to main menu. NOTE: You should set the location where you want to save your record file before recording starts. Refer to 2.6 for the steps. Operating in the System Set Mode In the main menu, press the MODE button to activate the SYSTEM menu.
- Page 13 Yur.Beat DUO Encoder (Where you want to place this recorded file) • Select EXIT to return to System menu NOTE: Recorded files will automatically follow this setting when you record. Switch settings to change. 6. Language Select the desired Language by pressing the button.
- Page 14 Yur.Beat DUO Install the Windows® 98/ SE Driver You are required to install the driver only if you are using the Windows® 98 operating system. The steps to install the driver are as follows: • Insert the driver CD into the CD-ROM •...
- Page 15 Yur.Beat DUO NOTE: • When uploading or downloading, never disconnect USB linkage. Otherwise, firmware may possibly be damaged and the player may not work normally. • Never disconnect the player from your PC until you are certain that the icon displayed on the LCD has stopped twinkling.
- Page 16 Yur.Beat DUO 6. After installation has been completed, the computer will prompt you to reboot. Reboot your computer as prompted. 7. If you wish to delete the player upgrade software, click start -> program files -> Sigmatel MSCN Audio Player Uninstall the software.
-
Page 17: Key Functions
Yur.Beat DUO Key Functions External View of Product and Features display Play / Pause Mini-USB port Previous / Mode / Next Lanyard loop Built-in Power s witch Vol + / - Speaker Earphones socket (2.5mm stereo) All specifications and information are subject to changes without further notice... - Page 18 Yur.Beat DUO Earphones socket 2 (3.5mm stereo) LCD display layout All specifications and information are subject to changes without further notice...
-
Page 19: Troubleshooting
Yur.Beat DUO Troubleshooting 1. There is no display when player is turned on Ans. Possible fault and remedy: Please use the adapter in the accessory fitting to charge the player. LED lights when it is being normally charged. Turn on the player again after 2 minutes. -
Page 20: Technical Specifications
Yur.Beat DUO Technical Specifications • 1.8” TFT LCD, 262K colour screen • 128 x 160 pixel resolution • USB 2.0 full speed compliant • MP3 / WMA / WAV digital music playback • Records MP3 / ADPCM (WAV) • Audio output power: 10mW + 10mW, 32 Ω... -
Page 21: Package Contents
Yur.Beat DUO Package Contents • Yur.Beat DUO • USB extension cable • 1 pair of earphones • CD-ROM for Windows® 98 SE and manual • Installation manual System Requirements • Intel® Pentium® III or later • 128MB of system RAM or more •...
