PARTS LIST
MP38 W/12"
MP38 W/12"
MP38 W/12"
MP38 W/12"
MP38 W/12"
MP38 W/14"
MP38 W/14"
MP38 W/14"
MP38 W/14"
MP38 W/14"
MP38i
MP38i
MP38i
MP38i
MP38i
UT05078
UT05079
UT05081
P/N PS02298

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS02298 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homelite PS02298

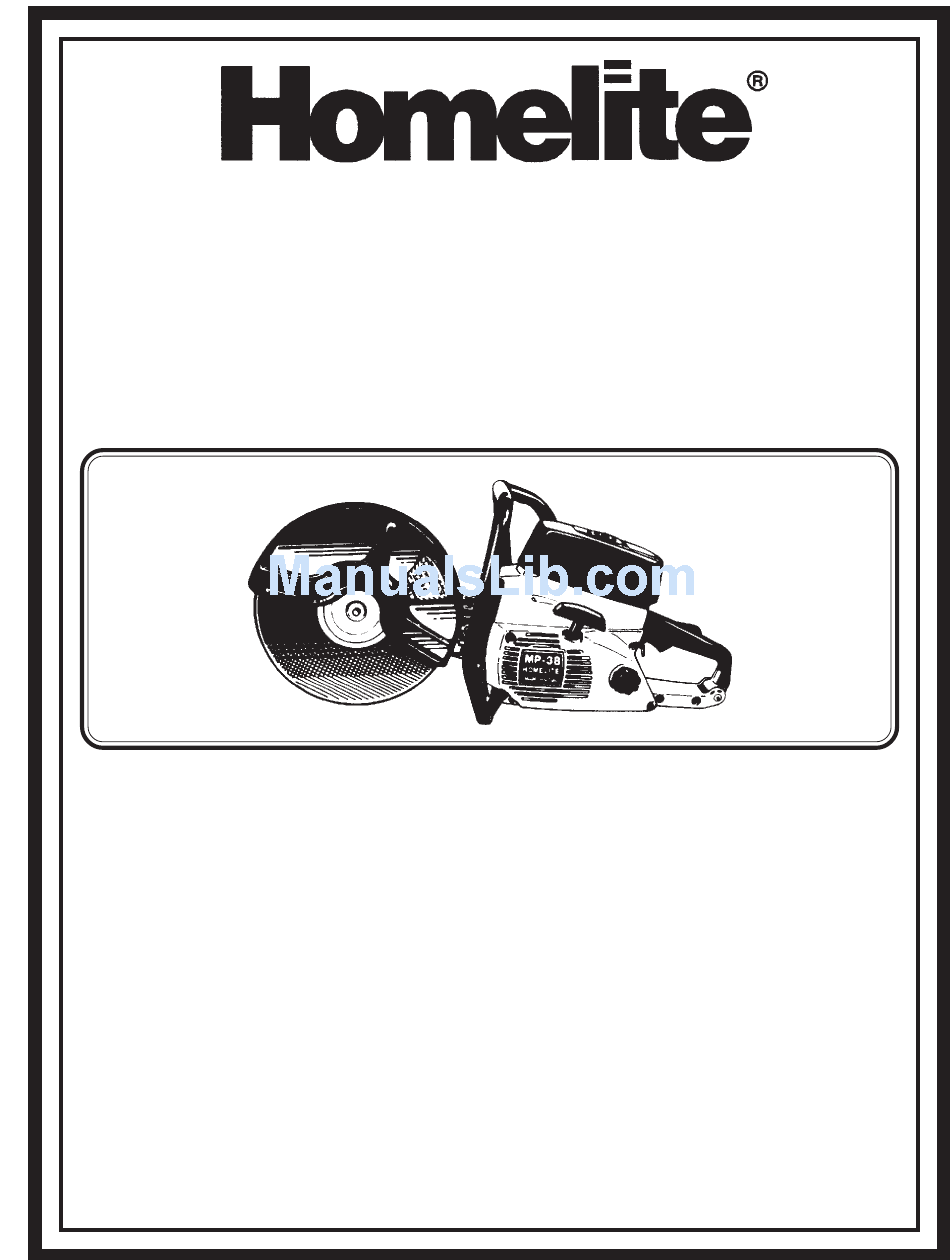

  • Page 1 PARTS LIST MP38 W/12" MP38 W/12" MP38 W/12" MP38 W/12" MP38 W/12" UT05078 MP38 W/14" MP38 W/14" MP38 W/14" UT05079 MP38 W/14" MP38 W/14" MP38i MP38i MP38i UT05081 MP38i MP38i P/N PS02298...
  • Page 2 STARTER-IGNITION Torque Specs Part No. Description Qty. Item In/Lbs Required Loctite • A 03884 A STARTER (Complete) 9 .... 225 ....25.4 A 69962 B GRIP-Starter (w/insert) 11 ..55 ....6.2 12 ..55 ....6.2 A 97908 SPRING & CONTAINER 16 ..
  • Page 3 ENGINE INTERNAL Torque Specs Part No. Description Qty. Item In/Lbs Required Loctite • A 03883 CRANKSHAFT 13 ..55 ....6.2 ..RED 262 98797 1 BEARING-Ball 16 ..85 ....9.6 ..RED 262 02151 A BEARING-Piston Pin 75078 KEY-Woodruff •...
  • Page 4: Air Cleaner

    AIR CLEANER Torque Specs Part No. Description Qty. Item In/Lbs Required Loctite 02307 PREFILTER-Felt 4 .... 40 ....4.5 02308 ELEMENT-Air Filter 9 .... 40 ....4.5 02309 1 COVER-Air Filter Element 15 ..Hand Tight .. --- ..BLUE 242 02330 NUT-Hex Conical 16 ..
  • Page 5: Spring-Clutch

    CLUTCH-EXHAUST SYSTEM Torque Specs Part No. Description Qty. Item In/Lbs Required Loctite 82253 SCREW-Machine Hex Hd. (8-32 X 3/8") 1 .... 55 ....6.2 ..BLUE 242 93628 COVER-Clutch 5 .... 400 ....45.2 ..RED 262 93638 A SPRING-Clutch 13 ..
  • Page 6: Ground Wire

    CARBURETOR-FUEL TANK Warranty Flat Rate Description Time/Hr. CF10 ... Carburetor Replace .....3 CF12 ... Fuel Line ........3 CF15 ... Replace Carb/Choke Linkage ..3 CF16 ... Fuel Tank ........4 CF17 ... Manifold ........5 Torque Specs Item In/Lbs Required Loctite...
  • Page 7 HANDLES Part No. Description Qty. 93367 ISOLATOR PIN 93368 A ISOLATOR-Vibration 02318 A HANDLE-Rear 68548 PIN-Trigger 02316 SPRING-Throttle Torque Specs 93385 A LOCK-Trigger Item In/Lbs Required A 03806 A TRIGGER & SWIVEL Loctite A 02315 CABLE-Throttle 58409 RING-Retaining 1 .... 60 ....6.8 ..ANTI SEIZE 13 ..
  • Page 8: Wheel Arm Assembly

    WHEEL ARM ASSEMBLY Warranty Flat Rate Description Time/Hr. CD35 .. Wheel Guard ....... .4 CD36 .. Pulley ..........3 CD37 .. Wheel Arm/Shaft ......5 CD38 .. Belt Guard ........3 CT10 ... Drive Belt ........3 Torque Specs Item In/Lbs Required Loctite...
  • Page 9: Additional Accessories

    WHEELS 12 INCH 14 INCH ABRASIVE WHEELS Part No. Arbor Size Part No. Arbor Size MEULES ABRASIVES RUEDAS ABRASIVAS Masonry and Concrete 64596 C 1" 49559 A 1" 43230 B 7/8" 49765 A 20 mm Pour béton et maçonnerie 49826 20 mm Mampostería y hormigón Metal...
  • Page 10 NOTES...
  • Page 11 NOTES...
  • Page 12 TOOLS Part No. Combination Wrench (1/2, 3/4, & Screwdriver) ..........19188 Clé mixte (1/2, 3/4 et tournevis) Lave de tuercas de combinación (1/2, 3/4 y destornillador) 1/2 Wrench ......................03000 Clé 1/2 Llave de tuerca de 1/2” Puller Rotor ......................A 17106 B Rotor tracteur Rotor extractor John Deere Consumer Products, Inc.
